DWVO 12x16ft Gazebo Assembly Guide
A comprehensive assembly guide for the DWVO 12x16ft Gazebo. This manual covers tool requirements, step-by-step installation procedures, safety precautions, and warranty information.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This gazebo requires 4-5 people for safe assembly. Ensure you have a flat, level surface and do not attempt assembly in windy or wet conditions. Essential tools include safety gloves, a power drill, and a step ladder. The assembly process involves 19 distinct steps, ranging from frame construction to roof panel installation and curtain attachment.
Assembly preparation
Before starting, verify that all parts listed in the manual are present in the cartons. The package arrives in 5 separate boxes, which may be delivered at different times. Keep all small parts like screws in a bowl to prevent loss. Ensure there are no hidden pipes or cables in the ground before inserting any pegs.
Step-by-step installation
The installation is divided into several phases:
- Frame Assembly: Start by connecting the main frame components (A, B, C, D series) using the provided screws (M6x16). Ensure the frame is square and level.
- Top Frame & Roof Structure: Assemble the top frame and roof support beams. This provides the structure for the roof panels.

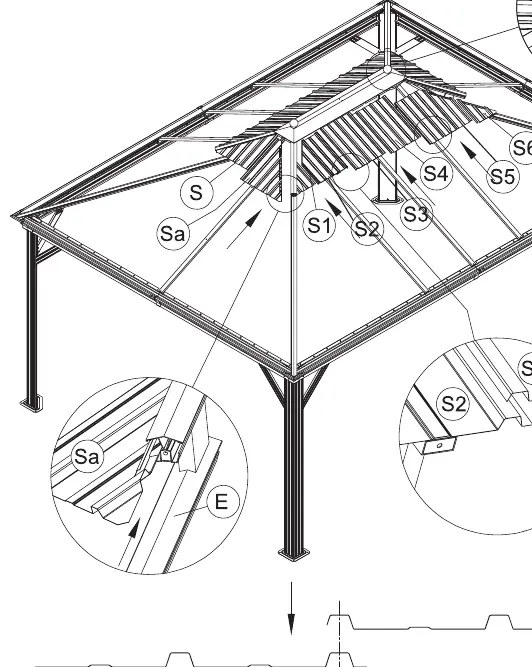

- Roof Panel Installation: Carefully insert the roof panels into the grooves. This step requires precision to ensure a waterproof fit.

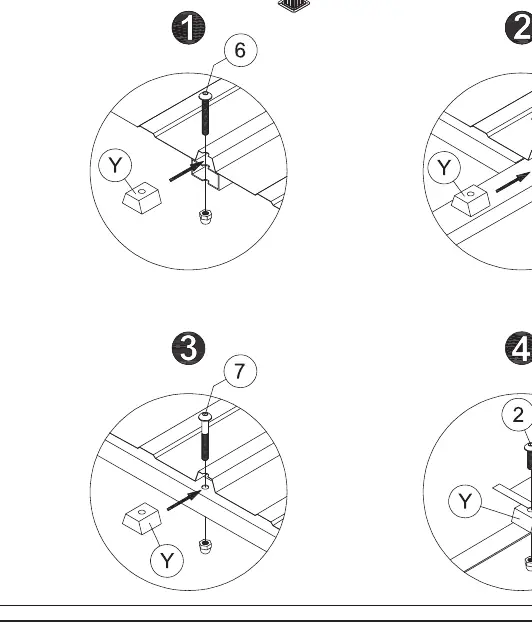

- Waterproof Plugs: Install the waterproof plugs (Y) after placing each roof panel to ensure weather resistance.
- Curtains & Netting: Attach the hooks (U) and curtains (T) to the frame once the structure is secure.
Safety and maintenance
Follow these safety guidelines during and after assembly:
- Always wear safety gloves and goggles when working with extruded aluminum.
- Do not touch overhead power cables with the aluminum profiles.
- Do not lean against or push the gazebo during construction.
- Keep children away from the assembly area.
- Do not store hot items like grills or blowtorches inside the gazebo.
- Keep the roof clear of snow and leaves.
- Do not climb or stand on the gazebo.
Warranty and contact
The product includes a 5-year warranty on the hardtop roof, 2 years on the curtain and netting, and 1 year on the frame constructions. Lifetime technical service support is provided. For defects or missing parts, contact customer service via email at [email protected] or through the Amazon "Ask a question" feature.
Manufacturer information
DWVO
Practical help
Common problems
Missing parts or defects
Contact customer service via email at [email protected] or through Amazon messages.
Assembly difficulty
The structure requires 4-5 people to assemble safely. Do not attempt to assemble alone.
Unstable or unsafe structure
Ensure the gazebo is positioned and fixed on a flat, level surface. Do not assemble in windy or wet conditions.
Before use
- Verify all parts against the manual list.
- Ensure 4-5 people are available for assembly.
- Prepare a flat, level surface.
- Wear safety gloves and goggles.
- Check for hidden pipes or cables in the ground.
- Have a power drill and step ladder ready.
Specs in practice
- Roof Warranty
- 5 years coverage on the hardtop roof.
- Curtain/Netting Warranty
- 2 years coverage.
- Frame Warranty
- 1 year coverage.
Images and diagrams
- Steps -: Frame and corner post assembly.
- Steps -: Top frame and roof support structure.
- Steps -: Roof panel insertion into the frame grooves.
- Steps -: Final assembly and installation of waterproof plugs.
Model compatibility
- Not for use with high-power electric tools without caution.
- Keep roof clear of snow and leaves.
- Do not store hot items like grills inside.
