Assembly Instructions for Ebern Designs Modular Sofa
Step-by-step assembly guide for the Ebern Designs modular sofa, including instructions for single seats, ottomans, corner seats, double seats, consoles, and the pull-out bed mechanism.
Quick answers from the manual
Quick answer
- This manual provides assembly instructions for various modules of the modular sofa, including single seats, ottomans, corner seats, double seats, consoles, and pet cages. It also details how to operate the pull-out bed mechanism. p. 3, 4, 16
Key actions
- Install sofa feet p. 4, 5, 6, 7
- Attach backrests p. 4, 7, 8
- Connect modules p. 16
Where to find it in the PDF
- Parts List p. 2, 3
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly instructions for various modules of the Ebern Designs modular sofa system. It covers parts identification, step-by-step assembly for different configurations, and instructions for operating the pull-out bed mechanism. Before beginning, ensure you have all parts listed in the manual and a clear space for assembly.

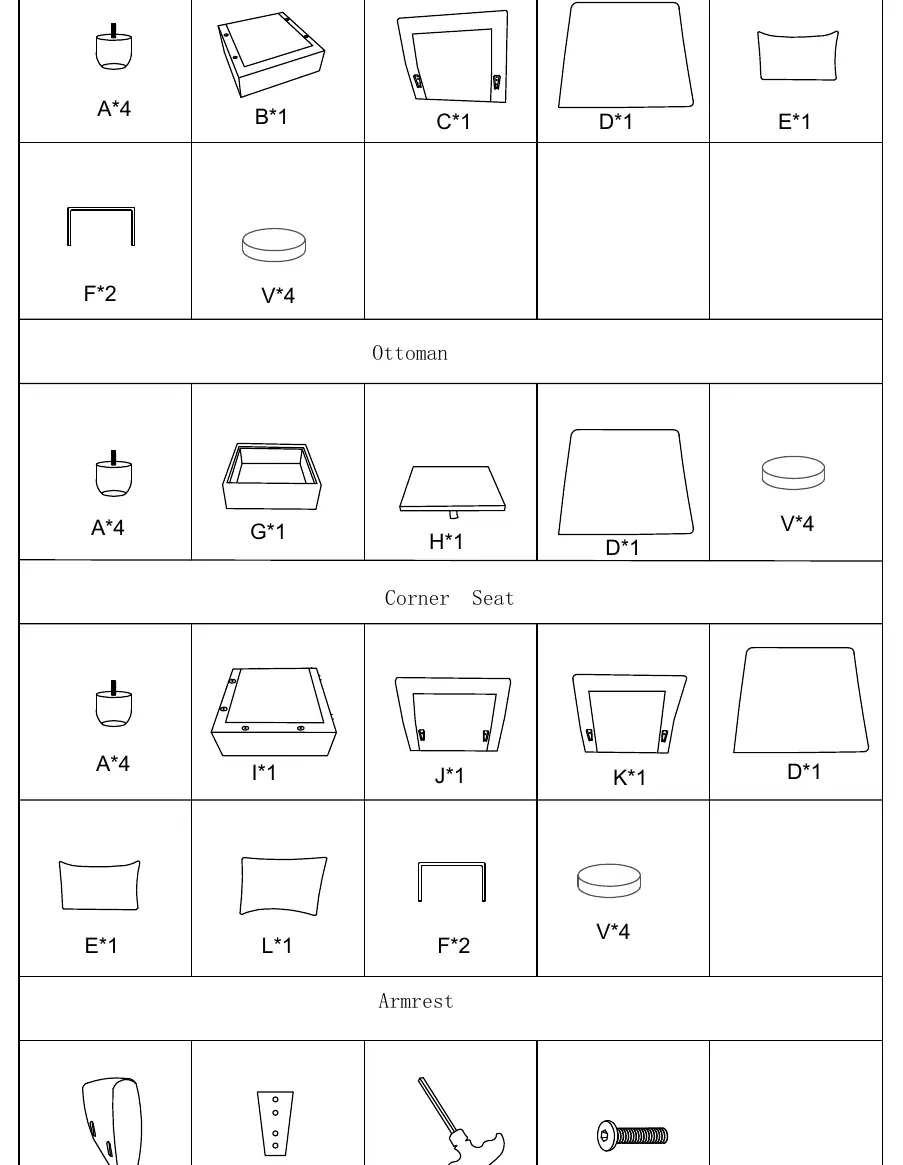

Parts Identification
The sofa system consists of various components labeled A through V. Before starting, verify that you have all necessary parts for your specific module, including sofa feet (A), seat bases (B, G, I, Q, S, T), backrests (C, K, R), cushions (D, E), and hardware (F, N, O, P, V).
Assembly Instructions
The assembly process varies depending on the module. General steps include:

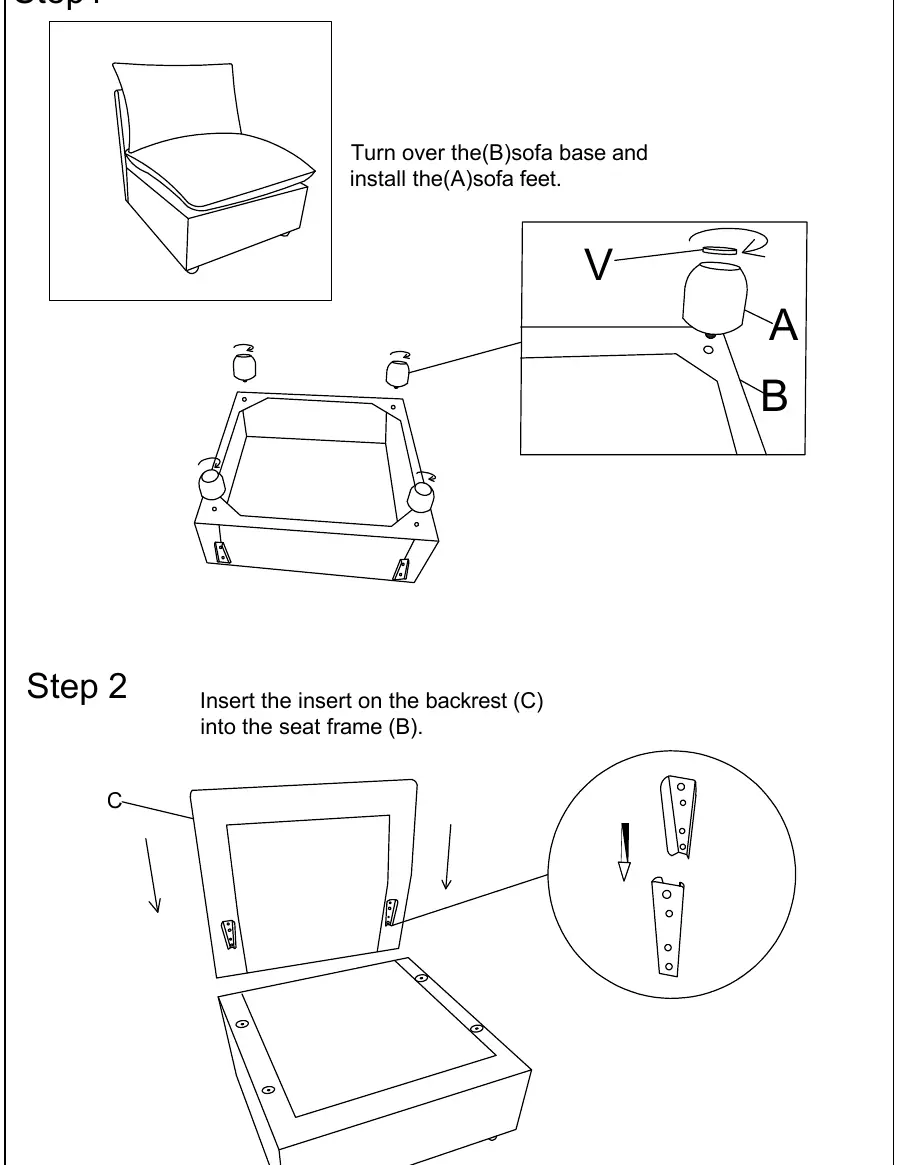

- Installing Feet: Turn the sofa base over and install the sofa feet (A) using the provided hardware (V).
- Attaching Backrests: Insert the backrest (C, K, R) into the seat frame.
- Attaching Armrests: Secure armrests (M) to the seat frame using bolts (O) and inserts (N).

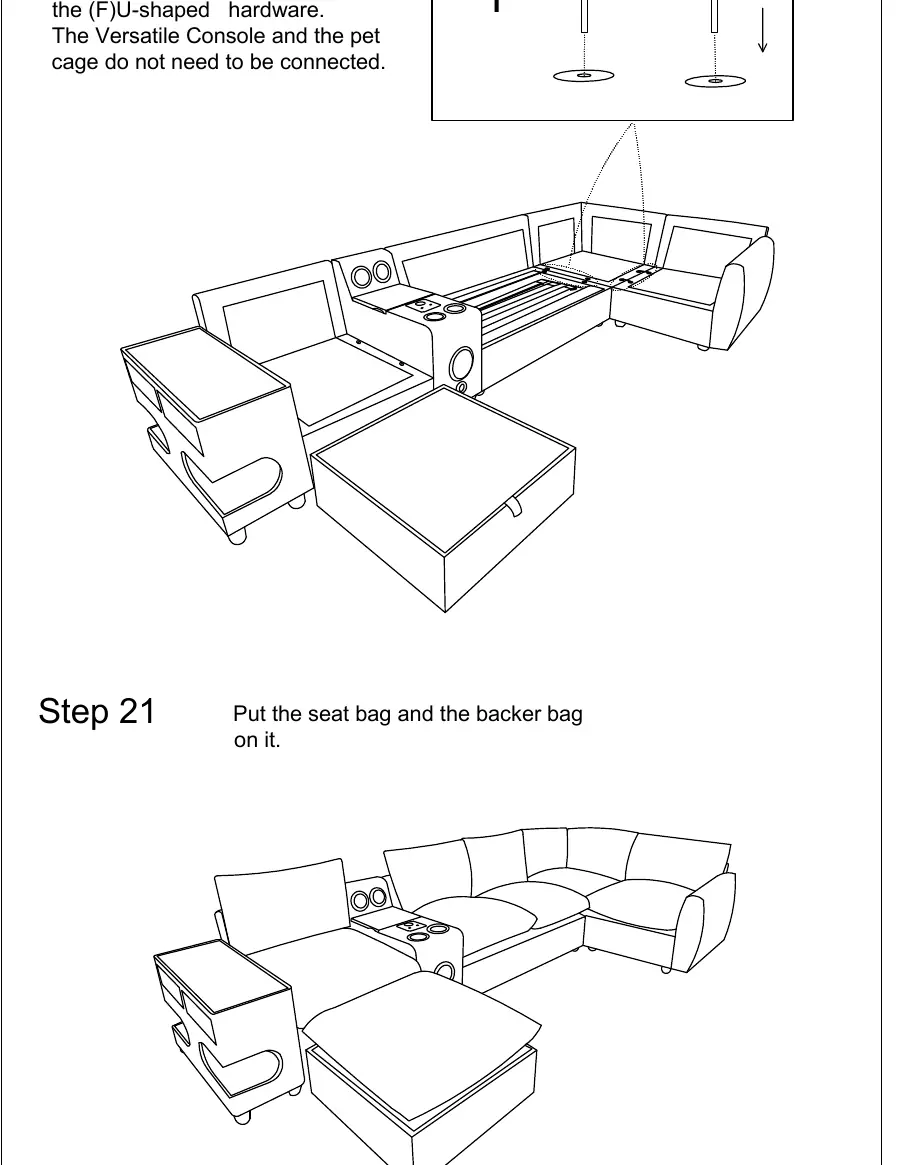

- Connecting Modules: Use the U-shaped hardware (F) to connect adjacent sofa bases. Note that the Versatile Console and Pet Cage do not require connection hardware.
Operating the Pull-out Bed
For modules equipped with the pull-out bed mechanism:
- Open the baffle and fabric strip.
- Lift the metal frame up.
- Pull the metal frame forward.
- Open the metal frame completely.
- Put down the baffle.
- Place the seat bag and backer bag on the extended frame.
To retract the bed, reverse these steps: retract the baffle, take back the metal frame, and secure the baffle and fabric strip.
Practical help
Common problems
Missing parts or hardware
Contact customer service for assistance.
Difficulty connecting modules
Ensure the U-shaped hardware (F) is properly aligned and inserted into the base connectors of adjacent modules.
Before use
- Unpack all components and verify against the parts list on pages 2-3.
- Clear a large area for assembly.
- Identify the specific module you are assembling (Single, Double, Corner, etc.).
- Ensure you have the provided hardware (bolts, U-shaped connectors, feet).
Show more Show less
Images and diagrams
- The manual uses letter codes (A-V) to identify parts, which are referenced in each assembly step.
- Step-by-step diagrams show the orientation of parts and the direction of insertion.
- The pull-out bed operation is illustrated in a sequence of 3-4 steps showing the movement of the metal frame.
Model compatibility
- The Versatile Console and Pet Cage do not need to be connected to other modules using the U-shaped hardware.
