Assembly Guide for Ebern Designs 2231 Convertible Sectional Sofa
Step-by-step assembly instructions for the Ebern Designs 2231 series modular sectional sofa, including module connection, foot installation, and cushion care.
Quick answers from the manual
Quick answer
- This manual provides assembly instructions for the Ebern Designs 2231 series modular sectional sofa, including individual module assembly and how to connect them using Velcro. p. 1, 2, 3, 4
Key actions
- Assemble feet p. 1, 2, 3, 4
- Connect modules p. 5
First start
- Fluff cushions p. 4, 5
Show 2 more answers Show less
Problems and fixes
Creases on cover
Pat the cover several times and wait; creases will become more natural.
p. 4, 5Where to find it in the PDF
- Left Armrest Module Assembly p. 1
- Middle Seat Assembly p. 2
- Right Armrest Module Assembly p. 3
- Ottoman Assembly p. 4
- Full Sectional Configuration p. 5
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Ebern Designs 2231 series is a modular sectional sofa. Assembly involves attaching the feet to the base, connecting the backrests/handrails, and joining the modules together using the provided Velcro strips. If cushions appear creased or flat due to compressed packaging, pat them several times and place them in sunlight for approximately 10 minutes to help them fluff up.

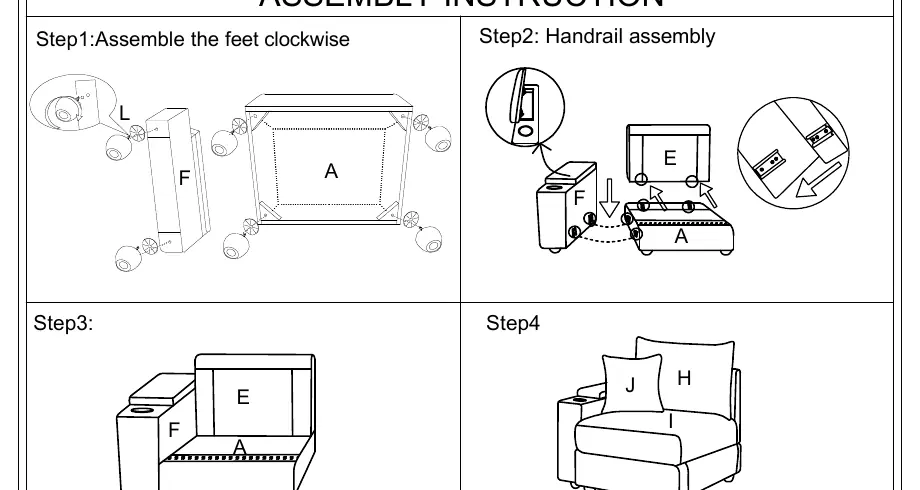

Assembly instructions
The assembly process is similar for all modules (Left Armrest, Right Armrest, Middle Seat, and Ottoman). Follow these general steps for each piece:
- Step 1: Turn the seat frame upside down and screw the feet into the designated holes in a clockwise direction.
- Step 2: Attach the backrest or handrail to the seat frame. Ensure all brackets are aligned correctly.
- Step 3: Secure the back cushions and seat bags onto the frame.
- Step 4: Place the pillows and final cushions as indicated in the specific module diagram.

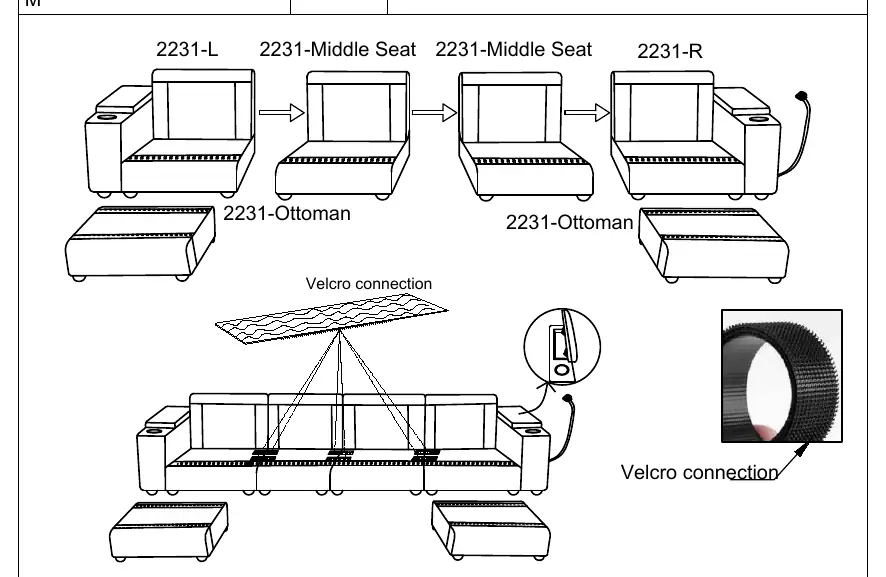

Connecting the sectional
To create the full sectional configuration, place the desired modules (2231-L, 2231-R, Middle Seats, and Ottomans) next to each other. Use the provided Velcro connection strips to secure the modules together at the base, ensuring the sofa remains stable and the pieces do not slide apart.
Cushion care
Because the product is shipped in compressed packaging, the covers may have creases upon arrival. This is normal and will not affect the use of the sofa. To restore the shape and remove creases:
- Pat the cushions and backrests several times.
- Place the cushions in sunlight for about 10 minutes to allow them to fluff up.
- Wait for a short period; the creases will naturally smooth out over time.
Practical help
Common problems
Cushions or backrests look flat or creased
Pat the cushions several times and place them in direct sunlight for about 10 minutes to allow them to fluff up. Creases will smooth out naturally over time.
Before use
- Verify all parts (Seat frame, Backcushion, Armrest, Pillows, Feet, Velcro) are present according to the specific module list.
- Ensure you have enough space to assemble the modules individually before connecting them.
- Have the Velcro connection strips ready for joining the modules.
Show more Show less
Images and diagrams
- The manual provides specific exploded views for the Left Armrest module (2231-L), Right Armrest module (2231-R), Middle Seat, and Ottoman.
- The connection diagram shows how to use Velcro strips to join the modules together to form the full sectional.
Model compatibility
- The 2231 series is modular. You can combine 2231-L, 2231-R, Middle Seats, and Ottomans to create different sectional configurations.
