ECO-WORTHY 150W 17.25V Mono Solar Panel User Manual
User manual for the ECO-WORTHY 150W 17.25V Monocrystalline Solar Panel. Includes electrical and mechanical specifications, system configuration advice for 12V, 24V, and 48V setups, and support contact information.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The ECO-WORTHY 150W 17.25V Mono Solar Panel is designed for 12V solar power systems and battery charging. It features a durable aluminum frame and IP65 waterproof rating, making it suitable for various applications including caravans, boats, and off-grid home systems. The panel is expandable; multiple units can be connected in series or parallel to create 24V, 48V, or larger solar arrays.
Product Overview
This monocrystalline solar panel is built for high efficiency and durability. It includes a built-in diode to prevent reverse current. The panel is designed to be mounted using suitable brackets on surfaces such as roofs, sheds, or ground mounts.
Key Features
- IP65 Waterproof: Suitable for outdoor use.
- Durable Construction: Features an aluminum frame and tempered glass for high bearing capacity.
- Long Lifespan: Rated for over 20 years of service.
- Reverse Current Protection: Built-in diode prevents battery discharge at night.
Electrical Specifications
All data is based on Standard Test Conditions (STC): Irradiance 1000W/m2, Temperature 25°C, Air Mass 1.5.
- Rated Power: 150W
- Solar Cell Type: Monocrystalline
- Maximum/Peak Voltage (Vmp): 17.25V
- Open Circuit Voltage (Voc): 20.00V
- Short Circuit Current: 8.70A
- Maximum Current: 9.22A
Mechanical Specifications
- Dimensions: 1070mm x 670mm x 35mm (42.04 x 26.32 x 1.4 inches)
- Weight: 17.58 lbs (8.00 kg)
- Front Surface: Tempered glass
- Extension Cable Length: 90cm (35 inches)
- Junction Box Rating: IP65
System Configuration
The panels can be configured to meet specific voltage requirements:
- 12V System: Use a single panel or multiple panels in parallel.
- 24V/48V Systems: Connect multiple panels in series to increase voltage output. Ensure the charge controller used is compatible with the total array voltage and current.
Support
If you encounter technical issues, please contact ECO-WORTHY for assistance.
Contact Number: US 1-866-939-8222, UK +44 20 7570 0328
Email: [email protected]
Practical help
Common problems
System not charging batteries
Check all wiring connections for loose contacts. Ensure the charge controller is correctly configured for the battery bank voltage (12V/24V/48V).
Lower than expected power output
Verify that the panel is not shaded by trees, buildings, or debris. Clean the surface of the panel if dirty.
Before use
- Ensure the mounting surface is stable and can support the weight of the panel (8.00 kg).
- Verify that the installation location receives maximum sunlight exposure.
- Check that the junction box is properly sealed.
- Confirm that the charge controller is compatible with the panel's Voc (20.00V) and current ratings.
- Ensure all wiring is rated for outdoor use and the appropriate gauge for the current.
Specs in practice
- Short Circuit Current (8.70A)
- The maximum current the panel can produce; used for selecting fuses and wire gauges.
Images and diagrams

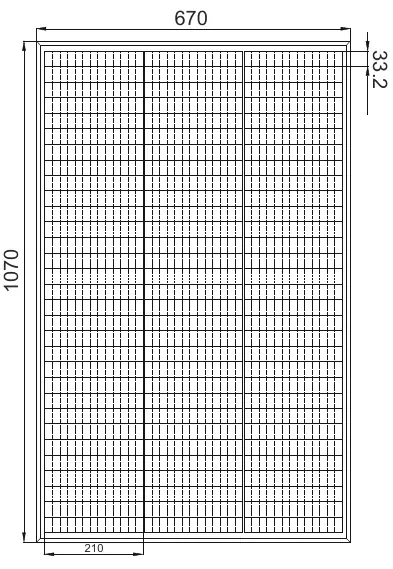

- The module diagram illustrates the physical dimensions of the panel (1070mm x 670mm) and the mounting hole spacing (210mm).
- The diagram helps in planning the physical layout for mounting brackets.
Model compatibility
- Compatible with 12V solar power systems.
- Expandable to 24V, 48V, or larger systems via series or parallel wiring.
- Requires a compatible solar charge controller for battery charging.
