User Guide for Eden Premium 2-Way Oscillating Lawn Sprinkler 94106EDAMZ
Quick guide for the Eden Premium 2-Way Oscillating Lawn Sprinkler (94106EDAMZ). Learn how to set up, adjust watering range, maintain nozzles, and use the quick-connect system.
Quick answers from the manual
Quick answer
- The Eden 94106EDAMZ is an oscillating lawn sprinkler featuring 18 clog-resistant nozzles, adjustable range control, and a water flow control knob. It includes a quick-connect system for easy hose attachment. p. 1, 2
Key actions
- Adjust watering range p. 1
- Clean nozzles p. 1
First start
- Connect hose and adjust settings p. 1
Show 4 more answers Show less
Problems and fixes
Irregular water pressure or clogs
Clean the inlet filter and use the cleaning pin on the nozzles.
p. 1Maintenance and reset
- Clean inlet filter and nozzles p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Coverage | 4000 sq ft (371 m²) | Maximum coverage area at 40 PSI / 2.76 Bar | p. 1 |
Where to find it in the PDF
- Usage and Maintenance p. 1
- Quick Connect and Safety p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Eden Premium 2-Way Oscillating Lawn Sprinkler is designed for outdoor watering. Key features include adjustable range control, water flow regulation, and a quick-connect system for easy hose attachment. Regular maintenance, such as cleaning the inlet filter and nozzles, is essential for optimal performance.
Getting to know your sprinkler
The unit consists of the following main components:
- Base: The main body of the sprinkler.
- Spray nozzles (18): Distributes water across the lawn.
- Oscillator tube: The moving part that oscillates to cover the area.
- Sliding tabs: Used to adjust the watering range.
- Flow control: Knob to regulate water pressure.
- Hose-end: Connection point for the garden hose.
- Inlet filter: Prevents debris from entering the sprinkler.
- Cleaning pin: Tool used to clear clogs from nozzles.
Usage instructions
Follow these steps to operate the sprinkler:
- Connect: Attach your garden hose to the sprinkler.
- Adjust Range: Use the sliding tabs to select the desired rectangular watering distance.
- Adjust Pressure: Turn the water flow control knob to regulate the water pressure.
- Start: Turn on the faucet and check the process. Make adjustments as needed.
Maintenance and care
If the sprinkler displays irregular water pressure or is clogged, perform the following maintenance:
- Clean Inlet Filter: Remove the hose, locate the small inlet filter at the hose-end of the oscillator, remove it, and rinse under water.
- Flush Oscillator: Connect the oscillator to a faucet, turn on the water, and spin the tube gently back and forth for a few minutes.
- Clean Nozzles: Remove the cleaning pin from the opposite end of the oscillator and use it to clear any clogs from the spray nozzles while running water.
Storage and tips
- Drain: Always drain water from the sprinkler after use to prevent freezing.
- Storage: Place the sprinkler in a dry, warm storage area.
- Watering Tips: Water in the morning to minimize evaporation. Water deeply but not too often to encourage root growth. Using a timer can help reduce water waste.
Quick connect system
The included Quick Connect Adapter and Hose Connector with Water Stop simplify the connection process. Simply attach the connector to the end of your hose to interchange various watering tools without turning off the water. The mechanism allows the hose to swivel 360 degrees, preventing kinking or twisting.
Safety information
- For outdoor use with cold water only.
- Do not spray near electrical connections.
- Rinse the tool with water to remove dirt and store indoors when not in use.
- Warning: This product contains chemicals known to the State of California to cause cancer and reproductive harm.
Manufacturer information
Eden Garden
Practical help
Common problems
Irregular water pressure
Clean the inlet filter located at the hose-end of the oscillator.
Clogged spray nozzles
Use the provided cleaning pin to clear clogs while running water through the unit.
Before use
- Ensure the hose is connected securely to the sprinkler.
- Check that the inlet filter is clean and free of debris.
- Adjust the sliding tabs to set the desired watering range.
- Turn the water flow control knob to the desired pressure setting.
- Ensure the sprinkler is placed in the desired location before turning on the water.
Show more Show less
Specs in practice
- Coverage Max
- Up to 4000 sq ft (371 m²) based on 40 PSI / 2.76 Bar.
- Plastic nozzle heads
- 18 individual nozzles designed for even water distribution.
Images and diagrams

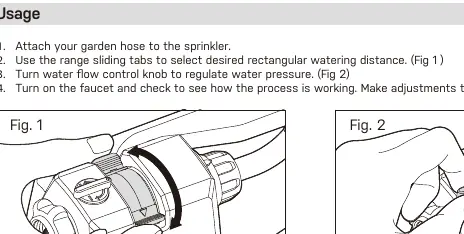

- Fig 1: Shows the sliding tabs used for adjusting the watering range.

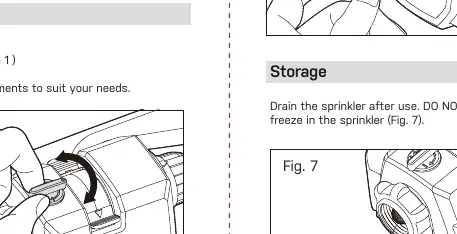

- Fig 2: Shows the flow control knob used to regulate water pressure.
- Fig 3: Illustrates removing and cleaning the inlet filter.

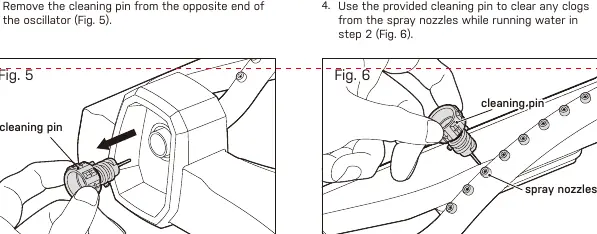

- Fig 5 & 6: Demonstrates using the cleaning pin to clear the spray nozzles.
