Installation Guide for TEMU 20M Water Saving Drip Irrigation Set
A comprehensive installation and usage guide for the TEMU 20M Water Saving Drip Irrigation Set. Includes setup instructions, package contents, and operational requirements like water pressure specifications.
Quick answers from the manual
Quick answer
- To install the system, measure your desired nozzle positions, cut the PU hose accordingly, insert the hose into the connectors, lock the pipe, attach the nozzles, and connect the system to your faucet using the provided adapter. Ensure water pressure is above 2 BAR. p. 1
Key actions
- Ensure water pressure is above 2 BAR for proper spray. p. 1
- Store the system in a clean bag when not in use to prevent dust clogging. p. 1
Problems and fixes
Atomization fails or nozzle drips
Check if the water pressure is sufficient.
p. 1Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Minimum Water Pressure | 2 BAR | Required for proper spray operation. | p. 1 |
Where to find it in the PDF
- Installation and Parts Guide p. 1
Table of contents
Quick guide from the manual
This irrigation system is designed for efficient watering. For proper operation, ensure the water pressure is above 2 BAR. If the system is not used for a long time, store it in a clean bag to prevent dust clogging.
Package contents
- PTFE Tape
- Bushing
- Hose Ties
- Hose Cutter
- Faucet adapter
- End Plug
- Adjustable Nozzle
- PU Hose
Installation steps
- Determine the position of each nozzle according to the desired spray range.
- Measure the distance between nozzle positions and cut the water pipe as required.
- Secure the spray line with the provided retaining clips.
- Insert the tube into both ends of the connector.
- Lock the water pipe securely.
- Insert the nozzle into the snap ring.
- Insert the plug into the end tee.
- Connect the faucet adapter to the tap.
Usage notes and maintenance
- Water Pressure: Ensure water pressure is above 2 BAR for proper spray.
- Troubleshooting: If atomization fails or the nozzle drips, check if the water pressure is sufficient.
- Safety: Consider mist distance and water quality impact on skin; maintain a suitable distance from the mist during operation. Do not spray harmful liquids or gases.
- Storage: When the spray system is not used for a long time, store the entire system in a clean storage bag to prevent dust clogging.
Practical help
Common problems
Atomization fails or nozzle drips
Check if the water pressure is sufficient (must be above 2 BAR).
Before use
- Verify water pressure is above 2 BAR
- Determine nozzle positions based on desired spray range
- Measure distance between nozzle positions
- Cut water pipe to required lengths
Show more Show less
Specs in practice
- Water Pressure
- Must be above 2 BAR for proper spray performance.
Images and diagrams

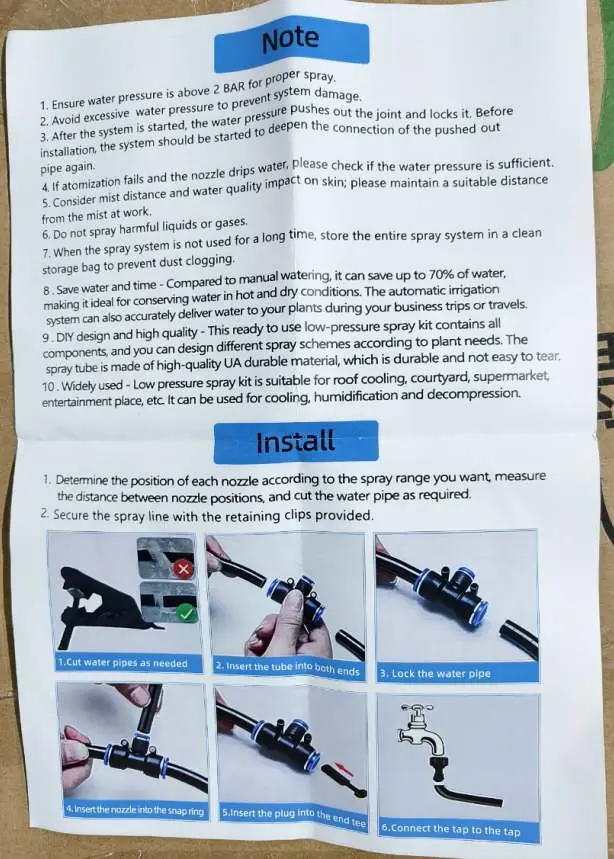

- The installation diagram illustrates the 6-step process: cutting the pipe, inserting the tube into connectors, locking the pipe, inserting the nozzle, plugging the end, and connecting to the faucet.
Model compatibility
- Designed for low-pressure spray applications including roof cooling, courtyards, and supermarkets.
Manual page author
Emily Carter
User documentation editor
