The EDEN 16028EDAMZ is a 4-way adjustable mini oscillating sprinkler head designed for outdoor garden watering. It features 16 spray nozzles and connects to standard Eden sprinkler bases using a 1/2 inch thread pattern. The device allows for precise control over the watering area, including width, length, flow, and rotation angle.
Product Overview
The sprinkler head is equipped with several adjustment controls to customize the watering pattern:
- 16 Spray Nozzles: Ensures even water distribution.
- 1/2 Inch Thread Pattern: Compatible with Eden sprinkler bases featuring an H-shape or tripod design.
- Water Flow Control Knob: Adjusts the overall watering area.
- 360° Rotating Head: Allows for incremental angle adjustments without needing to move the sprinkler or hose.
Adjusting the Sprinkler
You can customize the spray pattern using the following controls:
- Width Control: Use the sliding tabs to control the width of the watering area, up to 43 feet (13 meters).
- Range Control: Push down the tabs to control the length of the watering area, up to 26.24 feet (8 meters).
- Water Flow: Rotate the flow control knob to adjust the overall watering area size.
- Rotation Adjustment: Rotate the head 360° to direct the spray without moving the base.
Maintenance and Safety
To ensure the longevity of your sprinkler head, follow these guidelines:
- Usage: For outdoor use with cold water only.
- Safety: Do not spray near electrical connections.
- Cleaning: When not in use, rinse the tool with water to remove dirt.
- Storage: Dry the tool thoroughly and store it indoors.
- Warning: This product can expose you to chemicals including styrene, which is known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
Official resources from the manual
Manufacturer information
Eden Garden
Practical help
Common problems
Sprinkler does not fit the base
Ensure you are using an Eden sprinkler base with an H-shape or tripod design, as this unit requires a 1/2 inch thread pattern.
Uneven watering pattern
Check the 16 spray nozzles for debris or clogs and rinse the unit with water.
Before use
- Ensure the water source is cold water only.
- Verify the sprinkler is securely attached to a compatible Eden base.
- Check that the area is clear of electrical connections.
- Adjust the width and range tabs before turning on the water.
Images and diagrams

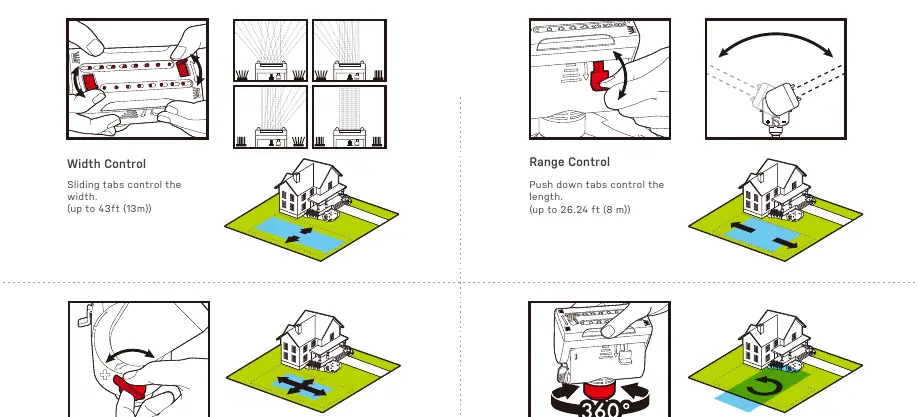

- Width control is managed by sliding tabs.
- Range control is managed by pushing down tabs.
- Rotation adjustment allows for 360-degree positioning.
Model compatibility
- Compatible with Eden sprinkler bases featuring H-shape or tripod designs.
