User Manual for Einhell TE-VC 1925 SA Wet and Dry Vacuum Cleaner
Quick guide for the Einhell TE-VC 1925 SA wet and dry vacuum cleaner. Includes assembly instructions, filter installation, operation modes, and maintenance tips.
Quick answers from the manual
Quick answer
- This manual provides instructions for the assembly, operation, and maintenance of the Einhell TE-VC 1925 SA wet and dry vacuum cleaner. p. 9, 10, 11, 12
Key actions
- Assemble wheels and castors p. 10
- Fit the correct filter for the task p. 10
- Connect the suction hose p. 10
- Use automatic mode with electric tools p. 11
First start
- Verify mains voltage p. 10
- Assemble the appliance p. 10
Problems and fixes
Suction noise changes and becomes louder during wet vacuuming
The floating safety switch (21) has closed because the maximum tank level is reached. Switch off the equipment and empty the tank.
p. 11Maintenance and reset
- Clean the appliance p. 12
- Clean the filters p. 12
- Check filter security p. 12
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Mains voltage | 230 V ~ 50 Hz | Required electrical supply | p. 10 |
| Power input | 800 watts | Power consumption of the vacuum | p. 10 |
| Max. power consumption of the automatic socket-outlet | 2600 watts | Maximum power for connected electric tools | p. 10 |
| Max. total power consumption | 3400 watts | Combined maximum power | p. 10 |
| Container volume | 25 l | Capacity of the tank | p. 10 |
| Weight | 9.7 kg | Weight of the unit | p. 10 |
Where to find it in the PDF
- Safety information p. 9
- Layout and items supplied p. 9
- Intended use p. 10
- Technical data p. 10
- Before starting/Assembly p. 10
- Operation p. 11
- Cleaning, maintenance p. 11, 12
- Disposal and recycling p. 12
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This vacuum cleaner is designed for both wet and dry vacuuming. Before use, ensure the correct filter is installed for your specific task: the pleated filter is for dry vacuuming, and the foam filter is for wet vacuuming. Always check that the mains voltage matches the rating plate before connecting the device.
Assembly
The device requires some initial assembly:
- Wheels: Insert the split pin through the axle hole, slide on a washer and wheel, then push the axle through the guides on the underside of the tank. Secure the second wheel with the remaining washer and split pin. Press the covers onto the wheels until they click.
- Castors: Push the castors into the mountings on the underside of the tank until they click into place.
- Appliance Head: The head is secured to the container using locking hooks. Ensure these are properly engaged when fitting.
Operation
The vacuum cleaner features three switch positions:
- 0: Off
- I: Normal operation
- AUTO: Automatic mode for use with electric tools.
In Automatic mode, connect your electric tool to the automatic socket-outlet. The vacuum will turn on and off automatically when you operate the connected tool.
Suction and Blowing
Connect the suction hose to the appropriate port:
- Suction: Connect to the suction hose connector.
- Blowing: Connect to the blow connector.
Use the air regulator on the suction tube to adjust suction power. For wet vacuuming, opening the air regulator can help reduce strain on the device.
Maintenance and Cleaning
Always unplug the device before cleaning. Clean the appliance head and container regularly with a damp cloth and mild soap. Clean the pleated filter by patting it and using a fine brush. Clean the foam filter with mild soap under running water and let it air dry. Regularly check that filters are securely fitted before each use.
Safety
Never vacuum flammable, explosive, or hazardous substances. If the safety float valve closes during wet vacuuming (indicated by a change in suction noise), turn off the device immediately and empty the tank.
Manufacturer information
Einhell
Practical help
Common problems
Device makes a louder noise during wet vacuuming
The safety float valve has closed because the tank is full. Turn off the device and empty the tank.
Reduced suction power
Check if the filter is clogged or full and clean it accordingly.
Before use
- Check that the mains voltage matches the rating plate.
- Ensure the correct filter is installed (foam for wet, pleated for dry).
- Verify all connections are secure and airtight.
- Ensure the device is connected to a shock-proof socket.
Specs in practice
- Container volume
- 25 L
- Max. total power consumption
- 3400 W
Images and diagrams

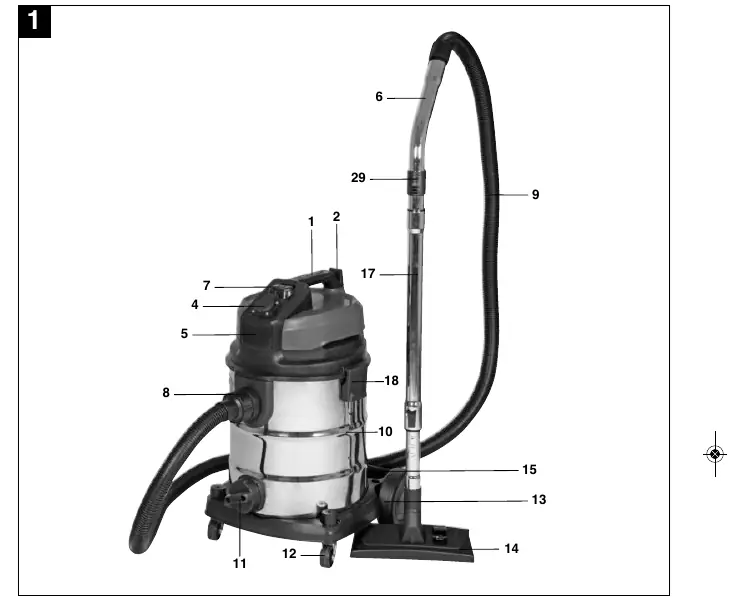

- Fig 1-3: Overview of parts and hose connections.

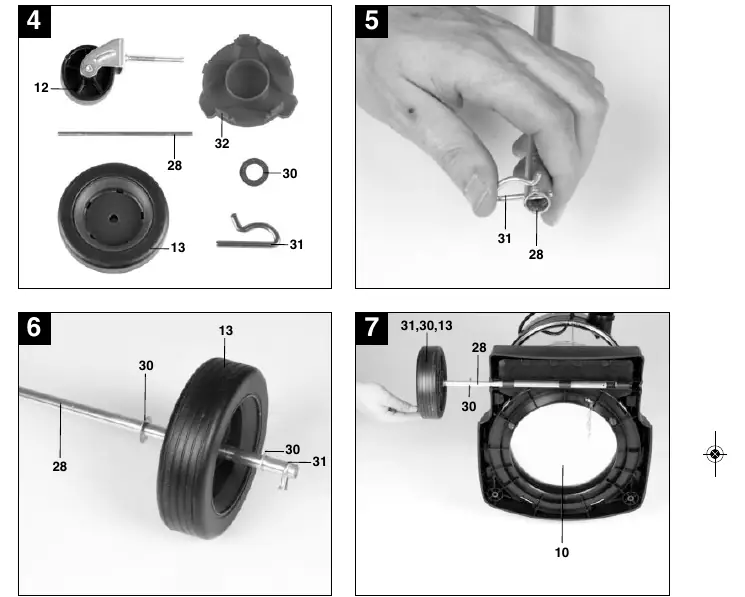

- Fig 4-11: Step-by-step wheel assembly.
- Fig 12: Castor installation.
- Fig 14-15: Filter installation for wet and dry modes.
Model compatibility
- Not suitable for vacuuming hazardous dust.
- Not suitable for vacuuming flammable or explosive substances.
