The Elmag HDi 13K400 TC is a movable induction heater designed for industrial applications. Important: The device must not be transported horizontally. Ensure the coolant tank (20L) is properly filled and the unit is connected to a 400V/3ph power supply using a CEE 32A connector before operation.
Product Overview
The unit is a microprocessor-controlled induction heater featuring a 5-inch touch screen interface. It is designed for high-performance heating tasks with a power output of 13 kW.
Features and Test Menu
The device offers several advanced features for monitoring and control:
- Heating power setting via touch screen
- Power display (kW)
- Coolant temperature display (C°/F)
- Temperature level adjustment (requires optional external laser sensor)
The integrated test menu allows the user to perform:
- Phase voltage test
- IGBT test
- DC voltage test
- Diagnostics and data history

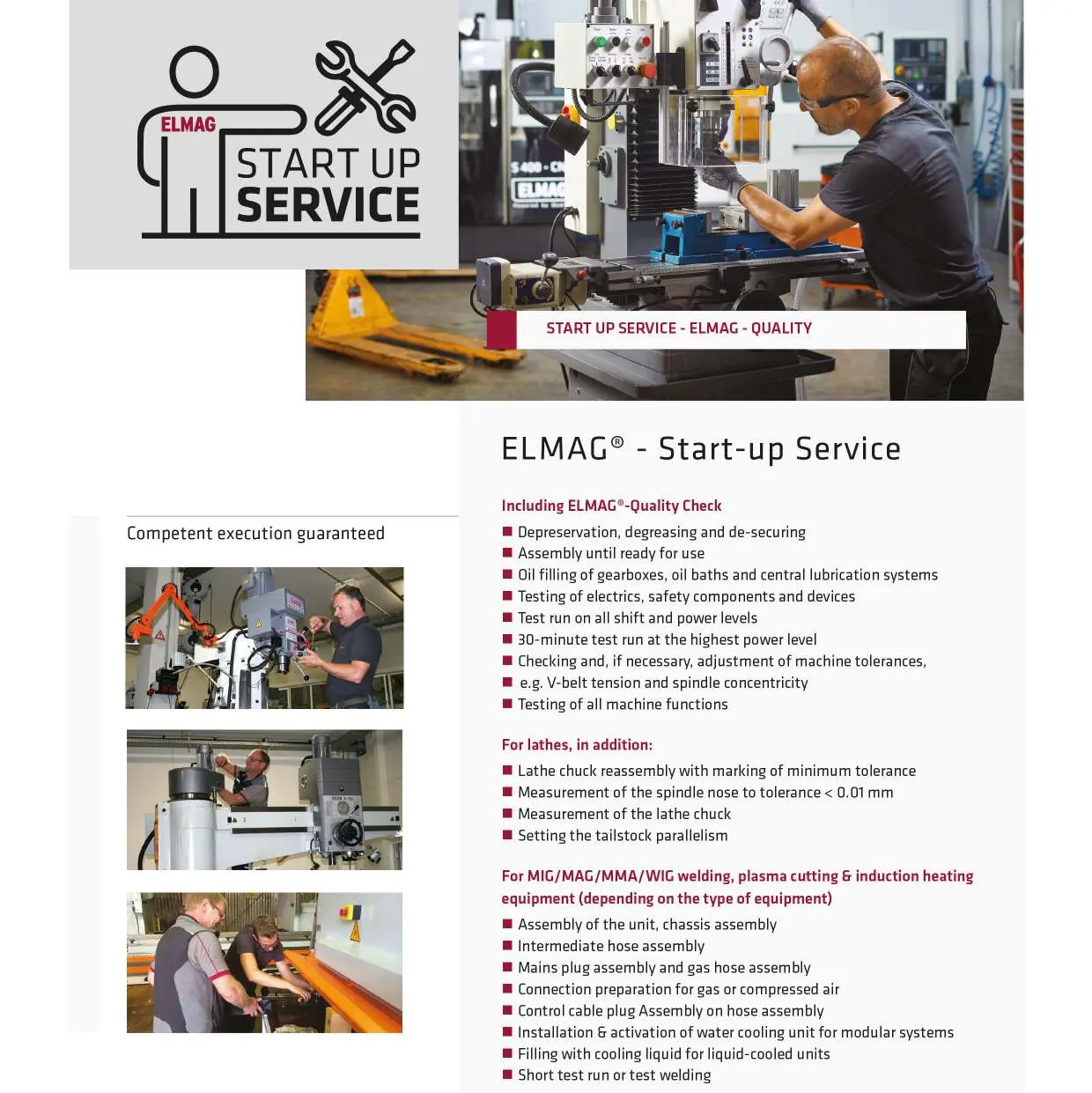

Start-up Service
The manufacturer provides a professional start-up service to ensure the equipment is ready for use. This includes:
- Depreservation, degreasing, and de-securing
- Assembly and connection of the unit, chassis, and hose packages
- Oil filling of gearboxes and lubrication systems
- Testing of all machine functions and safety components
- Short test run or test welding
Technical Specifications
- Output power: 13 kW
- Duty cycle: ~45 min at max power (at 20 °C)
- Working frequency: 15 - 30 kHz
- Coolant tank capacity: 20 l
- Dimensions: 550x560x1010 mm
- Weight: 120 kg
- Degree of protection: IP21
Manufacturer information
ELMAG Entwicklungs und Handels GmbH
Practical help
Common problems
Transporting the device
The device must not be transported horizontally.
Cooling system maintenance
Ensure the 20L coolant tank is maintained and the hydraulic heat exchanger with fan is operational.
Before use
- Check coolant levels in the 20L tank
- Verify power supply (400V/3ph, CEE 32A connector)
- Ensure the 4.25m induction hose package is correctly connected
- Perform test menu checks (Phase voltage, IGBT, DC voltage)
- Ensure the unit is in an upright position
Specs in practice
- Output power
- 13 kW
- Working frequency
- 15 - 30 kHz
- Degree of protection
- IP21
Images and diagrams
- The unit features a mobile generator design with a 4.25m induction hose package.
- The control interface is a 5-inch touch screen.
Model compatibility
- Compatible with optional external laser sensor for temperature level adjustment.
