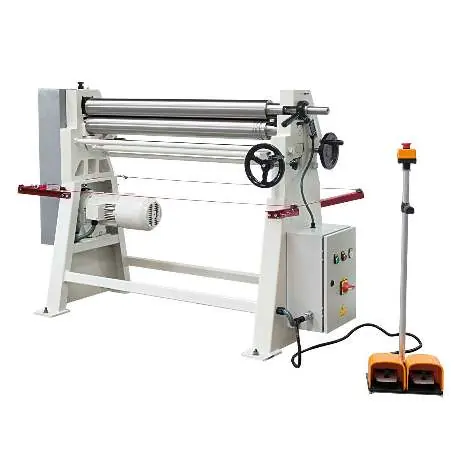

User Guide for ELMAG AS-M 1250x2.5mm Motorised Round Bending Machine
Quick guide and technical specifications for the ELMAG AS-M 1250x2.5mm motorised round bending machine. Learn about its features, operating capabilities, and technical parameters.
Table of contents
Important information from the manual
This document provides an overview of the ELMAG AS-M 1250x2.5mm motorised round bending machine. It is designed for professional use in metalworking, plumbing, ventilation, and insulation industries. The machine is intended for rolling fine and medium thickness sheet steel, stainless steel, and aluminium.
Product Overview
The AS-M series is a motorised round bending machine designed for light to medium serial rolling jobs. Key features include:
- One-man operation: Designed for efficient, independent use.
- Adjustable Rollers: Upper and lower rollers are adjustable; the rear roller is movable via a handwheel.
- Detachable Upper Roller: Allows for easy removal of the workpiece from the front.
- Motorised Drive: Equipped with a powerful 1,100 W geared motor with a motor brake.
- Control System: Features a mobile control column with a double foot pedal for sheet metal advance or retraction.
Safety Features
The machine is equipped with safety measures to ensure operator protection, including:
- Emergency stop button located on the control column.
- Safety line with emergency stop functionality.
Technical Specifications
The following parameters define the machine's capabilities:
- Working length: 1250 mm
- Max sheet thickness (prebending): 2.5 mm
- Max sheet thickness (bending): 3 mm
- Motor power: 1100 W
- Voltage: 400/50 V/Hz
- Weight: 500 kg
Manufacturer information
ELMAG Entwicklungs und Handels GmbH
Practical help
Before use
- Ensure the power supply matches the machine requirements (400V/50Hz).
- Verify the workspace is suitable for a machine weighing 500 kg.
- Check that the emergency stop button is accessible and functional.
- Confirm the material thickness is within the specified limits (max 3mm for bending).
- Ensure the mobile control column is positioned correctly for the operator.
Specs in practice
- Working length
- The maximum width of the sheet metal that can be processed (1250 mm).
- Sheet thickness (bending)
- The maximum thickness of material the machine can bend (3 mm).
Images and diagrams
- The machine includes a mobile control column with a double foot pedal for controlling the forward and reverse feed of the sheet metal.
- The rear roller is adjusted manually using a handwheel.
Model compatibility
- Designed for rolling fine and medium thickness sheet steel, stainless steel, and aluminium.
- Suitable for producing pipes, pipe sockets, columns, gutters, half shells, container shells, and ventilation pipes.
