User Manual for Elmag WPMEH 100/2-K Hydraulic Workshop Press
Quick guide for the Elmag WPMEH 100/2-K hydraulic workshop press. Includes technical specifications, key features, and product details.
Table of contents
Quick guide from the manual
The Elmag WPMEH 100/2-K is a high-performance hydraulic workshop press designed for industrial and workshop applications. This document serves as a specification sheet and product overview. Ensure the machine is installed by qualified personnel and that all safety protocols are followed during operation.
Product Overview
The press is equipped with several standard features designed for efficiency and safety:
- Overload safety valve: Protects the system from excessive pressure.
- Compression pressure gauge: Allows for monitoring of the pressing force.
- On/off control valve: Provides manual control over the hydraulic operation.
- Chrome-plated cylinder piston: Ensures durability and smooth operation.
- Press table with locking pin: Allows for adjustable height and secure positioning.
Technical Specifications
The following specifications apply to the WPMEH 100/2-K model:
- Press power max: 100 t
- Motor power: 2200 W
- Voltage: 400/50 V/Hz
- Machine height: 2140 mm
- Machine width: 755 mm
- Piston stroke: 380 mm
- Weight: 970 kg
- Oil flow step 1/2: 5.64 / 17.2 l/min
- Piston speed step 1/2: 7.54 / 2.47 mm/s
Start-up Service
Elmag provides a professional start-up service to ensure the machine is ready for operation. This includes:
- Depreservation, degreasing, and de-securing.
- Oil filling of gearboxes, oil baths, and central lubrication systems.
- Testing of electrics, safety components, and devices.
- 30-minute test run at the highest power level.
- Checking and adjustment of machine tolerances (e.g., V-belt tension, spindle concentricity).
- Testing of all machine functions.
Manufacturer information
ELMAG Entwicklungs und Handels GmbH
Practical help
Before use
- Ensure the machine is placed on a stable, level surface.
- Verify that the power supply matches the 400V/50Hz requirement.
- Check that the press table locking pins are fully engaged before applying pressure.
- Ensure the hydraulic oil levels are correct.
Specs in practice
- Press power max.
- The maximum force the hydraulic cylinder can exert, rated at 100 tons.
- Piston stroke
- The maximum distance the piston can travel, which is 380 mm.
Images and diagrams

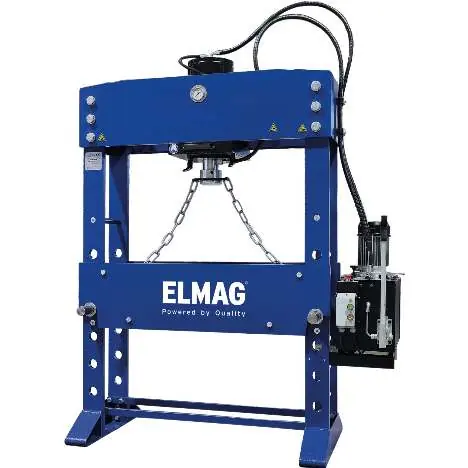

- The product image displays the main frame of the hydraulic press, the pressure gauge located at the top, the hydraulic pump unit on the side, and the adjustable press table.
