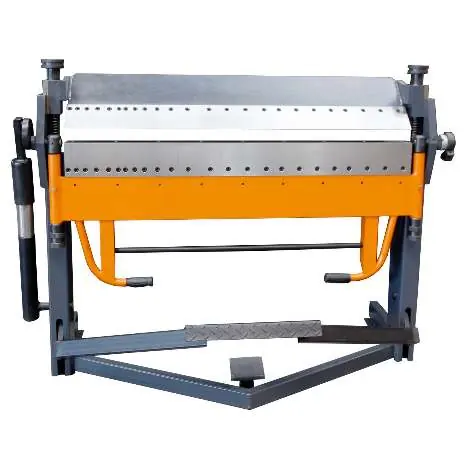

User Manual for Elmag SBM 1270x2.0 HSS Manual Swivel Bending Machine
Comprehensive user guide for the Elmag SBM 1270x2.0 HSS manual swivel bending machine. Includes technical specifications, operational features, segment configurations, and application guidelines.
Quick answers from the manual
Quick answer
- The Elmag SBM 1270x2.0 HSS is a manual swivel bending machine with a 1270 mm working length and a 2.0 mm sheet thickness capacity, featuring adjustable segments and foot-pedal operated clamping. p. 1, 2
Key actions
- Operate the upper beam clamping using the foot pedal to keep hands free for material feed. p. 2
- Adjust bending beam segments to match the required width (25 mm to 270 mm). p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Working length | 1270 mm | Maximum width of sheet metal | p. 1, 2 |
| Plate thickness | 2.0 mm | Maximum material thickness | p. 1, 2 |
| Bending angle | 0 - 135° | Range of bending motion | p. 1, 2 |
| Weight | 335 kg | Total machine weight | p. 3 |
Where to find it in the PDF
- Technical Facts and Product Overview p. 1
- Operational Features and Specifications p. 2
- Dimensions and Weight p. 3
Table of contents
Quick guide from the manual
The Elmag SBM 1270x2.0 HSS is a manual swivel bending machine designed for precision metalworking. It features a working length of 1270 mm and can handle sheet thicknesses up to 2.0 mm. The machine utilizes a foot pedal for clamping, allowing for hands-free material feeding and efficient operation.
Product Overview
The machine is equipped with high-alloy, ground special steel bending beam segments. These segments can be removed and moved to accommodate different bending widths, ranging from 25 mm to 270 mm. The upper beam and bending beam are adjustable to adapt quickly to different material thicknesses. The system uses eccentric technology for effortless bending apron activation and is supported by powerful tension spring cylinders for smooth, controlled operation.
Operational Features
- Foot Pedal Operation: Allows for convenient closing and locking of the upper beam, keeping both hands free for material positioning. The pedal is covered with non-slip rubber for safety.
- Automatic Lifting: The upper beam lifts automatically upon opening, facilitating easier material removal.
- Adjustability: Precise adjustment of the upper and bending beams allows for quick adaptation to various material thicknesses.
Technical Specifications
- Working Length: 1270 mm
- Max Plate Thickness: 2.0 mm
- Bending Angle: 0 - 135°
- Opening Width: Max 48 mm
- Segment Widths: 25/30/35/40/45/50/75/100/150/200/(250)/270 mm
- Dimensions: 1585 mm (Length) x 900 mm (Width) x 1150 mm (Height)
- Weight: 335 kg
Applications
This machine is suitable for a variety of professional metalworking tasks, including:
- Switch cabinet construction
- Insulation workshops
- Car body shops and car workshops
- Metalworking shops
- Facade construction
- Roofing and plumbing
Manufacturer information
ELMAG Entwicklungs und Handels GmbH
Practical help
Common problems
Material not bending correctly or unevenly
Check that the bending beam segments are correctly aligned and that the upper beam adjustment is set properly for the specific material thickness.
Difficulty in clamping material
Ensure the foot pedal mechanism is unobstructed and the upper beam is free of debris. Verify that the material thickness does not exceed the 2.0 mm limit.
Before use
- Verify the material thickness is within the 2.0 mm limit.
- Ensure the workspace is clear to accommodate the 1270 mm working length.
- Check that the foot pedal is unobstructed and functions smoothly.
- Confirm the bending segment configuration matches the required bend width.
- Ensure the machine is placed on a stable, level surface.
Specs in practice
- Working length
- The maximum width of the sheet metal that can be processed (1270 mm).
- Plate thickness
- The maximum thickness of material the machine is rated to bend (2.0 mm).
- Opening width
- The maximum gap between the top and bottom beam (48 mm).
- Bending angle
- The range of motion for the bending apron (0-135°).
Model compatibility
- Designed for various metalworking applications including switch cabinet construction, car body shops, and plumbing.
