User Manual for Emerson 1000W Microwave Oven MW1338SB

Quick guide from the manual

This manual provides essential instructions for operating the Emerson 1000W Microwave Oven (Model MW1338SB). Key features include a childproof two-step door opening mechanism, multiple cooking stages, and an energy-saving ECO mode. Always ensure the oven is properly grounded and never operate it empty.

Installation and Safety

Proper installation is critical for safety and performance:

• Location: Place the oven on a steady, flat surface.
• Ventilation: Maintain at least 3 inches of space between the oven's top, sides, rear, and surrounding surfaces.
• Grounding: This appliance must be grounded. Use a properly installed 3-prong outlet. Do not use an extension cord unless it is a 3-wire grounding type.
• Safety Precautions: Do not operate the oven if the door is damaged or if the door seals are compromised. Never use metal containers, metal twist-ties, or conventional thermometers inside the oven.

Location of Controls

The control panel allows you to manage all cooking functions:

• Time Cook/Defrost: Used to set cooking or defrosting time.
• Power: Adjusts the microwave power level (11 levels available).

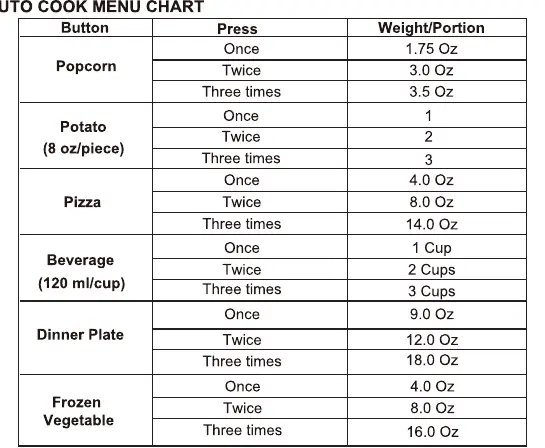

• Auto Cook Menu: Quick access buttons for items like Popcorn, Potato, Pizza, Beverage, Dinner Plate, and Frozen Vegetable.
• Start/+30Sec: Starts cooking or adds 30 seconds to the current cycle.
• Stop/Clear/ECO: Stops cooking or enters energy-saving mode.

Operation

Safety Lock

The oven features a child safety lock. To deactivate it permanently (if no children are present):

1. Press "7" and "9" in sequence.
2. Press and hold the DOOR OPEN button for three seconds.
3. The screen will display "ULoc" to confirm deactivation.
4. Repeat the process to re-activate (screen will display "Loc").

Cooking Modes

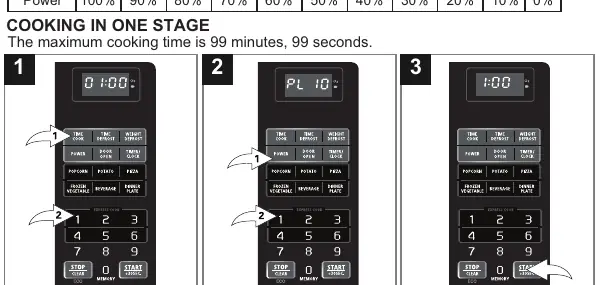

• Cooking in One Stage: Press TIME COOK, enter the time using number buttons, press POWER to select the level (default is 100%), then press START/+30SEC.

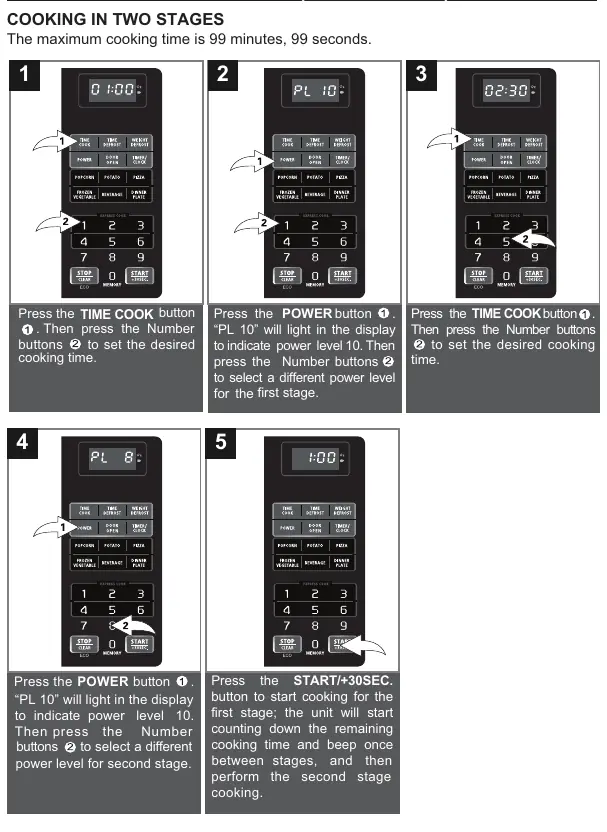

• Cooking in Two Stages: Follow the same steps as above for the first stage, then repeat for the second stage before pressing START/+30SEC.
• Express Cook: Press number buttons 1-6 to immediately start cooking at 100% power for that number of minutes.

Care and Cleaning

Regular maintenance ensures longevity:

• Interior: Wipe with a soft, damp cloth after each use. Use mild, non-abrasive soaps.
• Glass Tray & Roller Guide: These can be removed and washed in warm, sudsy water or a dishwasher.
• Exterior: Clean with mild soap and water, then wipe dry. Do not allow water to seep into ventilation slots.

Troubleshooting

Before calling for service, check the following:

• Oven does not work: Ensure the power cord is plugged in, the door is firmly closed, the cooking time is set, the circuit breaker is not tripped, and the Child Lock is not engaged.
• Sparking: Remove any metal containers, foil, or dishes with metal trim from the oven.
