Installation Guide for Envirovent Filterless Infinity Fan

Comprehensive installation and user guide for the Envirovent Filterless Infinity Fan. Includes wiring diagrams, setup instructions, maintenance procedures, and technical specifications for 230V and SELV models.

Quick answers from the manual

Quick answer

  • The Envirovent Filterless Infinity Fan is an extractor fan for kitchens and bathrooms. It requires professional installation, must be wired to a local isolator, and features adjustable settings for different duty requirements. p. 1, 2, 3

Key actions

  • Isolate mains supply before installation or cleaning. p. 7, 12
  • Adjust switches 1 and 2 on the central cartridge to set the fan duty. p. 9

First start

  • Ensure the unit is installed by a competent person, wired to a local isolator, and the front cover is securely fitted. p. 2, 3, 10
Show 4 more answers Show less

Problems and fixes

Unit not operating

Check that the front cover is fitted, the power is on, and all internal connectors are attached.

p. 10, 11

Maintenance and reset

  • Clean the front cover and impeller in warm soapy water; do not use solvents or a dishwasher. p. 12

Technical specifications

Parameter Value Meaning Pages
Bathroom Trickle 3W / 14 L/s Power and airflow for bathroom trickle setting. p. 13
Kitchen Boost 30W / 55 L/s Power and airflow for kitchen boost setting. p. 13

Where to find it in the PDF

  • Installation p. 7, 8, 9, 10
  • Wiring Diagrams p. 5
Table of contents

Manual images

Click an image to enlarge

Quick Guide

The Envirovent Filterless Infinity Fan is designed to improve indoor air quality and reduce humidity in kitchens and bathrooms. This guide provides essential installation, wiring, and maintenance instructions. Ensure the unit is installed by a competent person and that all local wiring regulations are followed.

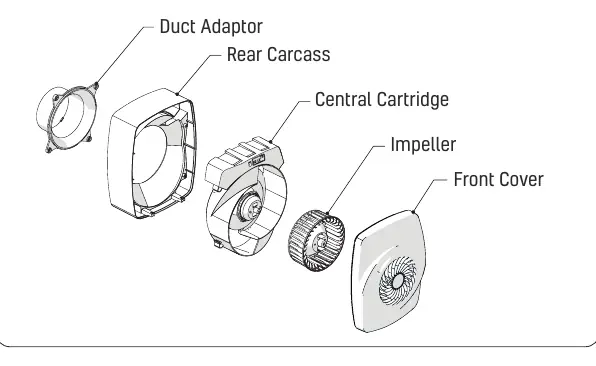

Exploded view of the Filterless Infinity Fan components.
Exploded view of the Filterless Infinity Fan components.

Safety Information

  • The unit must be installed by a competent person.
  • Ensure there is sufficient space for the unit in the chosen location.
  • The unit cannot be wall-mounted upside down (electronic boards at the bottom) as this voids the warranty.
  • If installed in a kitchen above a cooker, it must be at least 1 metre above the hob and must not have a pullcord.
  • Ensure the external cowl is positioned at least 300mm away from open-flue appliances (2m recommended).
  • Do not remove or tamper with the electronic circuit boards.
  • The unit requires a continuous electrical power supply and should not be wired through a light switch.

Installation

  1. Isolate the mains supply before beginning.
  2. Loosen the two screws on the bottom and remove the front cover.
  3. Pull the central cartridge out from the rear carcass.
  4. Disconnect the green connector and set the cartridge aside.
  5. Connect the power cable and local isolator to the mains as per the wiring diagrams. Tighten the cable gland.
  6. Insert the rear carcass into the wall duct.
  7. Fix to the wall using the four provided screws and wall plugs.
  8. If using a backdraught shutter, insert it fully (do not use if ceiling mounted).
  9. Insert the provided caps into the fixing holes at the top of the rear carcass.
  10. Reconnect the green power connector and insert the central cartridge into the rear carcass.
  11. Adjust switches 1 and 2 on the central cartridge to set the duty (see Settings section).
  12. Apply the adhesive foam pad over the switches.
  13. Ensure the impeller is fitted correctly with both clips engaged.
  14. Replace the front cover, ensuring the pullcord sits in the slot, and tighten the screws.
  15. Reactivate the mains supply.

Wiring

All wiring must comply with current IET Wiring Regulations (BS7671 in the UK) or equivalent. The unit must be disconnected from the mains supply after installation via a suitable local isolator. The power cable must be the supplied flexible cable; using solid core cable will void the warranty. This product is not suitable for use with a Type AC RCD.

Settings

Adjust switches 1 and 2 on the central cartridge to configure the fan:

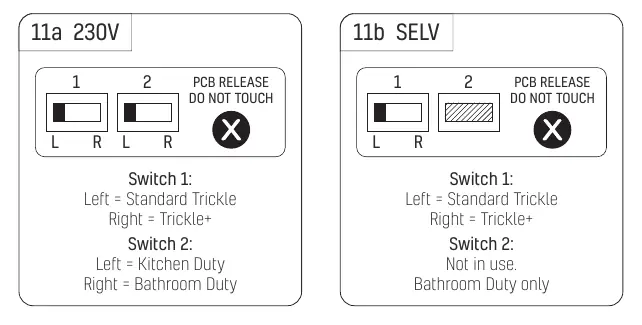

Switch settings for 230V and SELV models.
Switch settings for 230V and SELV models.
  • Switch 1: Left = Standard Trickle, Right = Trickle+
  • Switch 2 (230V): Left = Kitchen Duty, Right = Bathroom Duty
  • Switch 2 (SELV): Not in use (Bathroom Duty only)

Cleaning and Maintenance

Isolate the unit from the mains supply before cleaning. Remove the front cover, push the impeller clips towards the center, and pull the impeller out. Clean the front cover and impeller in warm soapy water and allow to dry. Do not use solvents or a dishwasher. Clip the impeller back into position, ensuring clips are engaged, and replace the front cover.

Technical Specifications

The unit is available in 230V-IPX4 and SELV-IPX5 variants. It features Intellitrac Technology for automatic humidity sensing. Airflow performance varies by setting (Trickle, Trickle+, Boost) and room type (Kitchen/Bathroom), ranging from 14 L/s to 55 L/s.

Practical help

Common problems

Unit will not operate

Ensure the front cover is fitted correctly, as the unit will not operate without it. Check that the power supply is active and all internal connectors are attached.

Warranty voided

Do not mount the unit upside down, do not use solid core cable, do not remove/tamper with circuit boards, and ensure all fixing hole caps are inserted.

Before use

  • Isolate the mains supply before starting installation.
  • Ensure the installation is performed by a competent person.
  • Check that the duct size is 100mm or 125mm (150mm with optional adaptor).
  • Verify that the unit is not mounted upside down.
  • Ensure the pullcord is not fitted if the unit is installed above a kitchen hob.
Show more Show less

Specs in practice

Intellitrac Technology
Senses relative humidity and automatically adjusts fan speed.

Images and diagrams

  • The exploded view shows the assembly order: Duct Adaptor, Rear Carcass, Central Cartridge, Impeller, and Front Cover.
  • Wiring diagrams are provided for both 230V and SELV configurations, showing the connection to the local isolator.

Model compatibility

  • Compatible with 100mm, 125mm, and 150mm (with adaptor) ducts.
  • SELV variants are restricted to bathroom duty only.
  • Optional kits available for ceiling, recess, inline, and window mounting.
