This document provides essential instructions for operating the Ernitec 0070-24222-AC-M surveillance monitor. It covers initial setup, connection options, OSD menu navigation, and basic maintenance to ensure optimal performance.
Connection Options
The monitor features multiple input and output ports located on the back panel. Ensure all cables are securely connected before powering on the device.
- HDMI Input: For high-definition video sources.
- VGA Input: For standard PC video connections.
- BNC Inputs (1 & 2): Used for professional video processors or surveillance equipment.
- BNC Output: For daisy-chaining to another monitor.
- Audio In/Out: For sound input and output connections.
Basic OSD Setup
Use the buttons on the front panel or the remote control to access and navigate the On-Screen Display (OSD) menu.
- Menu Access: Press the MENU button to open the main interface.
- Navigation: Use the arrow buttons to select submenus and adjust settings.
- Picture Settings: Adjust Contrast, Brightness, Color, Tint, Sharpness, Color Temp, Aspect Ratio, and Picture Mode.
- Sound Settings: Configure Bass, Treble, Balance, Sound Mode, and Auto Volume.
- Option/Function: Manage OSD language, duration, transparency, and software updates via USB.
Remote Control
The remote control allows for convenient operation of the monitor. Key functions include:
- Power: Toggle standby mode.
- Mute: Silence audio.
- Input: Cycle through available video sources (VGA, BNC1, BNC2, HDMI, YPBPR).
- Picture: Cycle through video picture modes.
Maintenance and Cleaning
To keep the monitor in good condition:
- Cleaning the screen: Use a soft cloth dampened with a mixture of lukewarm water and a mild fabric softener or dish detergent. Wring the cloth until almost dry before wiping. Allow the screen to air-dry completely before turning it back on.
- Cleaning the cabinet: Use a soft, dry, lint-free cloth. Do not use wet cloths on the cabinet.
- Extended Absence: If the monitor will not be used for a long period, unplug the power cord to protect against power surges.
Safety Instructions
Always follow these safety precautions:
- Do not expose the apparatus to rain or moisture.
- Keep the monitor away from heat sources like radiators or amplifiers.
- Unplug the device during lightning storms.
- Protect the power cord from being walked on or pinched.
- Refer all servicing to qualified personnel; do not remove the back cover.
Manufacturer information
Ernitec
Practical help

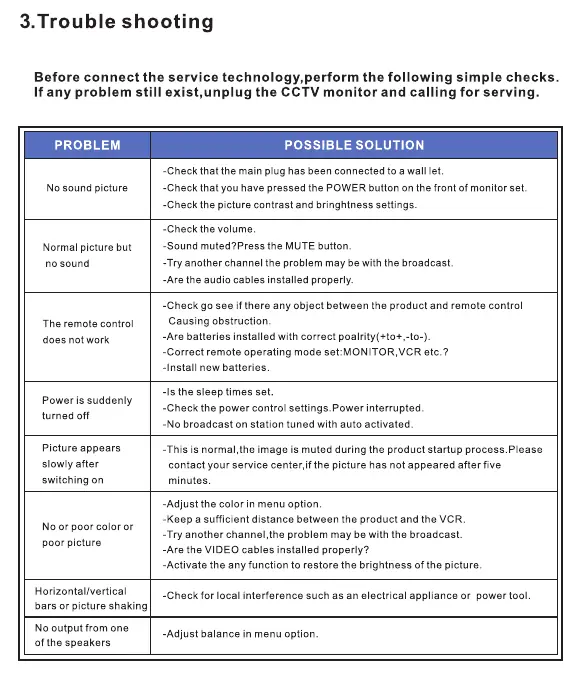

Common problems
No signal / Out of range
Check if the signal cable is connected, verify the input source, and adjust the resolution or frequency.
No sound
Check the volume level, ensure the mute function is off, and verify that audio cables are properly connected.
Remote control not working
Check for obstructions, ensure batteries are installed correctly (CR2032), and verify the monitor is in the correct mode.
Vertical/Horizontal bars or noise
Perform an auto-configure or adjust the clock, phase, or H/V position in the menu.
Before use
- Connect the power cord to a dedicated circuit.
- Ensure all signal cables (HDMI, VGA, BNC) are securely connected.
- Install CR2032 batteries in the remote control.
- Select the correct input source using the INPUT button.
- Ensure the monitor is placed on a stable surface or mount.
Specs in practice
- Aspect Ratio
- Allows switching between display formats like 4:3, Panorama, Zoom, and Point-to-Point.
Images and diagrams
- The connection panel diagram identifies ports 1-8, including power, HDMI, VGA, BNC inputs/outputs, and audio ports.
- The remote control diagram illustrates the layout of buttons for power, menu navigation, input selection, and picture settings.
Model compatibility
- Supports VGA, HDMI, and BNC video inputs.
- Designed for surveillance applications.
- Remote control requires CR2032 3V batteries.
