This document provides instructions for the Ernitec 0070-24143-L monitor. It covers initial setup, connection options, OSD menu navigation, and basic troubleshooting. Ensure you read the safety instructions before operating the device.
Connections
The monitor supports multiple input sources. Connect your devices to the rear panel ports:
- HDMI: Connect to HDMI input.
- VGA: Connect to VGA input.
- BNC Input/Output: Connect BNC cables for CCTV processors or daisy-chaining monitors.
- Audio: Use Audio In for sound and Audio Out for external speakers.
Remote control and batteries
The remote control allows you to manage the monitor settings from a distance. To install batteries:
- Open the battery compartment cover on the back of the remote.
- Insert one CR2032 3V battery, ensuring correct polarity.
- Close the cover.
- Point the remote towards the sensor on the monitor (effective range up to 7 meters).
OSD menu settings
Use the buttons on the front panel or the remote control to access the On-Screen Display (OSD) menu:
- Picture: Adjust Contrast, Brightness, Color, Tint, Sharpness, Color Temp, Aspect Ratio (4:3, Panorama, Zoom, etc.), and Picture Mode.
- Sound: Adjust Bass, Treble, Balance, Sound Mode, and Auto Volume.
- Option/Function: Configure OSD Language, OSD Duration, Transparency, Auto Adjust, and Software Update via USB.
Troubleshooting
If you encounter issues, perform these checks:
- No sound/picture: Ensure the power plug is connected and the power button is on. Check contrast and brightness settings.
- Normal picture but no sound: Check volume levels, ensure the device is not muted, and verify audio cable connections.
- Signal out of range: Adjust resolution, horizontal/vertical frequency, or check the signal cable.
- Remote not working: Check batteries, ensure there are no obstructions, and verify the correct operating mode.
Maintenance
To clean the screen, use a soft cloth with a mixture of lukewarm water and a mild fabric softener or dishwashing detergent. Wring the cloth until it is almost dry before wiping. Ensure the screen is completely dry before turning the monitor back on. Use a soft, dry, lint-free cloth to clean the cabinet.
Safety instructions
- Do not expose the apparatus to rain or moisture.
- Do not block ventilation openings.
- Unplug the monitor during lightning storms or when unused for long periods.
- Protect the power cord from being walked on or pinched.
- Refer all servicing to qualified service personnel.
Manufacturer information
Ernitec
Practical help
Common problems
No sound or picture
Check that the main plug is connected, the power button is on, and adjust contrast/brightness settings.
Normal picture but no sound
Check volume levels, ensure the Mute function is off, and verify audio cable connections.
Signal out of range
Adjust the resolution, horizontal frequency, or vertical frequency of the source device.
Remote control does not work
Check battery polarity, ensure there are no obstructions between the remote and sensor, and verify the operating mode.
Before use
- Ensure the power cord is connected to a dedicated circuit.
- Install a CR2032 3V battery in the remote control.
- Connect signal cables (HDMI, VGA, or BNC) securely to the rear ports.
- Place the monitor in a well-ventilated area away from heat sources.
- Ensure the monitor is turned off before connecting or disconnecting cables.
Specs in practice
- BNC Input/Output
- Used for connecting CCTV processors or daisy-chaining multiple monitors.
- Aspect Ratio
- Allows switching between display formats like 4:3, Panorama, Zoom1, Zoom2, and Point-to-Point.
Images and diagrams

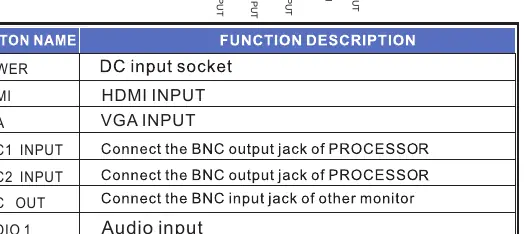

- The rear panel contains ports for HDMI, VGA, BNC Input/Output, and Audio In/Out.
- The remote control provides dedicated buttons for Input selection, Menu navigation, and Picture adjustments.
Model compatibility
- Supports VGA, HDMI, and BNC input sources.
- PC connection via VGA supports plug-and-play (DDC protocol) for automatic configuration.
