Instruction manual for ESAB Rogue ES 181iP PRO and ES 201iP PRO welding power source
Quick guide for the ESAB Rogue ES 181iP PRO and ES 201iP PRO welding power sources. Includes installation, operation, maintenance, and troubleshooting procedures.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for the safe operation and maintenance of the ESAB Rogue ES 181iP PRO and ES 201iP PRO welding power sources. Users must read the full safety chapter before operating the equipment. The device is intended for industrial use and requires professional installation.
Safety
Arc welding can be hazardous. Always wear appropriate personal protective equipment (safety glasses, flame-proof clothing, gloves). Ensure the workplace is free from drafts and unauthorized personnel. Be aware of risks including electric shock, electromagnetic fields, fumes, arc rays, and noise. Do not use the power source for thawing frozen pipes.
Installation
The unit must be installed by a professional. Ensure cooling air inlets and outlets are not obstructed (minimum 200 mm clearance). The power source automatically adjusts to the input voltage. Ensure a protective ground connection is made and the unit is protected by the correct fuse rating.
Operation
The device supports MMA/Stick and TIG/GTAW welding. Connect welding and return cables according to the chosen method. Use the setting panel to select the welding process and adjust parameters like current, Hot Start, and Arc Force. The unit features thermal protection; if it overheats, welding stops automatically until the temperature drops.
Maintenance
Regular maintenance is crucial for safe operation. Disconnect from mains before any cleaning. Every 3 months, clean or replace unreadable labels, clean weld terminals, and check cables. Every 6 months, clean the inside of the equipment using dry compressed air at reduced pressure.
Troubleshooting
Before contacting a service technician, check cable connections, ensure the correct welding process is selected, verify the return clamp contact, and check for thermal protection trips. Ensure air inlets are not clogged.
Manufacturer information
ESAB
Practical help
Common problems
No arc
Check power switch, verify display is on, check cable connections, and inspect electrical fuses.
Welding current interrupted
Check if the thermal protection LED is lit; allow the unit to cool down.
Thermal protection trips frequently
Ensure duty cycle is not exceeded, check that air inlets/outlets are not clogged, and clean the inside of the machine.
Before use
- Ensure product and cables are not damaged.
- Verify the torch is clean and undamaged.
- Ensure the return cable is securely connected.
- Check that the workplace is suitable and free from drafts.
- Wear recommended personal safety equipment.
Images and diagrams

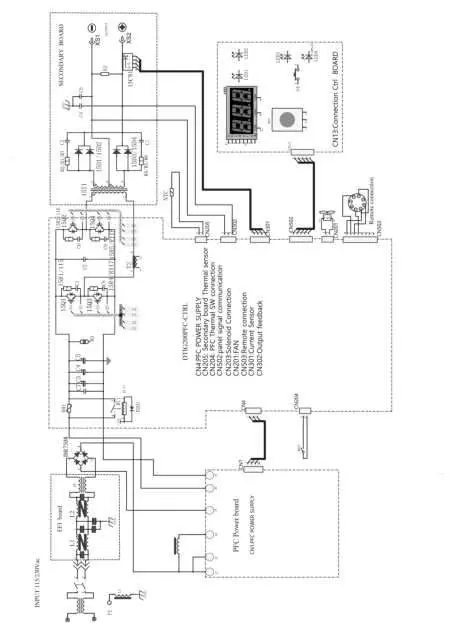

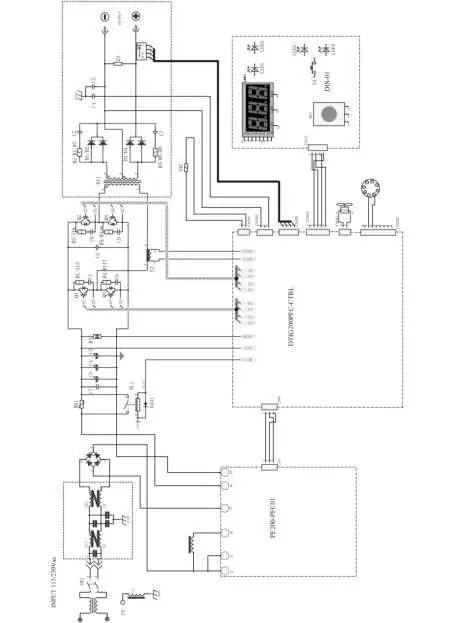

- The manual includes electrical diagrams for different serial number ranges (HA427 and HA428).

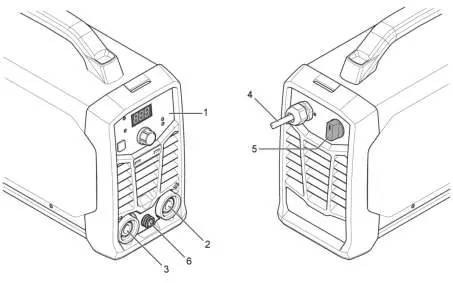

- The setting panel diagram identifies the process selection button, control knob, and various indicators.
Model compatibility
- Class A equipment is not intended for use in residential locations.
- If using a generator, it must have Automatic Voltage Regulation (AVR) and a rated power of at least 7 kW.
