Installation Guide for EXIT TOYS Linea Robust Swing Set + Tumble Bar + Slide

Important Information

This swing set is designed for outdoor use only. It is essential to follow all assembly instructions carefully to ensure the safety of the users. The maximum weight capacity is 350kg in total, with a maximum of 70kg per individual seat. Adult assembly is required.

Parts Overview

Before beginning assembly, verify that all parts are present. The set includes various beams, brackets, swing seats, a slide, and hardware (bolts, screws, caps). Refer to the parts list on page 2 of the manual to identify components 1 through 31.

Assembly Instructions

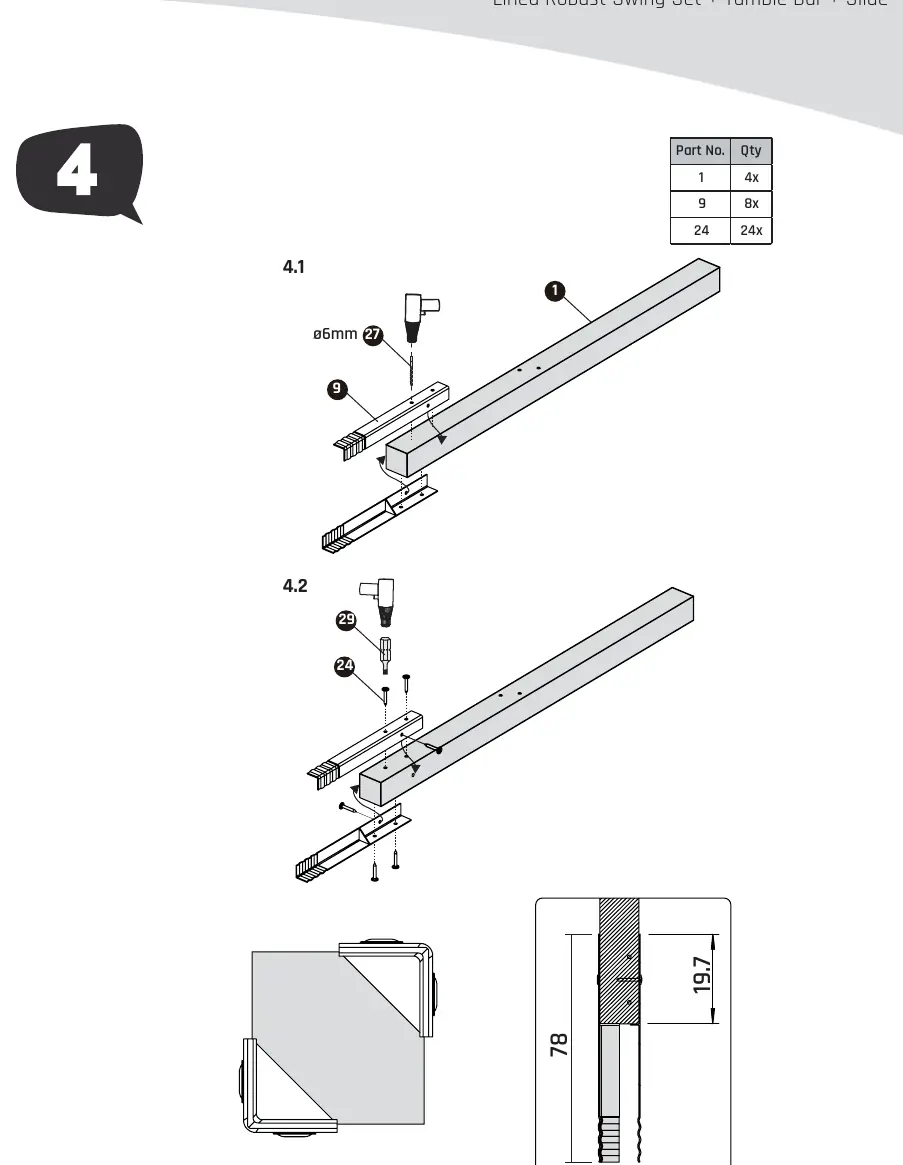

1. Drilling and Preparation: Use the provided templates to drill holes in the wooden beams. Ensure you use the correct drill bit sizes (6mm and 12mm) as specified in the diagrams for each step.

2. Frame Assembly: Assemble the main frame by connecting the beams using the provided brackets and hardware. Ensure all connections are tight and the frame is level.

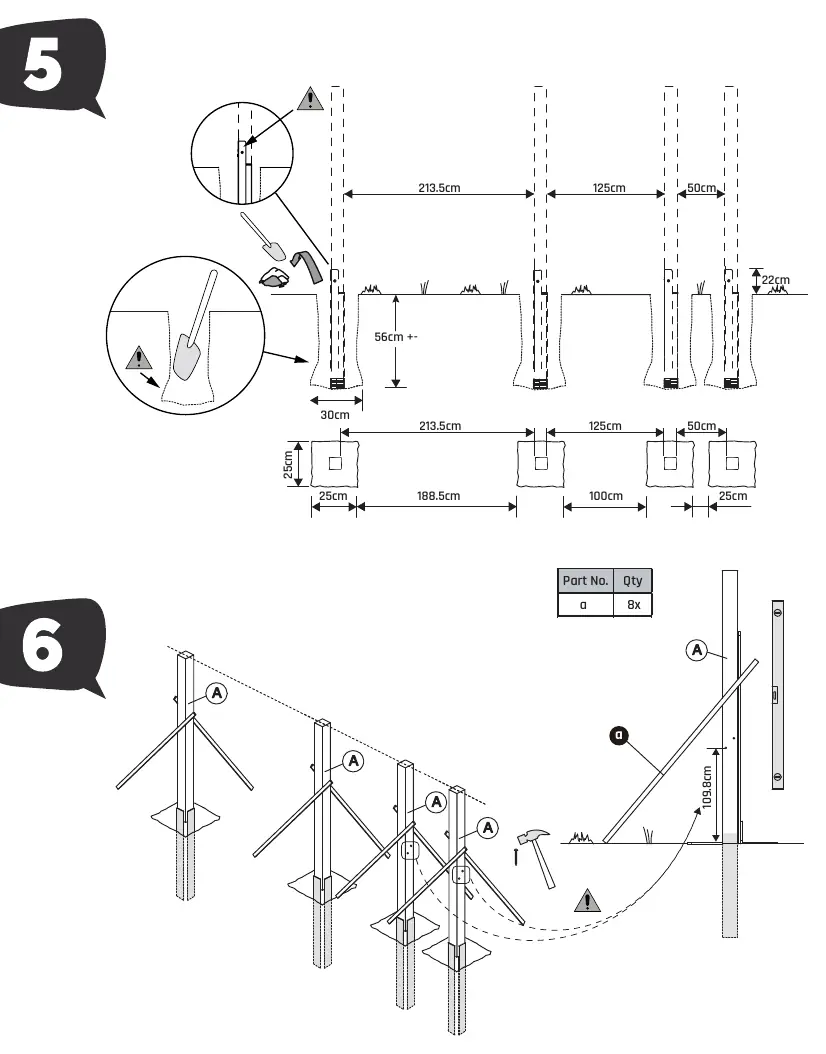

3. Anchoring: Dig holes for the anchors as specified in the manual. The swing set must be anchored securely into the ground using concrete to prevent tipping.

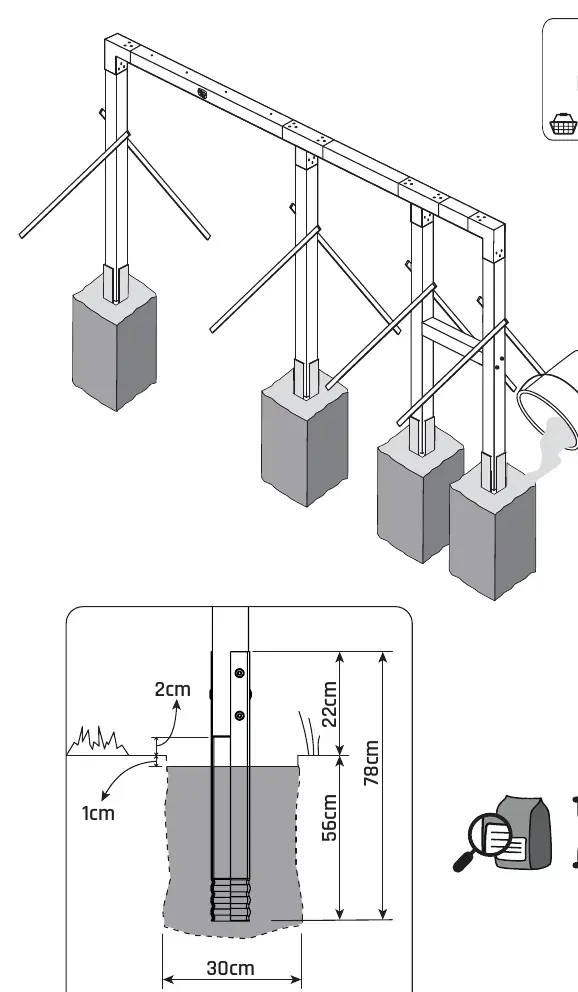

4. Concrete Pouring: Place the frame in the holes and pour concrete (16 bags of 25kg required) around the base of the posts. Ensure the frame remains level while the concrete sets.

5. Attaching Accessories: Once the structure is stable, attach the swing seats, tumble bar, and slide. Ensure all swing hooks are securely fastened and the slide is properly aligned and screwed into place.

Safety and Maintenance

Regularly check all bolts and screws to ensure they remain tight. Inspect the swing hooks and ropes for wear and tear. Ensure there is sufficient clearance around the swing set to prevent collisions.
