User Manual for EXIT Toys Swimming Pool Dome 10FTX6.6FT
Quick guide for the EXIT Toys Swimming Pool Dome. Includes safety instructions, installation steps, maintenance, and warranty information.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for the EXIT Swimming Pool Dome. It is essential to read and understand all safety rules before installation. The dome must be installed and operated by at least two adults. Always ensure sufficient ventilation and never enter the pool when the dome is completely closed.





Safety Instructions
- Always install the Pool Dome with at least 2 adults.
- Opening and closing the Pool Dome must be executed by two adults.
- Keep a sufficient distance around the pool and the Pool Dome: at least 2 metres around and 2.5 metres above the highest point.
- Keep hands and fingers away from moving parts. Always open and close the Pool Dome from the long side or from the corner points.
- Never allow children in the pool unsupervised.
- Make sure there are no open fires, grills, or patio heaters in or near the Pool Dome.
Maintenance
- Check the Pool Dome regularly for loose parts and tighten screw connections if necessary.
- The material cannot withstand freezing cold; always take the Pool Dome apart after the summer season.
- Ensure the dome is completely dry before storage to prevent mould.
Use and Wind
- When in doubt, always completely close and anchor the Pool Dome.
- Always anchor the Pool Dome with the provided rubber bands, both when completely closed and completely opened.
- Never leave the Pool Dome unattended when it is partly open.
- Wind force 2: May be left partially open.
- Wind force 4: May be left completely closed.
- Wind force 5: Must be opened and anchored.
- Wind force 6: Must be dismantled.
Warranty
The owner has a 1-year warranty on the frame and gas springs, and a 3-month warranty on the PVC fabric. The warranty covers material and construction defects and is void if the product is used incorrectly, not assembled according to the manual, or used in public areas.
Practical help
Common problems
Always anchor the dome with provided rubber bands. If wind force is > 5, open and anchor. If > 6, dismantle.
Ensure the dome is completely dry before putting it into storage in a damp-free environment.
Regularly check and tighten all screw connections.
Before use
- Ensure at least 2 adults are present for installation.
- Check that the area around the pool is clear (2m around, 2.5m above).
- Verify all parts are present according to the instructions.
- Ensure no open fires or heat sources are near the dome.
- Check that the dome is properly anchored with rubber bands.
Specs in practice
- Wind force 2
- Dome may be left partially open.
- Wind force 4
- Dome may be left completely closed.
- Wind force 5
- Dome must be opened and anchored.
- Wind force 6
- Dome must be dismantled.
Images and diagrams

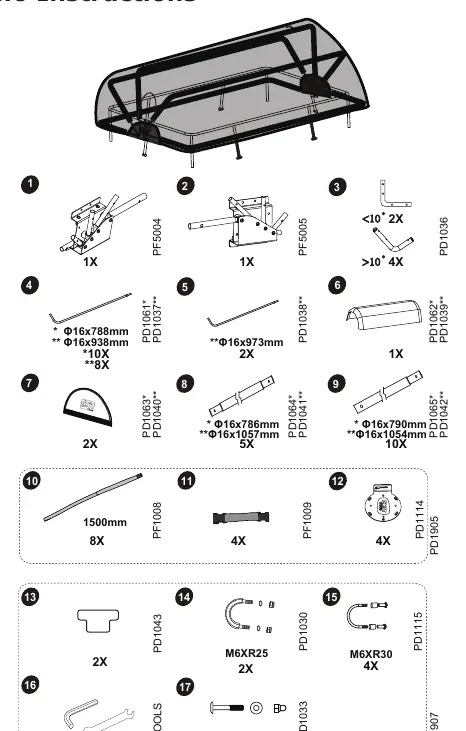

- Page 3: Parts reference list for assembly.

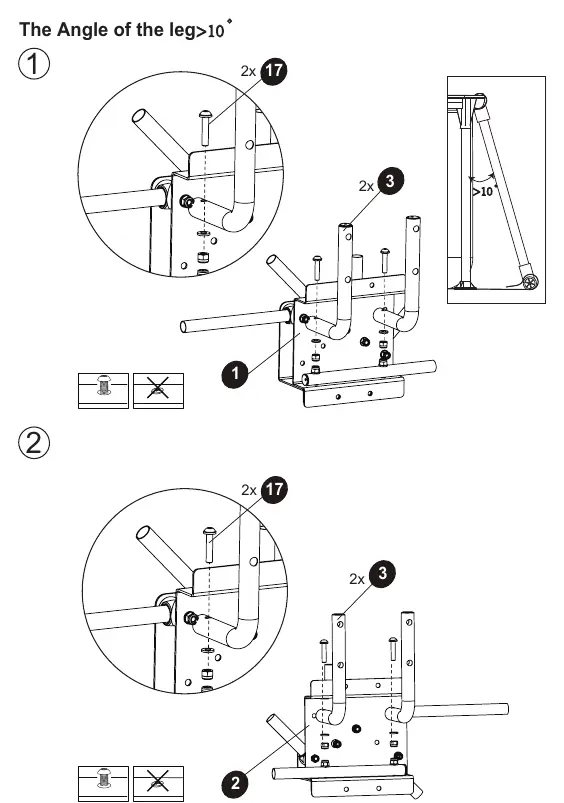

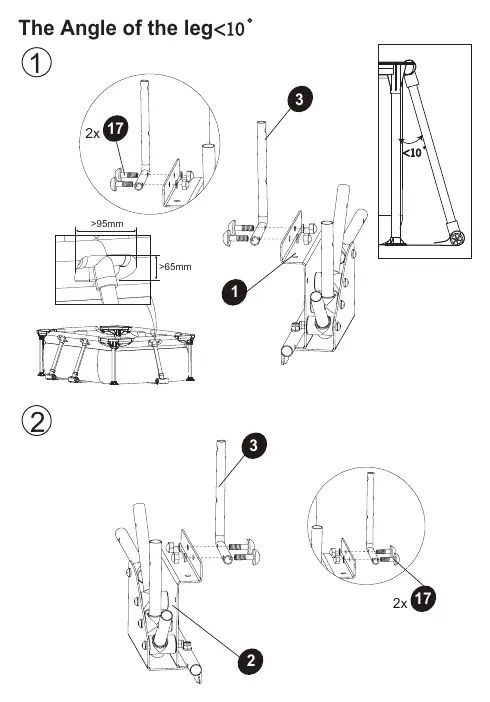

- Page 4-6: Leg angle adjustment instructions (>10° or <10°).

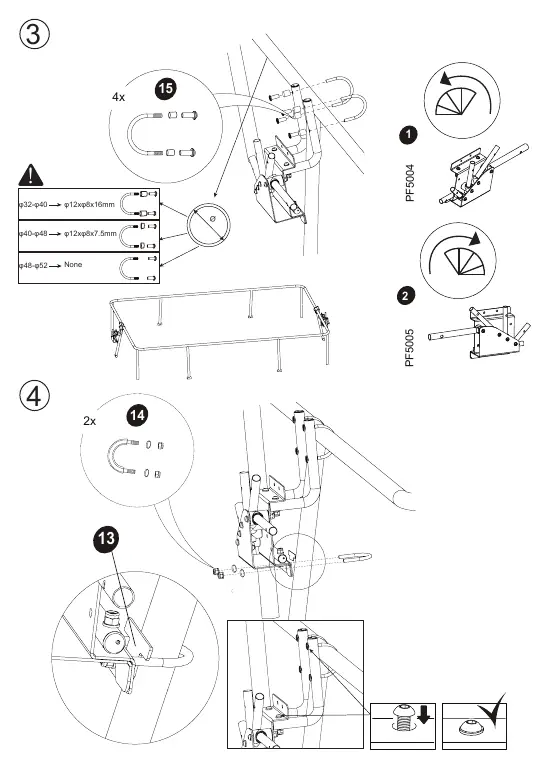

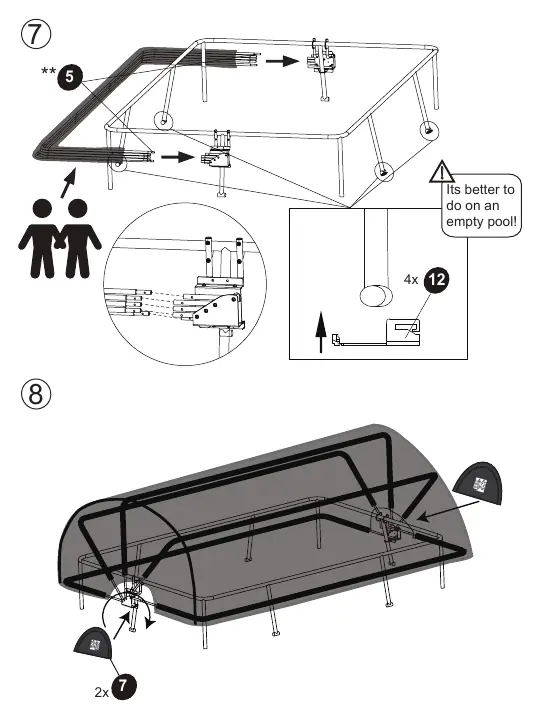

- Page 5, 7: Assembly steps for the frame and dome attachment.
- Page 9-12: Step-by-step instructions for securing the dome to the pool frame.
Model compatibility
- Exclusively for use with suitable EXIT Pools.
- Not for use with other brands or types of pools.
