User Manual for FBT 2-String Profiline Solar Generator Connection Box
Comprehensive user guide for the FBT 2-String Profiline solar generator connection box. Includes installation guidelines, technical specifications, wiring diagrams, and safety instructions.
Quick answers from the manual
Quick answer
- The FBT 2-String Profiline is a solar generator connection box for PV systems, rated IP65. It should be mounted on an even surface in a weather-protected area, following the wiring diagram on page 11. p. 1, 7, 11
Key actions
- Mounting the device p. 4, 5, 6
- Wiring the strings p. 11
Problems and fixes
Condensation buildup
Check the pressure compensation element for obstructions.
p. 5Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Voltage | 1000V DC | Maximum insulation voltage | p. 8 |
| Max Current | 24A | Rated current | p. 8 |
| Protection Class | IP65 | Ingress protection rating | p. 5, 8 |
Where to find it in the PDF
- Technical Data p. 8
- Wiring Diagram p. 11
Table of contents
Manual images
Click an image to enlargeImportant Information

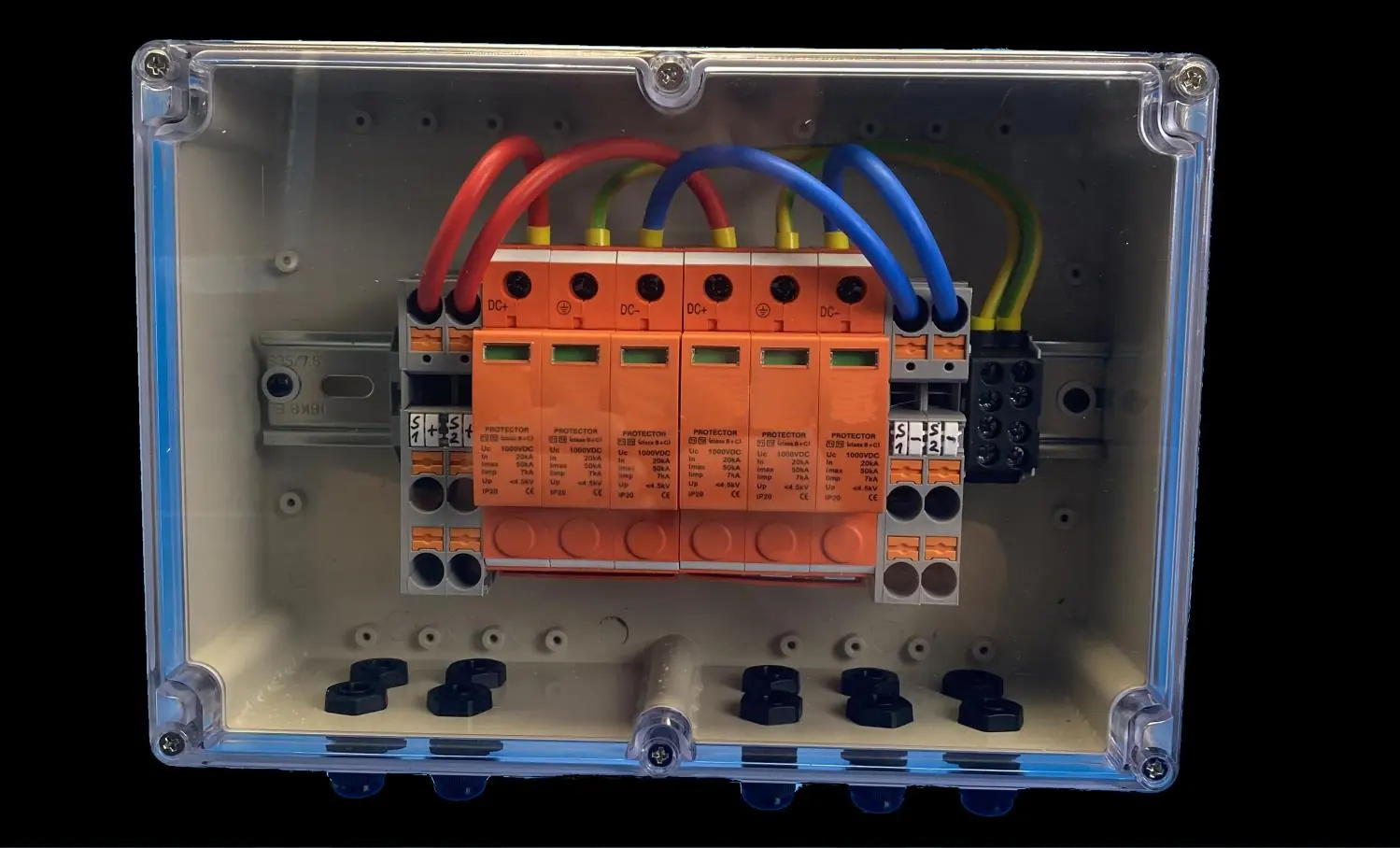

The FBT 2-String Profiline is a solar generator connection box designed for photovoltaic systems. This document provides essential guidelines for installation, operation, and safety. The device is rated IP65, ensuring protection against dust and water jets, and is constructed from glass-fiber reinforced polycarbonate.
Safety and Environmental Protection
To ensure safe operation and longevity of the device, observe the following precautions:
- Fire Protection: The housing meets class V-2 flammability standards. Perform a risk analysis of the installation site regarding fire hazards.
- UV Protection: While the housing is UV-resistant, avoid installation sites with permanent, intense direct UV radiation to extend the lifespan of components.
- Temperature: Ensure the device is installed in a location that prevents overheating. Maintain sufficient distance from heat sources and ensure air circulation.
- Condensation: The device is equipped with a pressure compensation element to prevent condensation buildup. Ensure this element is not obstructed.
- Chemicals: The housing is resistant to mineral oils and animal/vegetable fats, but avoid exposure to harmful chemicals.
Installation
Follow these guidelines for proper mounting:
- Choose an even, stable mounting surface.
- Install the device in a wind- and weather-protected area.
- Ensure all cable glands and connections are properly tightened and sealed.
- Do not install in locations prone to standing water or extreme mechanical stress.
Wiring
Refer to the wiring diagram provided in the manual for connecting solar strings. Ensure that the wiring for String 1 and String 2 is performed according to the specified cross-sections (4mm² for DC, 6mm² for PE). Verify all connections are secure before commissioning.
Technical Specifications
Key technical parameters for the 2-String Profiline:
- Max Insulation Voltage: 1000V DC
- Max Current (InA): 24A
- Protection Class: IP65
- Dimensions: 350 x 250 x 150 mm
- Weight: Approx. 2 kg
- Operating Temperature: -25°C to +45°C
- Mounting Type: Surface-mounted (Wall mounting)
Maintenance and Disposal
Regularly inspect the housing for damage and ensure the pressure compensation element is clean. At the end of its service life, the device must be disposed of according to local WEEE regulations. Do not dispose of it with household waste.
Manufacturer information
FBT Elettronica SpA
Practical help
Common problems
Condensation inside the housing
Ensure the pressure compensation element is clear and the box is mounted in a weather-protected area to minimize temperature fluctuations.
Overheating of internal components
Avoid direct sunlight and ensure sufficient air circulation around the box.
Before use
- Verify the mounting surface is even and stable.
- Ensure the installation location is protected from direct weather and UV radiation.
- Check that all cable glands are tightened correctly.
- Confirm the wiring matches the provided diagram for String 1 and String 2.
Images and diagrams

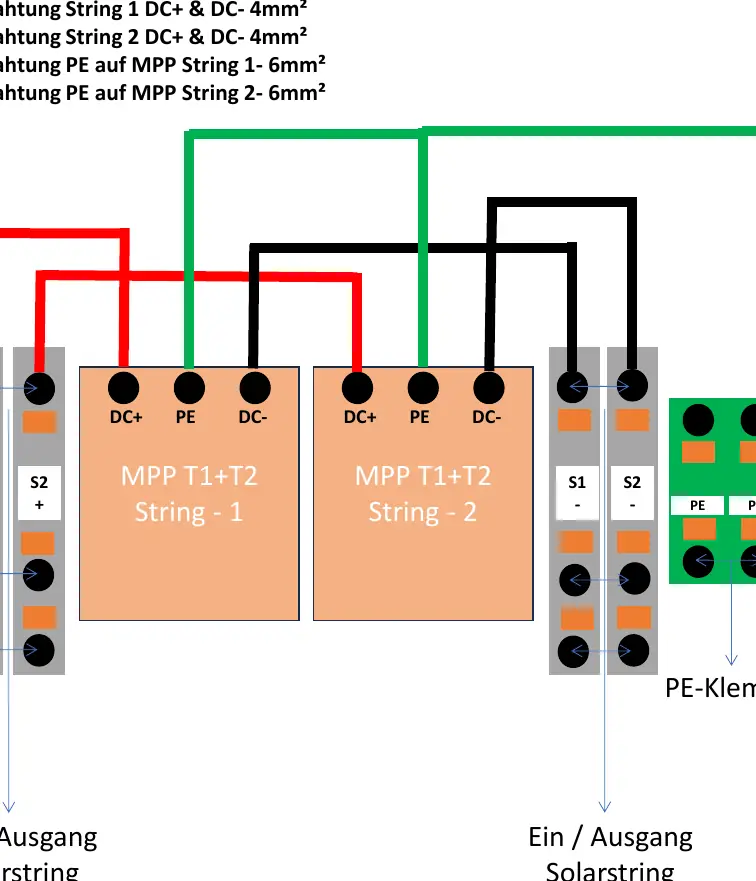

- The wiring diagram illustrates the connection of two solar strings (String 1 and String 2) to the MPP trackers.
- It highlights the specific cable cross-sections required for DC and PE connections.
Model compatibility
- Suitable for outdoor use only if protected from direct weather and extreme UV exposure.
- Compatible with standard PV string configurations as specified in the technical data.
