User Manual for Fieldmann FDV 10351-A Cordless Drill
Quick guide for the Fieldmann FDV 10351-A cordless drill. Includes setup, charging instructions, torque settings, drilling tips, maintenance, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Fieldmann FDV 10351-A is a cordless drill designed for screwing and drilling tasks. Before first use, ensure the battery is fully charged (recommended 3-5 hours). To operate, insert the battery, select the desired torque setting, and use the trigger switch to control speed. Always remove the battery before changing tools or performing maintenance.
Machine description
The drill features a keyless chuck for easy tool changes, a torque setting ring with 15+1 positions, a rotation direction switch (forward/back/neutral), a trigger switch, and an LED battery charge indicator. It also includes an integrated LED light for the working area.
Putting into operation
Charging: Remove the battery by pressing the release button. Place the charger on a table near a power socket and insert the battery. Connect the charger to the power source. The red and green lights will turn on. Once fully charged, the green light remains on, and the red light turns off.
Drill chuck: Hold the rear part of the chuck and turn the front part anticlockwise to open. Insert the tool, then turn the front part clockwise to tighten.
Torque control: Use the setting ring to adjust screwing strength. Use low values for small screws and soft materials, and high values for large screws and hard materials.
Instructions for proper use
Screwing: Drill a pilot hole before screwing into wood to prevent surface damage. Use slow rotation speeds.
Drilling: Do not use torque control when drilling into wood; select the standard drilling position. Use wood bits for wood and metal bits for metal/plastic. Use maximum speed for soft wood and lower speed for hard wood.
Maintenance and storage
Regularly check for worn or damaged parts. Clean plastic parts with a soft cloth and lukewarm water; do not use aggressive solvents. Do not submerge the tool in water. Store in a dry place away from heat sources and dangerous vapors. If the tool malfunctions, contact an authorized service center.
Technical specifications
- Nominal voltage: 14.4V
- Idling speed: 0-400 / 0-1500 rpm
- Battery: 1.3Ah, Li-ion
- Torque: 15 positions + 1 drilling position
- Max. diameter: 10mm
Manufacturer information
Fieldmann
Practical help
Common problems
Drill bit jams during operation
Stop immediately, hold the drill firmly, and check for obstructions.
Battery not charging
Ensure the battery is inserted correctly into the charger and the charger is connected to a power source.
Motor overheating
Reduce pressure on the tool; do not overload. Excessive pressure lowers effectiveness and can damage the motor.
Before use
- Charge the battery fully (3-5 hours for the first charge).
- Check that the drill bit or screwdriver bit is sharp and correctly seated.
- Ensure the rotation direction switch is set to the desired position.
- Verify the workpiece is securely clamped to a workbench.
- Check for hidden electrical conductors in the wall using a metal detector.
Specs in practice
- Nominal voltage
- 14.4V DC power supply.
- Idling speed
- 0-400 rpm (low gear) / 0-1500 rpm (high gear).
- Max. diameter
- Maximum drill bit diameter is 10mm.
Images and diagrams

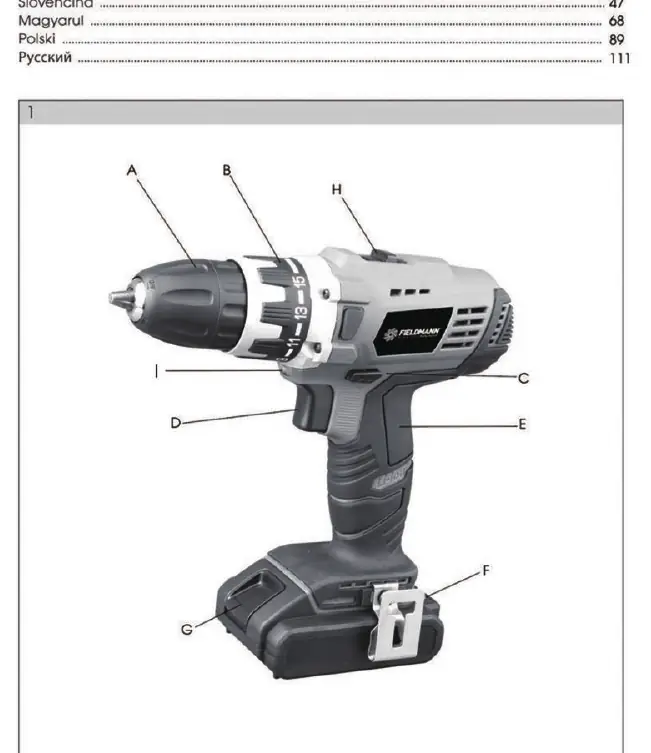

- Pic 1: Overview of drill parts including chuck, torque ring, and trigger.
- Pic 3: How to open and close the keyless chuck.
- Pic 4: Torque setting ring positions.
- Pic 6: LED battery charge level indicator.
Model compatibility
- Use only the battery and charger supplied with this tool.
- Do not use in an outdoor environment or damp locations.
- Not designed for professional use.
