User Manual for Fieldmann FZLS 1008V-E Log Splitter
Quick guide for the Fieldmann FZLS 1008V-E log splitter. Includes assembly instructions, operation procedures, maintenance tips, and troubleshooting steps.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the safe and efficient operation of the Fieldmann FZLS 1008V-E log splitter. Always read the full safety instructions before use. Ensure the machine is placed on level, solid ground and that the work area is clear of debris and bystanders.
Safety Warnings
- Personal Protective Equipment: Always wear safety footwear, protective gloves, eye protection, and hearing protection.
- Work Area: Keep the area tidy and well-lit. Do not operate in rain or damp conditions.
- Electrical Safety: Ensure the power supply is protected by a residual current device (RCD). Use extension cords suitable for outdoor use (max 10m, min 2.5mm² diameter).
- Operation: Only one person should operate the machine. Never remove jammed logs with your hands.

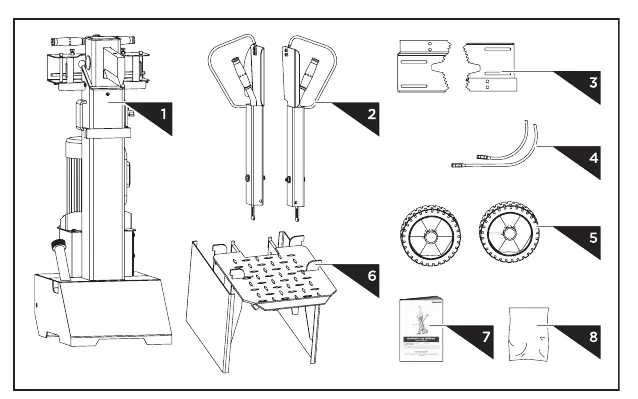

Assembly
Wheels: Pass the axle through the wheel and washers, slide into the base holes, secure with a washer and R-pin, and attach the wheel cap.
Support Table: Loosen the star knob, unfold the table, insert the hooks into the mount brackets, and tighten the star knob.
Control Levers: Apply grease to the guard surfaces. Insert the lever assembly, ensuring the lever end enters the connection bracket slot. Secure with the lock pin and spring pin.
Adjustable Log Holder: Assemble retainers onto the clamps using M6x16 bolts, washers, and nuts. Secure the clamps to the armguards using star knobs.
Operation
Preparation: Ensure the log splitter is fixed to the ground using M10x30 bolts. Loosen the oil tank cover (Air Bleed) before use and retighten after finishing.
Setting Wedge Stroke: Move the splitting wedge to the desired position (about 3-5cm above the log). Release the setscrew, raise the adjusting rod until it hits the internal spring, and tighten the setscrew.
Two-Handed Operation: Lower both control levers to start splitting. Releasing either lever stops the wedge. Releasing both returns the wedge to the top position.
Maintenance
Hydraulic Oil: Check the oil level regularly using the dipstick. It should be 1-2 cm below the upper surface of the tank. Change the oil completely once a year. Recommended oils: SHELL Tellus 22, MOBIL DTE 11, ARAL Vitam GF 22, or BP Energol HLP-HM 22.
Sharpening: Use a fine-toothed file to remove burrs or flat spots from the splitting wedge edge.
Troubleshooting
If the motor does not start, check the mains fuse, extension line, or switch. If the motor rotates in the wrong direction, change the pole switching device in the plug. If the splitter fails to work or vibrates abnormally, check the hydraulic oil level and tighten any loose connection parts.
Manufacturer information
Fieldmann
Practical help
Common problems
Motor does not start
Check mains fuse, replace defective extension line, or have the switch checked by an electrician.
Incorrect motor rotation direction
Change the pole switching device inside the plug with a screwdriver or have it reversed by an electrician.
Log splitter does not work while motor is running
Check if the valve is opened, tighten connection parts, repair bent levers, or refill hydraulic oil.
Abnormal vibration and noise
Check and refill hydraulic oil level.
Before use
- Check that all guards are in place and in working order.
- Ensure all nuts, bolts, and hydraulic fittings are securely tightened.
- Check the hydraulic oil level (1-2 cm below the tank surface).
- Ensure the work area is tidy, well-lit, and free of obstructions.
- Verify that the power supply matches the motor requirements (230V, 50Hz).
- Wear appropriate safety gear: eye protection, gloves, and non-skid footwear.
Specs in practice
- Maximum Force
- 8 Ton splitting capacity.
- Log Size Capacity
- Handles logs 8-30 cm in diameter and 10-55 cm in length.
- Hydraulic Oil Capacity
- 4 Liters.
- Motor Duty Cycle
- S6 40% (10-minute cycle: 4 minutes load, 6 minutes no-load).
Images and diagrams
- Wiring Diagram: Illustrates electrical connections for different model variants.
- Hydraulic System Diagram: Shows the closed-loop hydraulic circuit.
- Parts Schematic: Exploded view of all machine components for identification.
Model compatibility
- Use only recommended hydraulic oils: SHELL Tellus 22, MOBIL DTE 11, ARAL Vitam GF 22, or BP Energol HLP-HM 22.
