User Manual for Fieldmann FZV 2102-E Electric Scarifier
Quick guide for the Fieldmann FZV 2102-E Electric Scarifier. Includes assembly instructions, operation, blade replacement, maintenance, and technical specifications.
Quick answers from the manual
Quick answer
- The Fieldmann FZV 2102-E is an electric scarifier for private lawns. It features a 1300W motor, 32cm working width, and a 40L collection basket. p. 3, 14
Key actions
- Starting the machine p. 12
- Replacing blades p. 11
First start
- Assemble the handle and basket, check all bolts, and ensure the work area is clear of debris before connecting to power. p. 6, 9, 10
Show 4 more answers Show less
Problems and fixes
Motor overload
Release the starting lever, remove obstacles, and wait for the safety mechanism to reset.
p. 13Maintenance and reset
- The motor safety mechanism resets automatically after the starting lever is released and the machine is left for several minutes. p. 13
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated power | 1300 W | Power consumption | p. 14 |
| Working width | 32 cm | Scarification width | p. 14 |
Where to find it in the PDF
- Assembly p. 9, 10
- Operation p. 12
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Fieldmann FZV 2102-E is an electric scarifier designed for aerating lawns in private gardens. Before use, ensure all safety mechanisms are intact and the work area is clear of debris. Always wear protective gear and avoid working in wet conditions. The machine is protected by a safety mechanism that stops the motor if the blades are caught or the engine is overloaded.
Description of the machine
The machine consists of a main switch, safety lock, power cord, adjustable handle, working depth control, and a 40L collection basket. Refer to the diagram in the manual for the exact location of these components.
Assembling the machine
Follow these steps to assemble:
- Attach the bottom handle parts using the provided screws and adjust height.
- Secure the middle handle part with the power cord safety clamp.
- Attach the top handle part.
- Secure the power cord to the handle using plastic clips.
- Assemble the collection basket by attaching the textile basket to the steel frame.
- Install the basket onto the scarifier by lifting the protective cover and placing it on the fastening points.

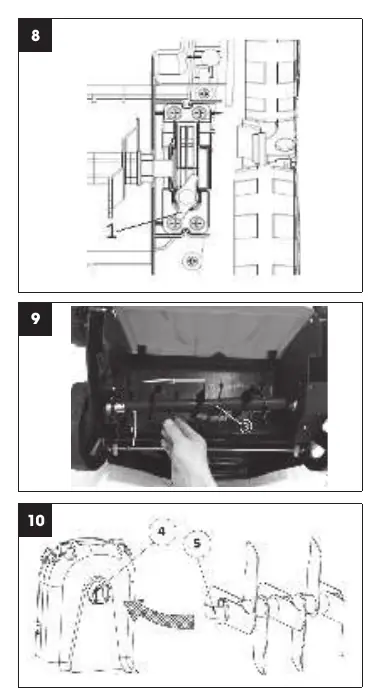

Replacing blades
Danger: Disconnect from power before maintenance and wear work gloves.
- Unscrew the bolt on the underside of the chassis.
- Lift the cylinder at an angle and remove it.
- Slide the new cylinder onto the drive shaft, ensuring the pin fits correctly into the drive shaft.
- Tighten the screw to secure.
Operation
To start the machine, press and hold the safety button, then pull the starting lever to the handle. To stop, simply release the starting lever. Do not turn the machine on and off in rapid succession.
Maintenance
Clean the scarifier after every use. Remove grass and debris from the wheels, cylinder, and cover. Do not use high-pressure water or pointed items for cleaning. If the motor stops due to overload, release the starting lever, remove obstacles, and wait several minutes before restarting.
Technical specifications
- Rated power: 1300 W
- Working width: 32 cm
- Working depth: +10 to -12 mm
- Collection basket capacity: 40 l
- Weight: 11.0 kg
- Protection class: IPX4
Manufacturer information
Fieldmann
Practical help
Common problems
Motor stops during operation
The safety mechanism has been activated due to overload or caught blades. Release the starting lever, remove obstacles, and wait several minutes before restarting.
Poor scarification results
Check for blade wear and adjust the working depth using the adjustment control.
Before use
- Check that all safety mechanisms (start lever, safety brake, rear lid) are functional.
- Ensure all nuts and bolts are tightened.
- Inspect the work area for foreign objects like stones or branches.
- Wear solid footwear and long pants.
- Ensure the power cord is in good condition.
Show more Show less
Specs in practice
- Working width
- 32 cm path width per pass.
- Working depth
- +10 to -12 mm adjustment range.
- Protection class
- IPX4 (protected against splashing water).
Images and diagrams
- Figure 1 identifies the main parts including the switch, handle, and basket.
- Figure 11 illustrates the starting procedure using the safety button and starting lever.
Model compatibility
- Designed for private lawns and grass areas.
- Not intended for public facilities, parks, sports fields, or roads.
