Fieldmann FZV 2005-E Electric Scarifier/Aerator User Manual
Quick guide for the Fieldmann FZV 2005-E electric scarifier and aerator. Includes assembly instructions, operation, blade replacement, and maintenance tips.
Quick answers from the manual
Quick answer
- The Fieldmann FZV 2005-E is an electric scarifier/aerator for home lawns. It features a 1500W motor, 32cm working width, and adjustable depth settings. p. 1, 14
Key actions
- Starting the machine p. 12
- Replacing the blades p. 11
First start
- Assemble the handle and attach the grass catcher before first use. p. 9, 10
Problems and fixes
Motor overload/cut-out
Release switch, remove obstruction, wait for thermal reset.
p. 13Maintenance and reset
- The motor has a thermal safety fuse that resets automatically after a few minutes once the switch lever is released and the obstruction is cleared. p. 13
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 1500 W | Rated power | p. 14 |
| Working width | 32 cm | Scarifying width | p. 14 |
Where to find it in the PDF
- Parts Description p. 8
- Assembly p. 9, 10
- Blade Replacement p. 11
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Fieldmann FZV 2005-E is an electric scarifier and aerator designed for private home gardens. Safety is paramount: do not operate the machine in the rain or wet conditions, keep children and animals away, and always wear sturdy shoes and long trousers. Ensure the power cable is kept away from the scarifier roller at all times.
Assembly
Handle Assembly: Insert the lower handle section into the machine body and secure it with the provided screws. Attach the middle section to the lower handle using the provided bolts. Finally, attach the upper handle section, ensuring the cable clip is installed on the right side. Secure the cable to the handle using the plastic clips.
Grass Catcher: The grass catcher is supplied assembled. Lift the rear cover of the scarifier, hook the catcher into the designated slots on the machine body, and release the cover.
Operation
Starting: Press and hold the safety button, then pull the switch lever towards the handle. Release the safety button once the motor is running.
Stopping: Simply release the switch lever.
Depth Adjustment: Use the lever on the machine to adjust the working depth. Position 1 is for transport. The recommended working depth is max 3 mm. Adjusting too deep can overload the motor and damage the lawn.
Maintenance
Cleaning: Clean the machine after every use. Remove grass and debris from the wheels, roller, and housing. Do not use high-pressure water or sharp objects for cleaning.
Blade Replacement: Always disconnect the power supply and wear protective gloves before performing maintenance. Unscrew the bolts on the underside of the chassis, lift the roller at an angle to remove it, and insert the new roller, ensuring the pin engages correctly with the drive shaft.
Technical Specifications
The device operates on 230-240 V / 50 Hz with a 1500 W motor. It features a 32 cm working width and a 30 L grass catcher. The working depth is adjustable between -12, -8, -4, and 4 mm.
Manufacturer information
Fieldmann
Practical help
Common problems
Motor stops during operation
The safety thermal cut-out has activated due to overload or obstruction. Release the switch, remove the obstruction, wait a few minutes for the motor to cool, and restart.
Poor scarifying results
The blades or springs are worn. Adjust the working depth or replace the roller.
Before use
- Check that all nuts and bolts are tightened.
- Inspect the lawn for foreign objects like stones or branches.
- Ensure the grass catcher is properly attached.
- Wear sturdy shoes and long trousers.
- Verify the power cable is undamaged.
Specs in practice
- Working width
- 32 cm
- Working depth
- -12, -8, -4, 4 mm
- Basket volume
- 30 L
Images and diagrams

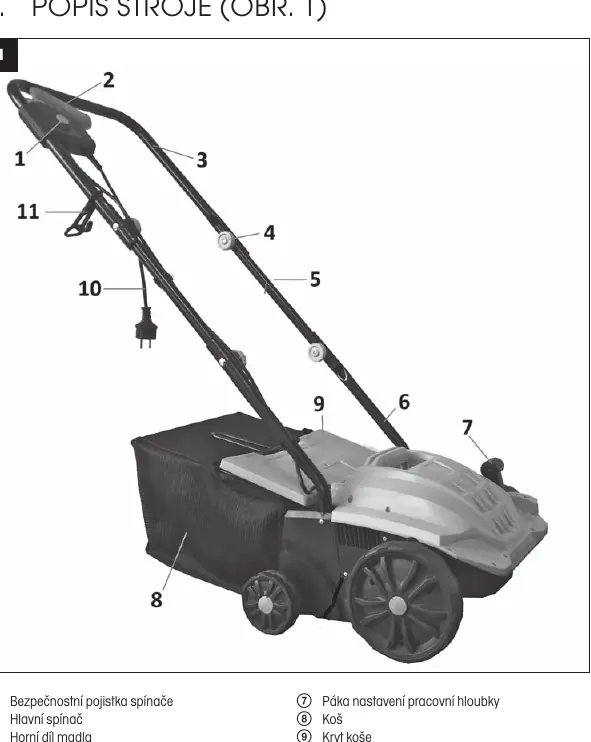

- Fig 1: Parts identification including handle, switch, and depth lever.

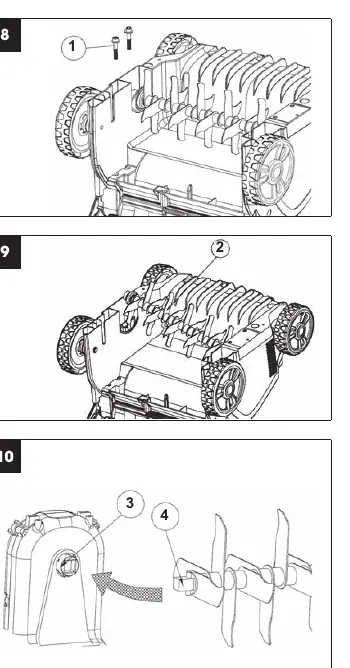

- Fig 8-10: Blade replacement procedure.
- Fig 11: Starting and stopping procedure.
Model compatibility
- For private home gardens only.
- Not for public parks, sports fields, or agricultural use.
