User Manual for Flama 2362FL Oil-Filled Radiator
Comprehensive user guide for the Flama 2362FL oil-filled radiator. Includes assembly instructions, operating procedures, safety warnings, maintenance tips, and technical specifications.
PDF source: Français · summary: English
Quick answers from the manual
Quick answer
- The Flama 2362FL is an oil-filled radiator. To operate, place it on a stable surface, connect to power, select the heat level (Low, Medium, High), and adjust the thermostat knob to your desired temperature. p. 6, 12, 18, 24
Key actions
- Assemble the wheels p. 5, 11, 17, 23
- Adjust temperature p. 6, 12, 18, 24
First start
- Place on a stable surface, unwind the cord, connect to power, set power level, and adjust thermostat. p. 6, 12, 18, 24
Show 4 more answers Show less
Problems and fixes
Radiator does not turn on
Check power supply, ensure it is upright, or wait 30 minutes if overheating protection was triggered.
p. 7, 13, 19, 25Maintenance and reset
- If overheating occurs, unplug the appliance, wait 30 minutes to cool, and remove any obstructions. p. 7, 13, 19, 25
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Nominal heating output | 2.0 kW | Maximum heat output | p. 8, 14, 20, 26 |
Where to find it in the PDF
- Safety Instructions p. 3, 9, 15, 21
- Assembly p. 5, 11, 17, 23
- Operation p. 6, 12, 18, 24
- Technical Requirements p. 8, 14, 20, 26
Table of contents
Quick guide from the manual
The Flama 2362FL is an oil-filled radiator designed for domestic use in well-insulated spaces. Before use, ensure the unit is placed on a stable, horizontal surface and that no flammable materials are within a 1-meter radius. Always operate the unit in an upright position.

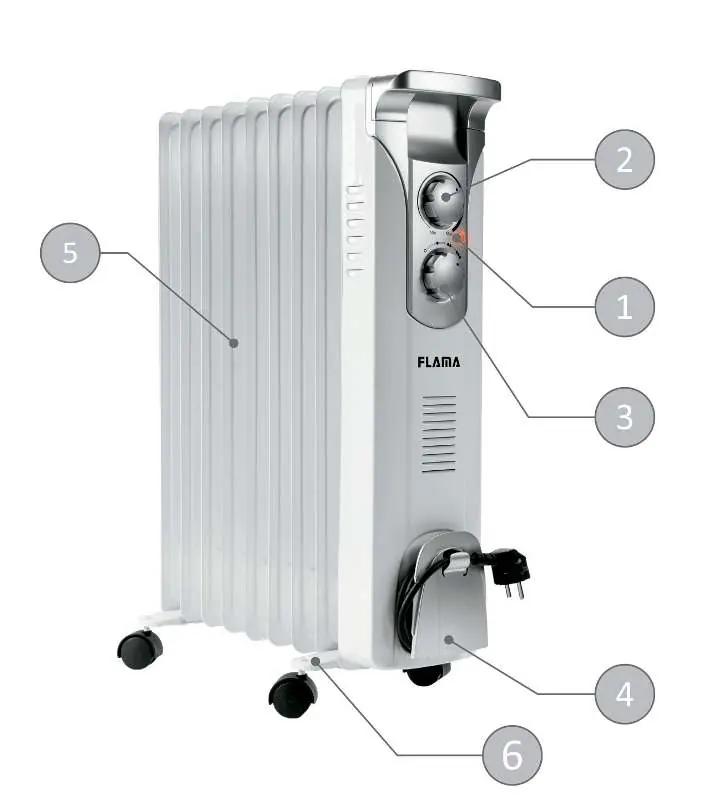

Description of the device
- 1. Lighted indicator
- 2. Thermostat control knob
- 3. Power level selector
- 4. Cord wrap
- 5. Heating elements
- 6. Feet with caster wheels
Assembly
Assembling the wheels:
- Turn the radiator upside down on a safe and stable surface to avoid damaging the paint finish or floor.
- Place the wheeled feet on the radiator, positioning the U-shaped screws between the most external elements on each end of the radiator.
- Tighten the feet firmly by screwing the nuts onto the bolts.
- For model 2357FL (if applicable), adjust the front set of wheels on the lower part of the front panel with two screws.
Operating instructions
Turning on and adjusting:
- Place the radiator in an upright position on a stable, heat-resistant surface.
- Turn the thermostat regulator counter-clockwise to the MIN position and the power selector to 0.
- Unwind the power cord and connect it to the mains.
- Turn the power selector to the desired heat level:
- • - Low heat
- •• - Medium heat
- ••• - High heat
- Turn the thermostat regulator clockwise until it stops (MAX); the indicator light will turn on.
- Once the room reaches a comfortable temperature, slowly turn the thermostat regulator counter-clockwise until the indicator light goes out.
Turning off:
- Turn the thermostat control knob counter-clockwise to the MIN position.
- Turn the power level selector to the 0 position.
- Unplug the radiator and allow it to cool down.
Safety features
- Tip-over protection: The radiator has a safety switch that automatically turns off the appliance if it falls over or is placed at an excessive angle. It will resume operation when returned to the vertical position.
- Overheating protection: If the unit overheats, it will turn off automatically. Unplug the device, wait 30 minutes for it to cool, and remove any obstructions (e.g., items covering the radiator). Check for damage before restarting.
Maintenance and cleaning
- Before cleaning, ensure the unit is turned off, unplugged, and cooled down.
- Clean the exterior with a slightly damp cloth. If very dirty, use a mild cleaning agent.
- Dry with a soft, dry cloth.
- Do not allow water or liquids to enter the radiator.
- Do not use abrasive detergents.
- Store in a dry and clean place.
Technical specifications
The Flama 2362FL has a nominal heating output of 2.0 kW. It features mechanical thermostat control and is designed for single-phase operation.
Manufacturer information
FLAMA, SA
Practical help
Common problems
Radiator does not turn on
Ensure the unit is upright, connected to power, and the thermostat is set correctly. If overheating protection triggered, wait 30 minutes for it to cool.
Overheating
Ensure nothing is covering the radiator and that it is not placed too close to walls or furniture (minimum 50 cm distance).
Before use
- Ensure the radiator is on a stable, horizontal surface.
- Check that the power cord and plug are in good condition.
- Ensure no flammable objects are within 1 meter of the unit.
- Unwind the power cord completely before use.
- Verify the unit is in an upright position.
Show more Show less
Specs in practice
- Nominal heating output
- 2.0 kW (Maximum heat output capacity)
- Tip-over protection
- Safety feature that cuts power if the unit is tilted or falls.
Images and diagrams
- The control panel features a thermostat knob (top) and a power level selector (bottom).
- The cord wrap is located at the bottom of the front panel.
- The heating elements are the vertical fins that radiate heat.
Model compatibility
- Intended for domestic use only.
- Not suitable for use in small rooms occupied by persons unable to leave the room on their own initiative, unless supervised.
