User Manual for Flama 2326FL Fan Heater
Quick guide for the Flama 2326FL fan heater. Learn how to operate, adjust the thermostat, clean the unit, and understand safety features like fall protection and thermal overload.
PDF source: Français · summary: English
Quick answers from the manual
Quick answer
- The Flama 2326FL is a fan heater with three modes: fan only, 1000W, and 2000W. It features a thermostat, fall protection, and thermal overload protection. p. 6, 19
Key actions
- Restarting after overheat p. 7, 19
- Adjusting thermostat p. 6, 19
Problems and fixes
Heater stops working
Check if safety features (overheat/fall protection) triggered. Wait 15 minutes and restart.
p. 7, 20Show 3 more answers Show less
Maintenance and reset
- Restart procedure p. 7, 19
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Nominal heating output | 2.0 kW | Maximum power output | p. 9, 21 |
| Minimum heating output | 1.0 kW | Minimum power output | p. 9, 21 |
Where to find it in the PDF
- Safety Instructions p. 3, 16
- Operation p. 6, 19
- Cleaning and Maintenance p. 7, 20
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

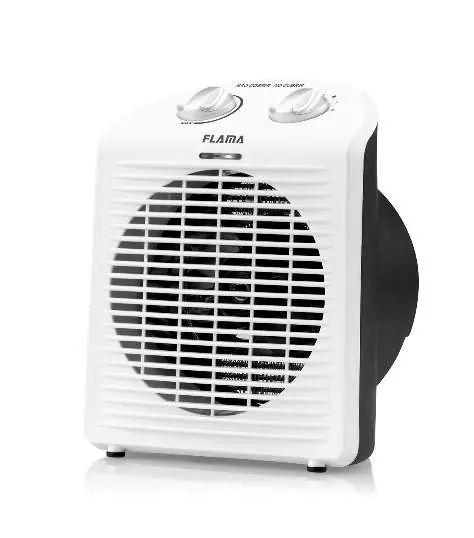

The Flama 2326FL is a portable fan heater designed for domestic use. It features three operating modes: fan only, low heat (1000W), and high heat (2000W). It includes safety features such as fall protection and thermal overload protection. Always keep the device at least 1 meter away from flammable materials like curtains or textiles.

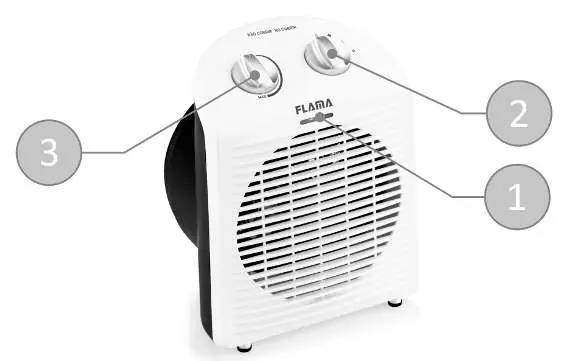

Description of the device
The heater consists of the following main components:
- Indicator light: Shows when the device is powered on.
- Power & Mode rotary knob: Used to select between fan only, low heat (I), and high heat (II), or to turn the device off (o).
- Thermostat adjustment knob: Used to regulate the desired room temperature.
Operation
Follow these steps to operate the heater:
- Place the heater on a solid, flat, and stable surface.
- Ensure the Power & Mode knob is in the off (o) position before plugging it into an electrical outlet.
- Plug the device into a wall socket.
- Turn the Power & Mode knob to the desired setting: fan only, low heat (I), or high heat (II).
- Adjust the thermostat knob to your preferred temperature. The device will start heating once the thermostat is set higher than the current room temperature.
Thermostat instructions
To set the thermostat:
- Turn the thermostat knob to the maximum temperature and let the room heat up.
- Once the desired temperature is reached, slowly turn the thermostat knob counterclockwise until the heater switches off.
- The heater will now cycle on and off automatically to maintain this temperature.
Safety features
- Fall protection: The device automatically switches off if it is not in the correct working position or if it tips over.
- Thermal overload protection: The heater switches off automatically if it reaches an excessive temperature.
Restart instructions
If the heater shuts down due to overheating or the fall protection system:
- Turn the device off.
- Wait 15 minutes for the unit to cool down.
- Turn the device back on and resume normal operation.
Cleaning and maintenance
Warning: Always disconnect the plug before moving or cleaning the device.
- Cleaning: Do not immerse the heater in water. Use a vacuum cleaner with a brush attachment to clean the grilles and remove lint or dirt. Clean the exterior with a soft cloth.
- Prohibited: Do not use gasoline, benzine, thinners, or abrasive cleaning fluids. Never use alcohol or solvents.
Use in bathrooms
This appliance is rated IPX1, meaning it can be used in bathrooms, but it must be installed in volume 3. Ensure the control buttons are not within reach of a person using the bath or shower. Always install the device away from taps, sinks, and showers.
Manufacturer information
FLAMA, SA
Practical help
Common problems
Heater shuts down unexpectedly
The safety system may have triggered due to overheating or tipping. Turn off, wait 15 minutes for it to cool, and restart.
Heater does not turn on
Check if the plug is securely connected to the outlet. Verify the thermostat setting; it may be set too low for the current room temperature.
Before use
- Ensure the device is on a flat, stable surface.
- Check that the power cord and plug are in good condition.
- Ensure there are no flammable objects within 1 meter of the air outlet.
- If using in a bathroom, ensure it is installed in volume 3.
Show more Show less
Images and diagrams

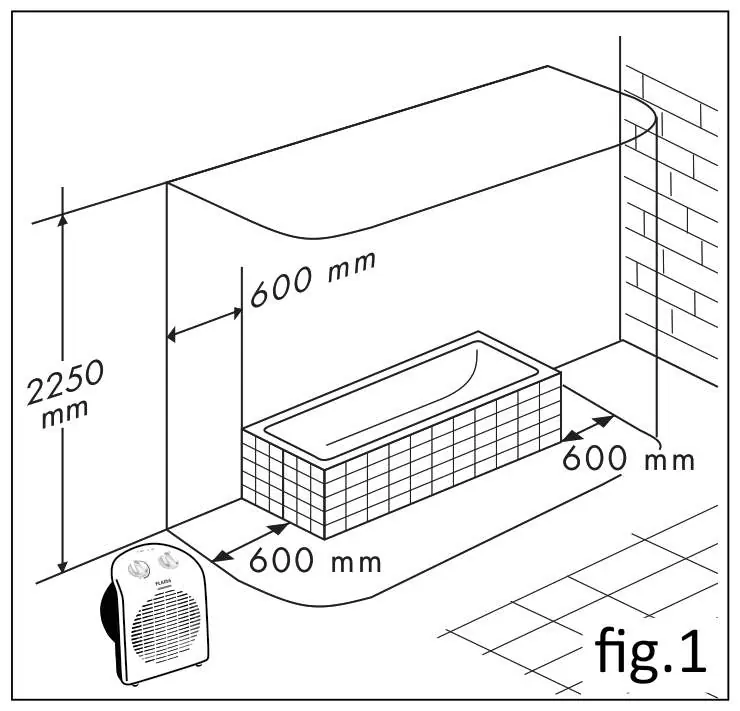

- Fig. 1 illustrates the safe installation zones for bathroom use, showing the required distance from the bathtub/shower.
