User Manual for Flama 2366FL Oil-Filled Radiator
Quick guide for the Flama 2366FL oil-filled radiator. Learn how to assemble the wheels, operate the thermostat and power settings, and follow safety precautions.
PDF source: Français · summary: English
Quick answers from the manual
Quick answer
- To operate the Flama 2366FL, place it upright, connect to power, select the heat level (Low, Medium, High), and adjust the thermostat to your desired temperature. p. 17, 18
Key actions
- Assemble the wheels p. 17
- Adjust temperature p. 18
First start
- Ensure the radiator is on a stable surface, unwind the cable, and set the thermostat to MAX to begin heating. p. 17, 18
Show 4 more answers Show less
Problems and fixes
Device shuts off automatically
Check for tip-over (ensure it is upright) or overheating (wait 30 minutes to cool).
p. 18Maintenance and reset
- If the device overheats, unplug it, wait 30 minutes, and remove any obstructions. p. 18
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Nominal heating output | 2.5 kW | Maximum heat output | p. 20 |
| Minimum heating output | 1.2 kW | Minimum heat output | p. 20 |
Where to find it in the PDF
- Safety Instructions p. 15, 16
- Assembly and Operation p. 17, 18
- Maintenance and Technical Specs p. 19, 20
Table of contents
Quick guide from the manual
The Flama 2366FL is an oil-filled radiator designed for domestic use. Before using the device, ensure it is placed on a stable, horizontal surface and that there are no flammable materials within a 1-meter radius. Always keep the device upright during operation. Never cover the radiator to avoid overheating.
Description

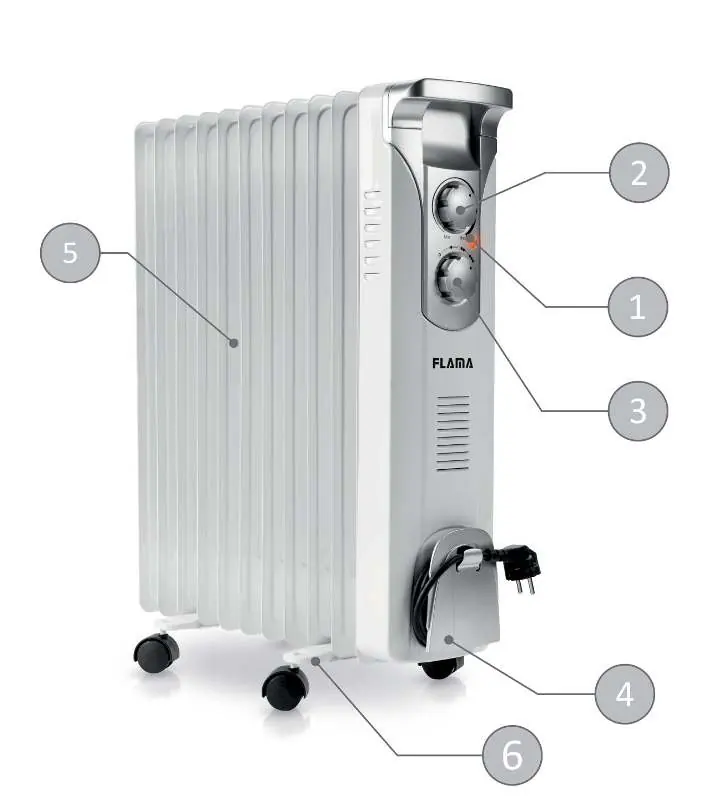

The radiator consists of the following components:
- 1. Lighted indicator
- 2. Thermostat control knob
- 3. Power level selector
- 4. Cord wrap
- 5. Heating elements
- 6. Feet with caster wheels
Assembly
To assemble the wheels:
- Turn the radiator upside down on a safe, stable surface to prevent damage to the finish.
- Place the wheeled feet on the radiator, positioning the U-shaped screws between the outermost elements on each end.
- Tighten the feet firmly by screwing the washers onto the screws.
Operation
To turn on and adjust the radiator:
- Place the radiator in an upright position on a heat-resistant surface.
- Turn the thermostat regulator counter-clockwise to the MIN position and the power selector to 0.
- Unwind the power cord and connect it to the mains.
- Select the desired heat level using the power selector:
- • Low heat
- •• Medium heat
- ••• High heat
- Turn the thermostat clockwise to MAX; the indicator light will turn on.
- Once the room reaches a comfortable temperature, slowly turn the thermostat counter-clockwise until the light goes out.
To turn off the radiator, set the thermostat to MIN and the power selector to 0, then unplug the device.
Safety and Protection
- Tip-over protection: The device automatically turns off if it falls or is placed at an excessive angle. It will resume operation when returned to an upright position.
- Overheating protection: If the device overheats, it will shut down automatically. Unplug the unit, wait 30 minutes for it to cool, and remove any obstructions (e.g., items covering the radiator). If it still does not work, contact technical assistance.
Maintenance
Before cleaning, ensure the device is turned off, unplugged, and cooled down. Clean the exterior with a slightly damp cloth. Do not use abrasive detergents or allow water to enter the interior of the radiator.
Manufacturer information
FLAMA, SA
Practical help
Common problems
Radiator does not turn on
Check if the device is plugged in, ensure it is in an upright position (tip-over protection), and verify if it has overheated (wait 30 minutes).
Overheating
Unplug the device, wait 30 minutes for it to cool, and remove any objects covering the radiator.
Before use
- Ensure the power cord and plug are in good condition.
- Place the radiator on a stable, horizontal, heat-resistant surface.
- Maintain a minimum distance of 1 meter from flammable objects.
- Fully unwind the power cord before use.
- Ensure the radiator is in an upright position.
Show more Show less
Specs in practice
- Nominal heating output
- 2.5 kW
- Minimum heating output
- 1.2 kW
Images and diagrams
- The control panel features a thermostat knob (top) and a power level selector (bottom).
- The power cord can be stored on the cord wrap located on the front panel.
Model compatibility
- Intended for domestic use only.
- Not suitable for use in small rooms occupied by persons unable to leave the room on their own initiative, unless supervised.
