Geberit Kappa 21 Dual Flush Plate Installation Guide
Installation guide for the Geberit Kappa 21 dual flush plate. Includes step-by-step instructions for mounting the frame, adjusting flush rods, and attaching the flush plate.
Table of contents
Manual images
Click an image to enlargeInstallation Guide for Geberit Kappa 21 Dual Flush Plate
This document provides visual instructions for the installation of the Geberit Kappa 21 dual flush plate. Please follow the steps carefully to ensure proper operation.
Preparation and Initial Steps
Before beginning the installation, ensure you have the necessary tools, including a Phillips screwdriver (PH 3). The installation process involves removing the protection plate, connecting the water supply, and mounting the frame.
Installation Procedure

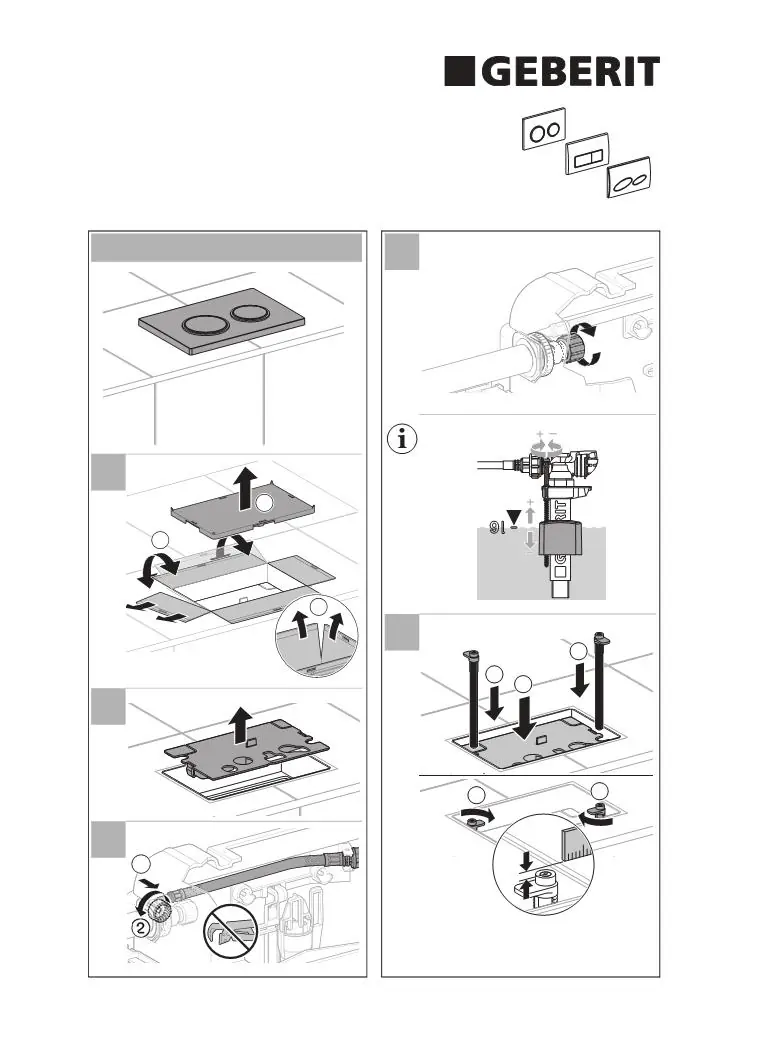

- Remove Protection: Carefully remove the protection plate from the cistern opening.
- Water Connection: Connect the water supply hose to the flush mechanism. Ensure the connection is secure and leak-free.

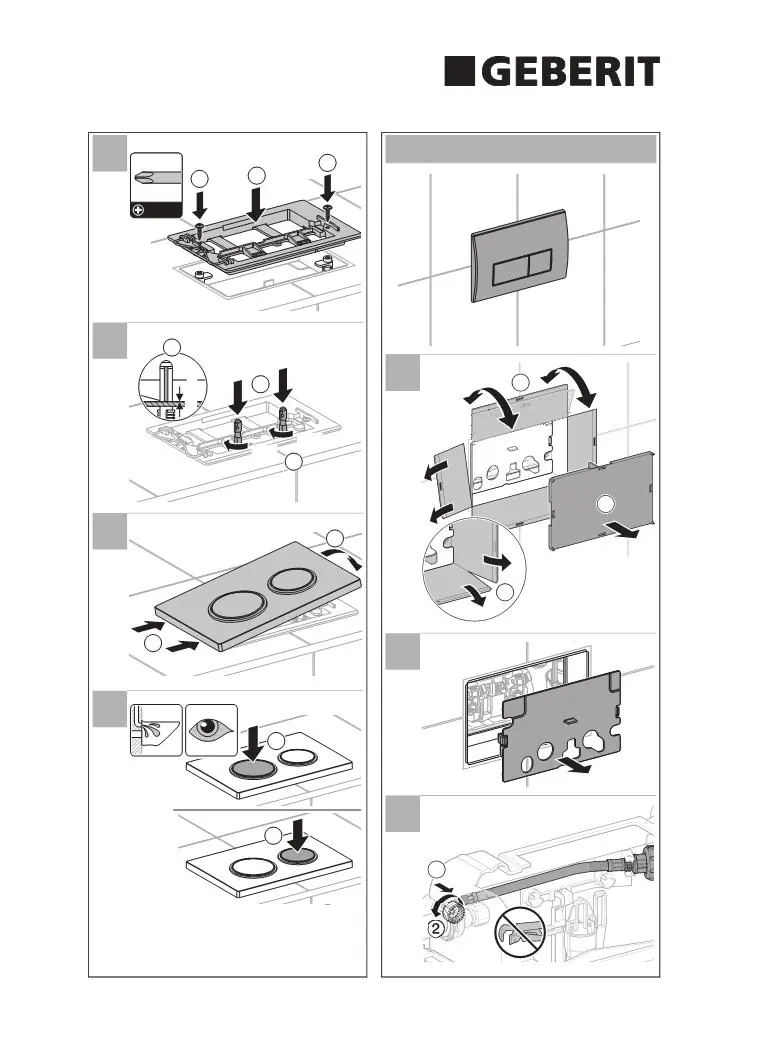

- Mounting Frame: Position the mounting frame over the cistern opening. Secure it using the provided screws. Ensure the frame is level.

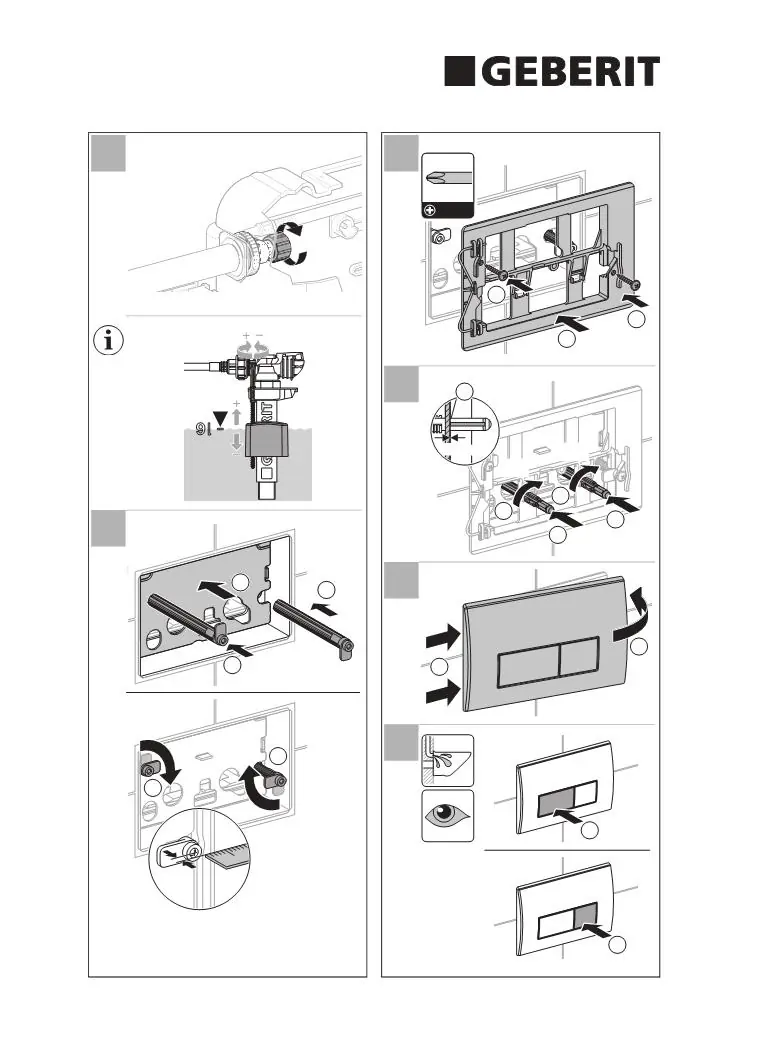

- Adjusting Flush Rods: Adjust the flush rods to the correct length. There should be a 2-3mm gap between the rods and the flush plate mechanism to ensure proper activation.
- Attaching the Plate: Align the flush plate with the mounting frame and press it firmly until it clicks into place.
Maintenance and Adjustments
If the flush plate does not operate correctly, check the rod adjustment. The rods must be set to the correct length to engage the flush mechanism properly. Ensure the plate is clean and free of debris.
Manufacturer information
Geberit Group
Practical help
Common problems
Flush plate does not activate flush
Check if the flush rods are adjusted correctly. There should be a 2-3mm gap.
Plate is loose or does not sit flat
Ensure the mounting frame is securely screwed to the wall/cistern and is level.
Before use
- Verify the mounting frame is level.
- Ensure the water supply is connected.
- Check that the flush rods are adjusted to the 2-3mm specification.
- Confirm the flush plate clicks securely into the frame.
Images and diagrams
- The installation relies on visual steps. Ensure the mounting frame is secured with the provided screws.
- The rods must be adjusted to the correct length before attaching the final plate.
Model compatibility
- Compatible with Geberit Kappa concealed cisterns.
