Gigabyte 12G Graphics Card Quick Guide
A quick guide for installing your Gigabyte 12G graphics card, including hardware installation steps, software driver download links, and connection instructions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for the physical installation and software setup of your Gigabyte graphics card. Before starting, ensure your computer is powered off and the power cable is disconnected.
Hardware installation
- Power off the computer and disconnect the power cable.
- Remove the chassis cover and locate the PCI Express x16 or AGP slot. If necessary, remove the metal bracket(s) from the back of the chassis.
- Insert the graphics card into the slot until it is firmly seated. If required, connect any necessary external power cables to the card.
- Secure the card's bracket to the chassis using screws and replace the chassis cover.
- Connect your display cable (HDMI, DVI, D-SUB, or Display Port) to the graphics card and your monitor.
- Reconnect the power cable and turn on the computer.
Software installation
To ensure optimal performance, download the latest drivers and utilities from the official Gigabyte website at http://download.gigabyte.us/FileList/Utility/VGA.zip
Safety and compliance
The graphics card is designed for standard PC environments. Ensure all connections are secure before powering on the system. For further information or support, visit the official website at www.gigabyte.com.
Official resources from the manual
Manufacturer information
Gigabyte Technology Co., Ltd.
Practical help
Common problems
No display output after installation
Ensure the card is firmly seated in the PCI Express slot and that all necessary external power cables are connected to the card.
System does not boot
Verify that the power cable is securely connected to the power supply and that the card is properly installed in the slot.
Before use
- Ensure the computer is powered off.
- Disconnect the power cable from the wall outlet.
- Identify the correct PCI Express x16 or AGP slot.
- Check if the card requires additional external power cables.
- Have a screwdriver ready to secure the bracket.
Specs in practice
- PCI Express x16
- The standard interface slot used for modern graphics cards.
- Display Output
- Ports available for connecting monitors, including HDMI, DVI, D-SUB, and Display Port.
Images and diagrams

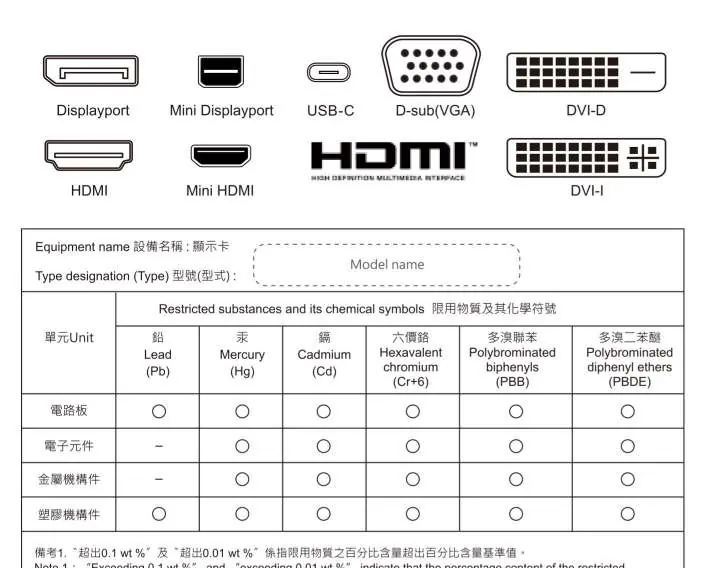

- The manual includes a visual reference for various display connectors including Displayport, Mini Displayport, USB-C, D-sub(VGA), DVI-D, HDMI, Mini HDMI, and DVI-I.
Model compatibility
- Compatible with standard PCI Express x16 or AGP slots.
