Globe Electric 3-Piece Bath Set Installation Guide
Complete installation guide for the Globe Electric 3-Piece Bath Set (Model 63000057). This manual provides essential safety instructions, electrical wiring steps for the vanity light, and mounting procedures for the towel ring and toilet...
Quick answers from the manual
Quick answer
- This manual provides installation instructions for the Globe Electric 3-Piece Bath Set, including the vanity light and bathroom accessories. p. 2, 3
Key actions
- Turn off power at the main breaker before starting installation. p. 2
- Connect ground, white (neutral), and black (live) wires. p. 2
Problems and fixes
Fixture not working
Check circuit breaker and bulb installation.
p. 2Maintenance and reset
- Turn off power before cleaning. Wipe the fixture with a soft, damp cloth. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Base | E26 | Medium base | p. 2 |
| Max Wattage | 60W | Maximum wattage per bulb | p. 2 |
Where to find it in the PDF
- Safety Instructions p. 1
- Vanity Light Installation p. 2
- Accessories Installation p. 3
Table of contents
Manual images
Click an image to enlargeImportant Safety Information
Before beginning any electrical work, ensure the power is turned off at the main fuse or breaker box. Use a voltage tester to confirm that the wires are not live. If you are unsure about any part of the installation, consult a qualified electrician. Always use tools with insulated handles and ensure the area is well-lit.
Electrical Installation (Vanity Light)
The vanity light requires two medium base (E26) bulbs, 60 watts maximum each (sold separately).
- Preparation: Turn off the wall switch and the main power source at the breaker panel.
- Wiring: Connect the fixture wires to the house wires using wire connectors. Ensure the ground wire is properly connected to the outlet box ground.
- Mounting: Secure the mounting crossbar to the outlet box. Attach the fixture to the crossbar using the provided hardware.
- Finishing: Install the bulbs and secure the shades using the socket rings.
Mounting Accessories (Towel Ring & Toilet Paper Holder)
The set includes a towel ring and a toilet paper holder. Both items follow a similar mounting procedure:
- Positioning: Determine the desired location on the wall.
- Mounting Bracket: Use the mounting bracket as a template to mark the screw holes.
- Anchoring: Install the wall anchors into the wall if mounting into drywall.
- Securing: Attach the mounting bracket to the wall using the provided screws.
- Final Assembly: Place the accessory onto the mounting bracket and secure it with the set screws.
Technical Specifications
- Product: 3-Piece Bath Set
- Model: 63000057
- Vanity Light Bulbs: 2 x Medium (E26) base, 60W max each
Manufacturer information
Globe Electric
Practical help
Common problems
Fixture does not turn on
Verify that the circuit breaker is in the ON position and that the bulbs are correctly installed and functional.
Uncertainty about electrical wiring
Consult a qualified electrician to ensure the circuit conductor is correctly installed and grounded.
Before use
- Turn off power at the main fuse or breaker box
- Use a voltage tester to ensure wires are not live
- Ensure you have wire connectors available
- Verify you have two E26 base bulbs (60W max each)
- Check that you have the necessary tools (screwdriver, drill, etc.)
Images and diagrams

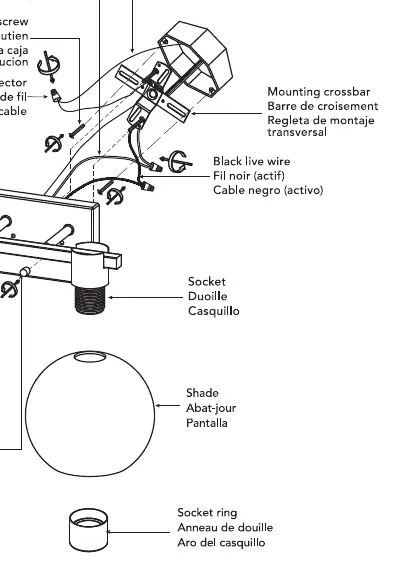

- Wiring diagram illustrates the connection of ground, white (neutral), and black (live) wires to the outlet box.

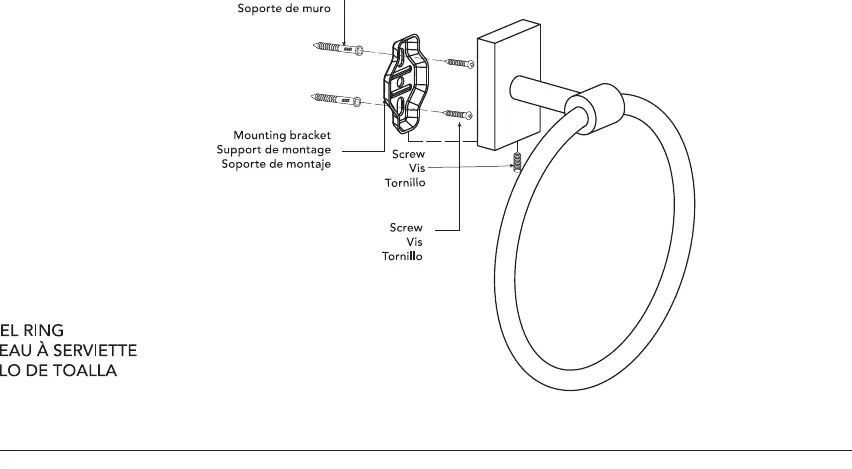

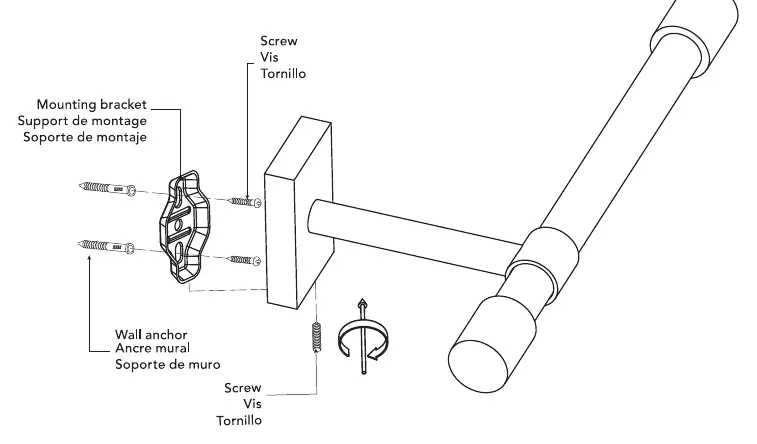

- Mounting diagram shows the installation of the mounting bracket using wall anchors and screws.
Model compatibility
- Requires medium (E26) base bulbs.
- Maximum wattage is 60W per bulb.
