Installation Guide for Globe 1-Light Pendant Light 65841
A comprehensive installation guide for the Globe 1-Light Pendant Light (model 65841). Includes step-by-step wiring instructions, safety precautions, and bulb specifications.
Quick answers from the manual
Quick answer
- This manual provides safety guidelines and installation instructions for the Globe 1-Light Pendant Light (model 65841). p. 1, 2
Key actions

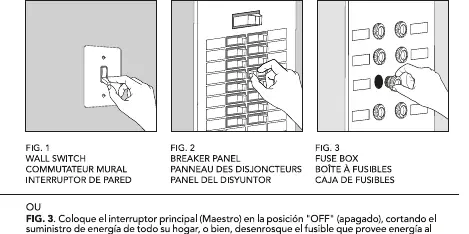

- Turn off the power at the wall switch, breaker panel, or fuse box before starting installation. p. 2
- Connect the fixture wires to the outlet box wires: white to white (neutral), black to black (live), and ground to ground. p. 2
- Secure the canopy to the mounting bracket using the decorative nut. p. 2
First start
- Install a medium base (E26) bulb, 60W maximum. p. 2
Maintenance and reset
- Clean the lamp by turning off the power and wiping with a soft, damp cloth. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Base | Medium base (E26) | The type of bulb socket used in the fixture. | p. 2 |
| Maximum Wattage | 60W | The maximum power rating for the bulb used. | p. 2 |
Where to find it in the PDF
- Safety Warnings p. 1
- Installation Instructions p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for the safe installation of the Globe 1-Light Pendant Light. Before beginning, ensure the main power is turned off at the circuit breaker or fuse box. The installation requires basic electrical knowledge. If you are unsure about the wiring, consult a qualified electrician.
Safety precautions
- Always turn off the main power at the circuit breaker or fuse box before starting any electrical work.
- Verify the wall switch is in the OFF position.
- Use tools with insulated handles.
- Ensure the fixture is properly grounded.
- Do not exceed the maximum wattage rating of the bulb.
Installation steps
- Turn off the power at the wall switch and the main circuit breaker.
- Install the mounting bracket to the outlet box using the provided mounting screws.
- Connect the fixture wires to the house supply wires using wire connectors:
- Connect the white neutral wire to the white neutral wire.
- Connect the black live wire to the black live wire.
- Connect the ground wire to the ground connection.
- Secure the canopy to the mounting bracket using the decorative nuts.
- Install the light bulb into the socket.
- Restore power at the circuit breaker and turn on the wall switch.
Technical specifications
The fixture is designed for indoor use and requires a standard E26 medium base bulb. The maximum wattage allowed is 60W. Do not use bulbs that exceed this limit to prevent overheating.
Maintenance
Before cleaning the lamp, turn off the switch or power source. Wipe the lamp with a soft, damp cloth to remove dust and debris.
Manufacturer information
Globe Electric
Practical help
Common problems
Light does not turn on
Ensure the bulb is screwed in correctly, the bulb is not burnt out, and the circuit breaker is turned on.
Wiring confusion
Connect the white wire to the white neutral wire, the black wire to the black live wire, and ensure the ground wire is connected to the ground.
Before use
- Turn off the main power at the circuit breaker or fuse box.
- Verify the wall switch is in the OFF position.
- Ensure you have a compatible E26 bulb (max 60W).
- Check that the mounting surface can support the weight of the fixture.
- Verify all necessary tools (screwdriver, wire strippers) are available.
Images and diagrams

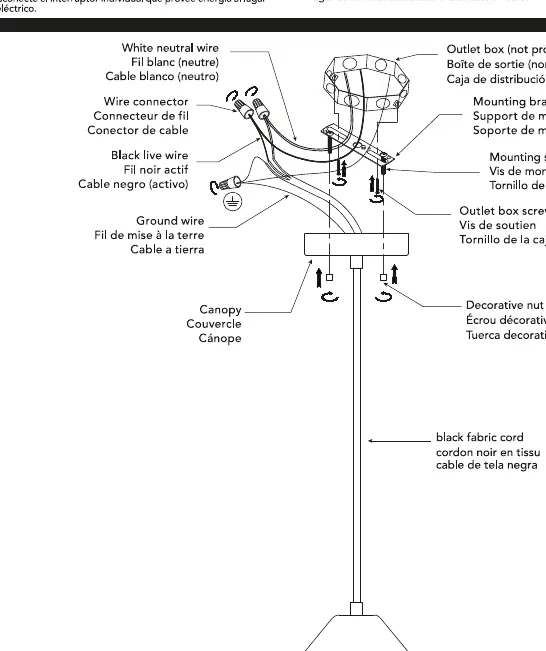

- The wiring diagram illustrates the connection of the white neutral wire, black live wire, and ground wire using wire connectors.
- The mounting diagram shows how the mounting bracket attaches to the outlet box and how the canopy secures the fixture.
Model compatibility
- Requires a standard E26 bulb.
- Not suitable for bulbs exceeding 60W.
