Grundig GSBS23340FXPN Refrigerator User Manual
Quick guide and user manual for the Grundig GSBS23340FXPN refrigerator. Includes installation, operation, maintenance, and troubleshooting instructions.
Quick answers from the manual
Quick answer
- The Grundig GSBS23340FXPN is a refrigerator with water and ice dispensing capabilities. It requires a grounded electrical connection and a cold water supply. For the first use, run the unit empty for 12 hours without opening the doors. p. 21
Key actions
- First operation: Run empty for 12 hours. p. 21
- Adjusting feet: Rotate front stands to balance. p. 11
First start
- Run empty for 12 hours without opening the door. p. 21
Show 4 more answers Show less
Problems and fixes
Refrigerator not working
Check plug and fuse.
p. 40Maintenance and reset
- Filter alert: Press and hold the filter button for 3 seconds. p. 27
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Freezer capacity | 4.5 kg per 100L | Freezing capacity per 24 hours | p. 36 |
Where to find it in the PDF
- Safety Instructions p. 3, 4, 5, 6
- Installation p. 10, 11, 12, 13
- Operating the Product p. 22, 23, 24, 25
- Maintenance and Cleaning p. 38, 39
- Troubleshooting p. 40, 41, 42, 43
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This refrigerator is designed for household use. Before using the product, ensure it is installed on a level surface and that all electrical and water connections are made according to local regulations. Keep the product running empty for 12 hours after installation before placing food inside.
Installation
- Location: Place the refrigerator on a flat, level surface. Maintain at least 5 cm of clearance from the ceiling, rear wall, and side walls. Keep it at least 30 cm away from heaters, stoves, and other heat sources, and 5 cm from electric ovens.

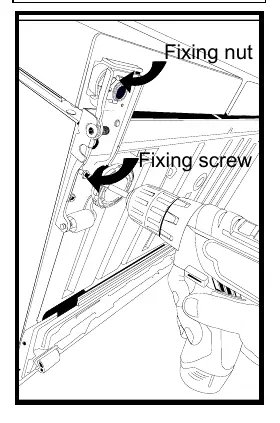

- Feet Adjustment: If the refrigerator is not balanced, adjust the front adjustable stands by rotating them left or right.
- Electrical Connection: Connect to a grounded socket conforming to the voltage, current, and frequency values on the type label. Do not use extension cords or multi-sockets.

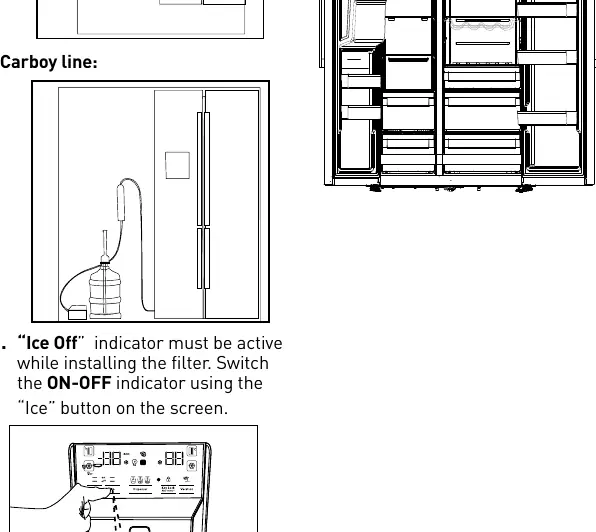

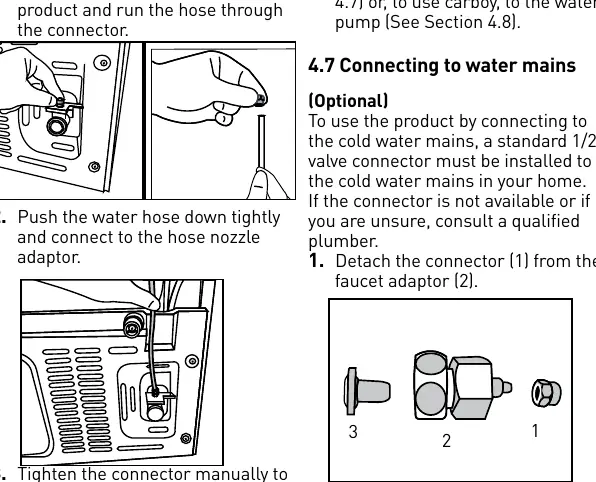

- Water Connection: The water system should be connected to a cold water line only. If using a carboy, use the recommended water pump.
Operating the Product
- Indicator Panel: Use the indicator panel to set temperatures for the freezer and cooler compartments, activate functions like Rapid Cooling, Rapid Freezing, Vacation mode, and control the ice/water dispenser.
- Water and Ice Dispenser: Select between water, ice cubes, or fragmented ice using the display. Wait approximately 12 hours after installation before taking ice for the first time.
- Food Storage: Store food in sealed containers to prevent odours. Do not overfill the refrigerator to ensure proper air circulation.
- Energy Saving: Do not keep doors open for long periods. Defrost frozen foods in the cooler compartment to save energy.
Maintenance and Cleaning
- General Cleaning: Unplug the refrigerator before cleaning. Do not use sharp or abrasive tools, detergents, gas, gasoline, or alcohol. Use a mild solution of soap, water, and carbonate.
- Stainless Steel Surfaces: Use a non-abrasive stainless steel cleaning agent with a soft, lint-free cloth.
- Odour Prevention: Clean the interior with carbonated water every 15 days. Keep food in sealed containers.
Troubleshooting
Before contacting service, check the following:
- Refrigerator not working: Check if the power plug is fully settled and the fuse is intact.
- Compressor not working: If there was a power failure, the compressor thermic safeguard may be triggered. Wait 6 minutes for it to restart.
- Condensation on side walls: Ensure doors are not opened frequently and food is stored in sealed containers.
- Ice dispenser issues: If ice does not come out, check for ice chunks in the reservoir and remove them.
Practical help
Common problems
Refrigerator not working
Check if the power plug is fully inserted into the socket and ensure the fuse is not blown.
Compressor not working
If there was a sudden power failure, the compressor thermic safeguard may be triggered. Wait approximately 6 minutes for the system to balance.
Condensation on side walls
Avoid frequent door opening, keep food in sealed containers, and ensure the refrigerator is not installed in a humid environment.

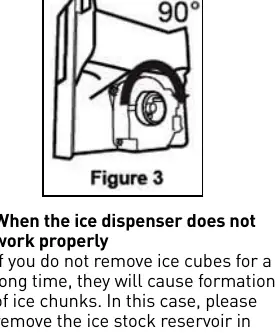

Ice dispenser not working
If ice does not come out, check for ice chunks in the reservoir, remove them, and clean the reservoir.
Before use
- Ensure the refrigerator is placed on a level and hard surface.
- Check that the electrical connection is grounded and matches the type label.
- Ensure the water connection is to a cold water line only.
- Keep the product running empty for 12 hours before adding food.
- Do not open the door unnecessarily during the first 12 hours.
Show more Show less
Specs in practice
- Protection Class I
- The appliance must be connected to a grounded electrical socket.
Images and diagrams

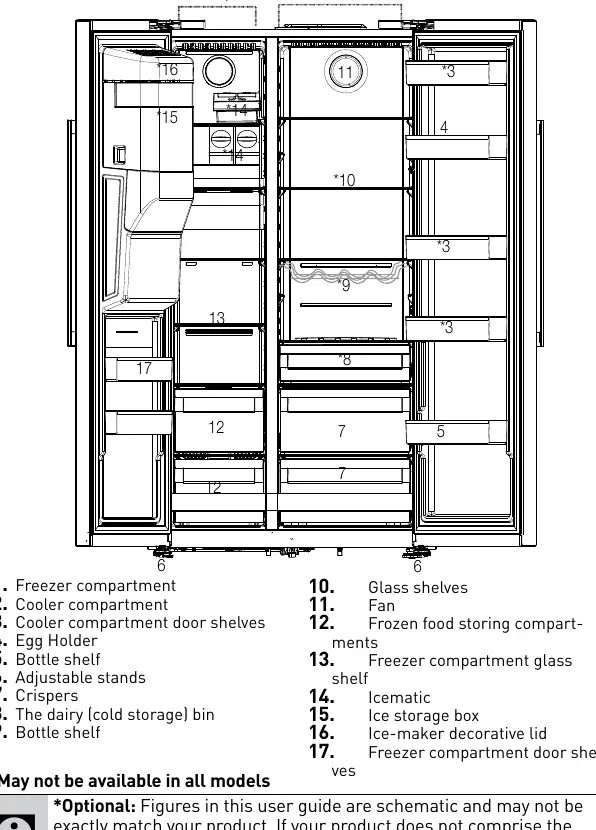

- The refrigerator features a freezer compartment (1) and a cooler compartment (2).
- The indicator panel (23) allows control over temperature settings and special modes like Vacation and Rapid Cooling.
Model compatibility
- Water filter is optional and not required if using a carboy connection.
