User Manual for GVM 1200D RGB LED Video Light
Comprehensive user guide for the GVM 1200D RGB LED Video Light. Includes setup instructions, control panel operation, app connectivity, master/slave mode configuration, and troubleshooting tips.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The GVM 1200D is a professional RGB LED video light designed for studio, outdoor, and live broadcast use. Before operation, ensure the light is placed on a stable stand and the protective cover is removed. The device operates within a temperature range of -10°C to 40°C and is not waterproof. Always use the provided power adapter or two compatible lithium batteries for power.

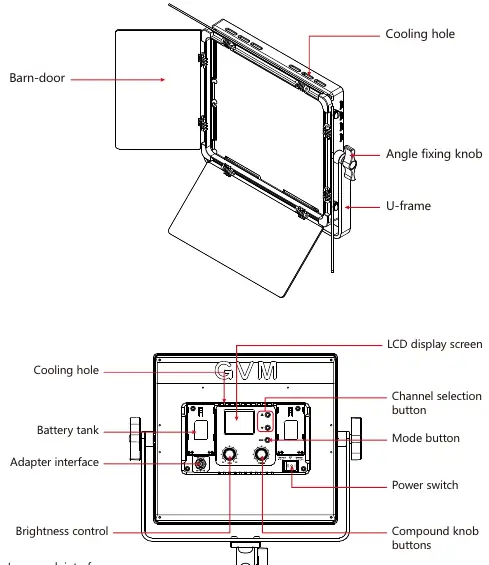

Product Structure
The light features a U-frame for 360° rotation and adjustable barn-doors to shape the light output. The rear panel contains the LCD screen, battery tanks, adapter interface, and control knobs for brightness, color temperature, hue, and saturation.

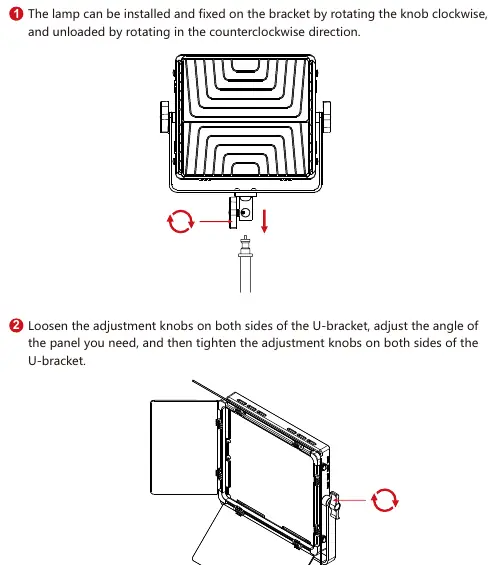

Installation Method
To mount the light, place it on a compatible light stand and secure it by rotating the lamp holder fixing knob clockwise. Loosen the adjustment knobs on both sides of the U-bracket to tilt the panel to the desired angle, then tighten the knobs to lock it in place.
Power Supply
The unit supports two power modes:
- AC Power: Connect the provided power cord and adapter to the DC15V interface.
- Battery Power: Install two suitable lithium batteries into the battery slots. Both batteries must be installed for the unit to function.
Control Modes and Operation
Use the Mode button to cycle through control modes:
- Rotate Mode: Adjust lighting effects directly using the dimming knobs on the unit.
- Master Mode: Adjust settings on the unit; connected slave units with the same channel will synchronize automatically.
- Slave Mode: The unit is controlled by a Master unit or App. Channels can only be adjusted via the up/down buttons.
- APP Mode: Control the light via the GVM LED mobile application.
Use the multifunctional knob to switch between CCT (Color Temperature), HUE, and SAT (Saturation) modes. Rotate the knob to adjust the selected value.
App Control
Download the "GVM LED" app. Switch the light to APP mode, enable Bluetooth and GPS on your smartphone, and connect to "BT_LED" within the app. The app allows for remote control of brightness, color temperature, and scene modes. You can also save custom light effects in "My Scenes".
Scene Modes
When controlled via the App, the light can simulate 20 different lighting effects, including: Lightning, Cop Car, Candle, TV, Bad Bulb, Party, Disco, Paparazzi, Explosion, Pulsing, Fire, Fireworks, Welding, CCT Loop, Hue Loop, Ambulance, Fire Engine, SOS, STROBE (CCT), and STROBE II (RGB).
Maintenance
Disconnect power before cleaning. Use a dry, soft cloth to wipe off dirt; do not use wet cloths or detergents. Store in a well-ventilated, dry place. Do not disassemble the unit; contact authorized service personnel for repairs.
Practical help
Common problems
Switch indicator does not light up
Check if the power adapter is securely connected or if the battery is depleted and needs charging.
Brightness/Color temperature knobs are unresponsive
The unit is likely in Slave mode. Press the 'MODE' button to switch to Master mode.
App cannot connect or control the light
Ensure the light is in APP mode, and Bluetooth/GPS are enabled on your phone. Search for 'BT_LED' within the GVM LED app.
No RGB color output
Check if the Saturation (SAT) value is set to 0. Increase the saturation value using the multifunctional knob or the app.
Before use
- Remove the protective cover from the light.
- Ensure the ambient temperature is between -10°C and 40°C.
- Verify the power source (AC adapter or two lithium batteries).
- Mount the light securely on a stable stand.
- Ensure the light is not exposed to water or corrosive liquids.
Specs in practice
- CRI (Color Rendering Index)
- ≥97; indicates high color accuracy and natural light reproduction.
- Color Temperature
- 3200K-5600K; adjustable range from warm to cool white light.
- Bluetooth Range
- ≤10M; maximum distance for app control.
Images and diagrams
- Barn-door: Adjustable flaps to shape and direct the light beam.
- U-frame: Allows for 360-degree rotation of the light panel.
- Battery tank: Dual slots for lithium batteries; both must be installed for operation.
- Multifunctional knob: Press to toggle between CCT, HUE, and SAT; rotate to adjust values.
Model compatibility
- Requires two lithium batteries if not using AC power.
- Not waterproof; use only in rainproof environments.
- Professional lighting equipment; intended for use by technicians or under professional guidance.
