Hansgrohe PuraVida iControl Mobile User Manual

Product Description

The PuraVida iControl Mobile is an advanced shower control system designed for bathing and body cleansing. It features a wireless transmitter for convenient operation of various shower functions.

Safety Information

• The system must only be used for bathing and hygienic purposes.
• Children and individuals with physical, mental, or sensory impairments must not use the system without proper supervision.
• Persons under the influence of alcohol or drugs are prohibited from using the system.
• Avoid direct contact of shower streams with sensitive body parts like eyes.
• Maintain adequate distance between the shower and the body.
• Large pressure differences between hot and cold water supplies must be balanced.

Electrical Connection

• Installation and testing must be performed by a skilled electrician in accordance with VDE 0100 part 701 and IEC 60364-7-701.
• The system requires a 230V/N/PE/50Hz AC connection and an external transformer.
• The system must be protected by a leakage current protective device (RCD/FI) with a rated differential current of ≤ 30 mA.
• Ensure the product can be disconnected from the mains via a freely accessible plug or an all-pin switch according to EN 60335-1.

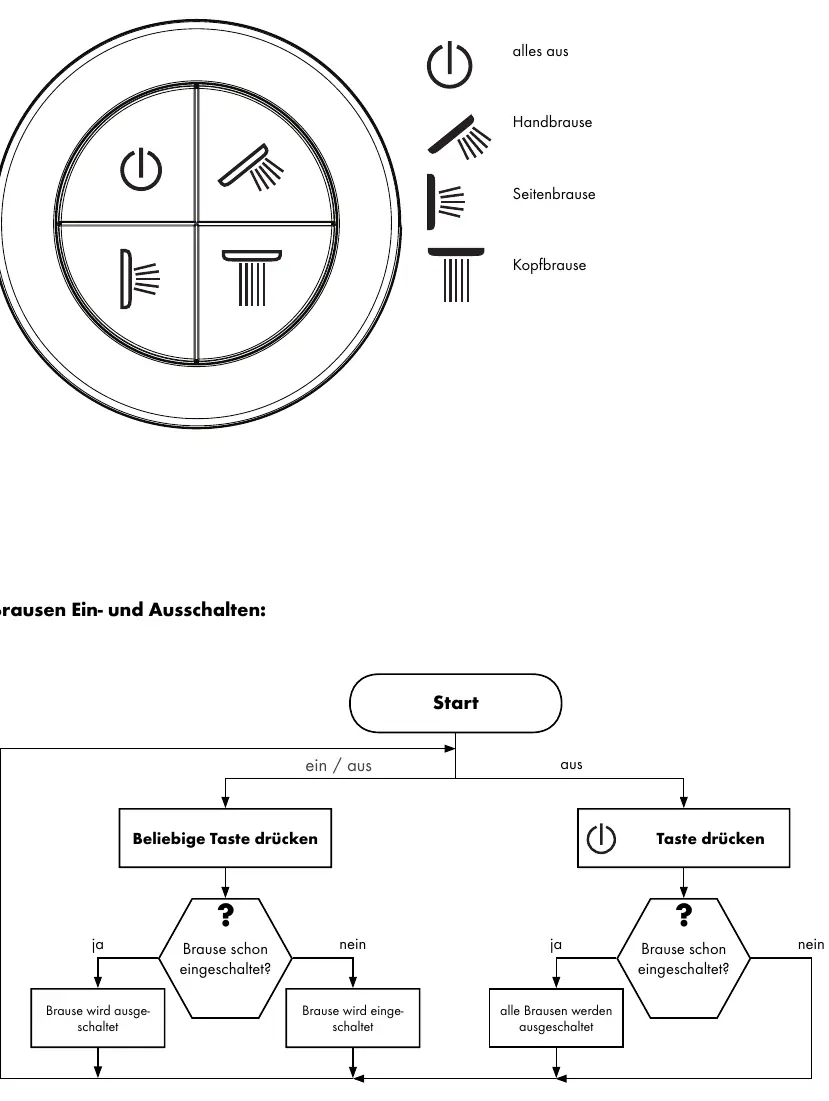

Operation

The system is operated via a wireless transmitter. If there is a power failure of the 230V mains, the showers will not function. The product is not intended for use in steam baths.

Maintenance and Troubleshooting

• No function: Check voltage supply, transformer, receiver placement, and transmitter pairing.
• Operating mode cannot be configured: Ensure the Reed contact is correctly positioned behind the rosette.
• Fixture leaks: Clean or replace the solenoid valve membrane.
• Flow too low: Clean or replace the dirt-collecting sieve on the input side.

Disposal

Follow local regulations for the disposal of electronic components and electrical equipment.
