Hansgrohe ShowerSelect Thermostat Flush User Manual
Quick guide for the Hansgrohe ShowerSelect S, E, and Q flush-mounted thermostats. Includes installation steps, technical specifications, safety warnings, maintenance, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and operating instructions for the Hansgrohe ShowerSelect S, E, and Q flush-mounted thermostats. Before installation, inspect the product for transport damage. Ensure that pipes and fixtures are installed, flushed, and tested according to applicable standards. Always wear gloves during installation to prevent crushing and cutting injuries.
Safety Notes
- The product must only be used for bathing, hygienic, and body cleaning purposes.
- Children and adults with physical, mental, or sensory impairments must not use this product without proper supervision.
- Persons under the influence of alcohol or drugs are prohibited from using this product.
- Hot and cold supplies must be of equal pressure.

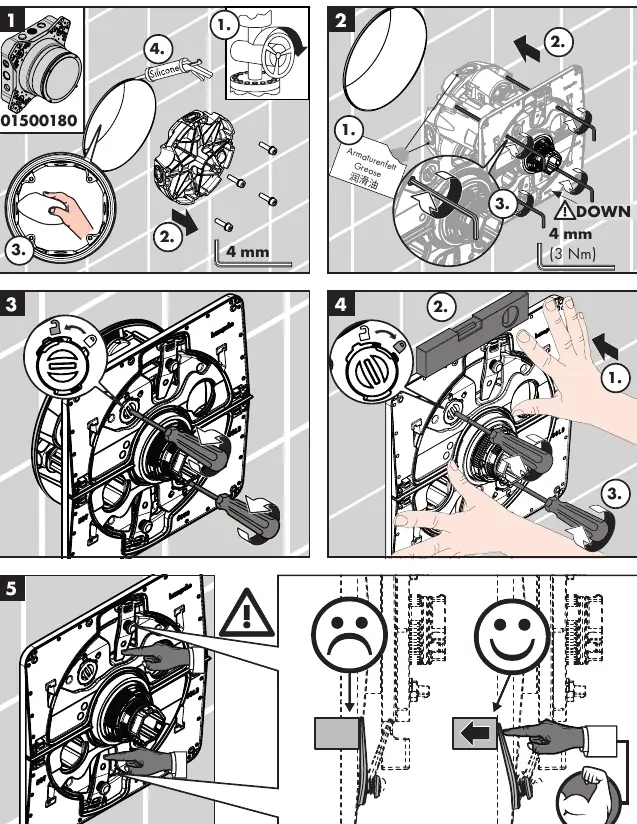

Installation Instructions
Observe all applicable plumbing codes in your country. If the thermostat or mixer is set to maximum water temperature, there is a risk of scalding at the hydraulic opening of the check valve. Hansgrohe recommends setting up the "Safety Function" to limit the maximum temperature.
Technical Data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0.1 - 0.5 MPa
- Test pressure: 1.6 MPa
- Hot water temperature: max. 60°C
- Thermal disinfection: 70°C / 4 min
- Product is exclusively designed for drinking water.

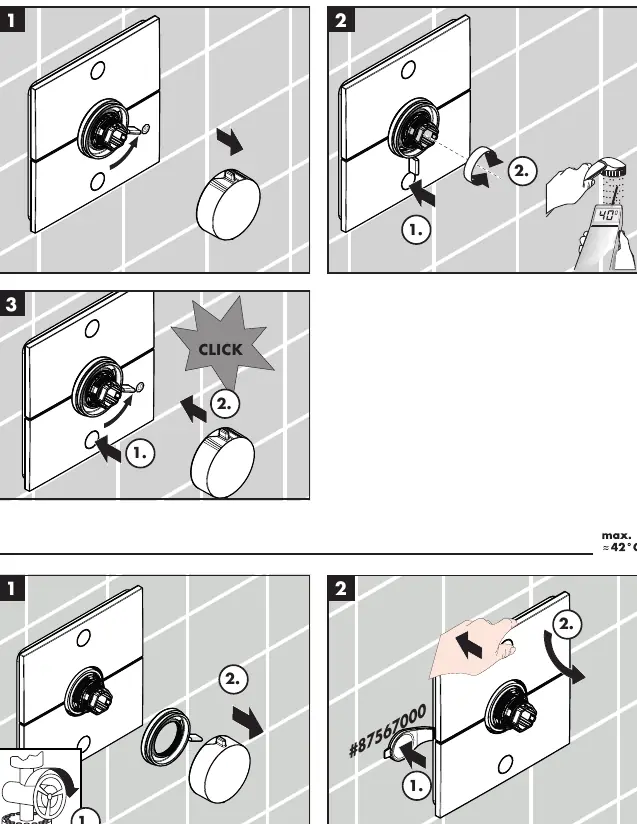

Adjustment
After installation, the output temperature of the thermostat must be checked. A correction is necessary if the temperature measured at the output differs from the temperature set on the thermostat. Use the Safety Function to pre-set the desired maximum temperature (e.g., 42°C).

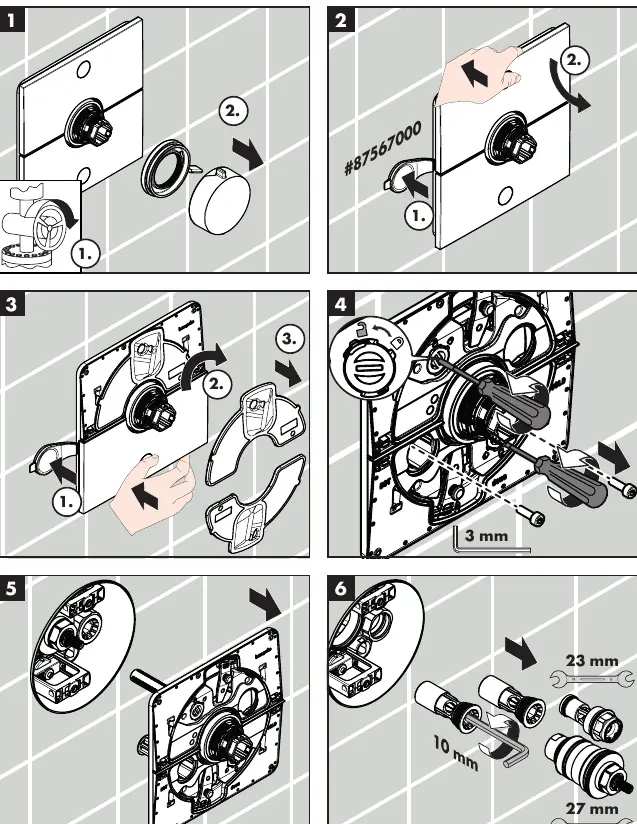

Maintenance
- Check valves must be checked regularly according to EN 806-5 in accordance with national or regional regulations (at least once a year).
- To guarantee the smooth running of the thermostat, it is necessary from time to time to turn the thermostat from total hot to total cold.
Troubleshooting
If you experience issues such as insufficient water, crossflow, or temperature regulation problems, refer to the troubleshooting table in the manual. Common remedies include cleaning the regulator filter, cleaning the shower filter seal, or replacing the backflow preventer cartridge.
Manufacturer information
Hansgrohe SE
Practical help
Common problems
Insufficient water
Check supply pressure, clean filter in front of mixer and on MTC-thermo cartridge, clean shower filter seal, or clean/replace backflow preventer cartridge.
Crossflow (hot water forced into cold pipe or vice versa)
Clean or replace backflow preventer cartridge.
Temperature regulation not possible
Replace thermo cartridge or check for reversed connections (cold right, hot left).
Safety stop button not operating
Clean spring or push button, grease lightly, or replace handle if necessary.
Valve stiff or dripping
Replace Select stop valve DN9.
Before use
- Check for transport damage before installation.
- Flush pipes and fixture according to applicable standards.
- Ensure hot and cold supplies have equal pressure.
- Wear gloves during installation to prevent injury.
- Verify output temperature after installation.
Specs in practice
- Operating pressure
- Max 1 MPa (10 bar). Recommended range is 0.1-0.5 MPa.
- Hot water temperature
- Max 60°C.
- Thermal disinfection
- 70°C for 4 minutes.
Images and diagrams
- Flow diagram shows free flow for Outlet 1 and Outlet 2.
Model compatibility
- Designed for drinking water only.
- Not compatible with positive head pumps (UK specific).
