Installation Manual for Hansgrohe Trio/Quattro Diverter Valve Finish Set
Quick installation guide for Hansgrohe Trio and Quattro diverter valve finish sets. Includes assembly steps, spare parts diagrams, and safety instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and assembly instructions for the Hansgrohe Trio and Quattro diverter valve finish sets. The product must be installed, flushed, and tested according to valid norms. Ensure you wear protective gloves during installation to prevent crushing and cutting injuries.
Safety Instructions
- Gloves: Must be worn during installation to prevent injuries.
- Silicone: Do not use silicone containing acetic acid.
Installation
The fitting must be installed, flushed, and tested according to valid norms. Ensure the pipes are clean before installation.
Assembly
Follow the assembly sequence provided on page 10 of the manual. The process involves attaching the finish set components to the pre-installed valve body. Ensure all seals and components are correctly positioned as shown in the diagrams.
Spare Parts
Refer to pages 12 and 13 for detailed exploded views of the spare parts. The parts are specific to the model version (e.g., Trio/Quattro E, S, Metris, Classic, PuraVida). Use the provided part numbers for ordering replacements.
Dimensions
Refer to page 14 for detailed dimensional drawings of the different finish set models to ensure proper clearance and fitment.
Technical Data
The product has been tested and certified by various international bodies. Refer to page 15 for the list of test certificates applicable to specific models.
Manufacturer information
Hansgrohe SE
Practical help
Common problems
Improper operation or leaks
Ensure the fitting was installed, flushed, and tested according to valid norms.
Before use
- Wear protective gloves during installation
- Flush pipes thoroughly before installation
- Do not use silicone containing acetic acid
Images and diagrams

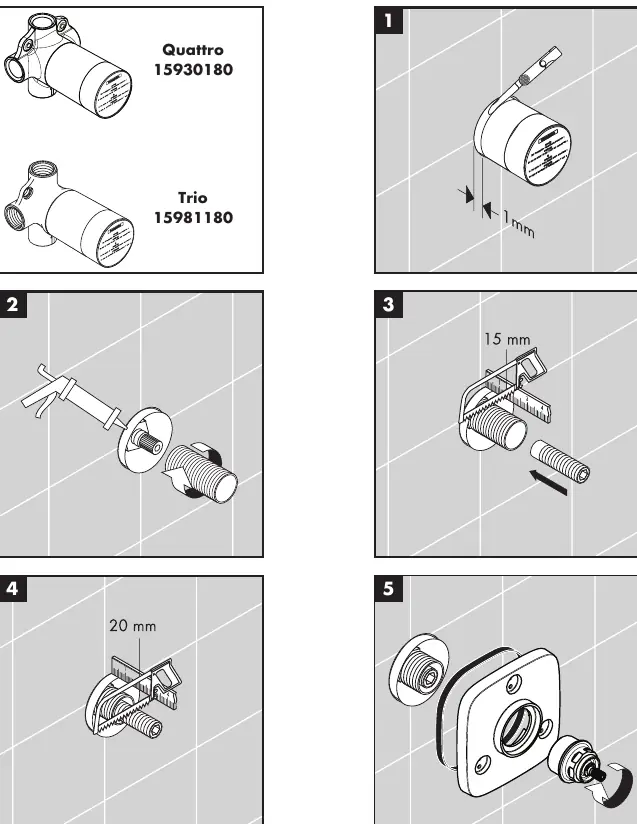

- Page 10: Assembly sequence for the diverter valve finish set

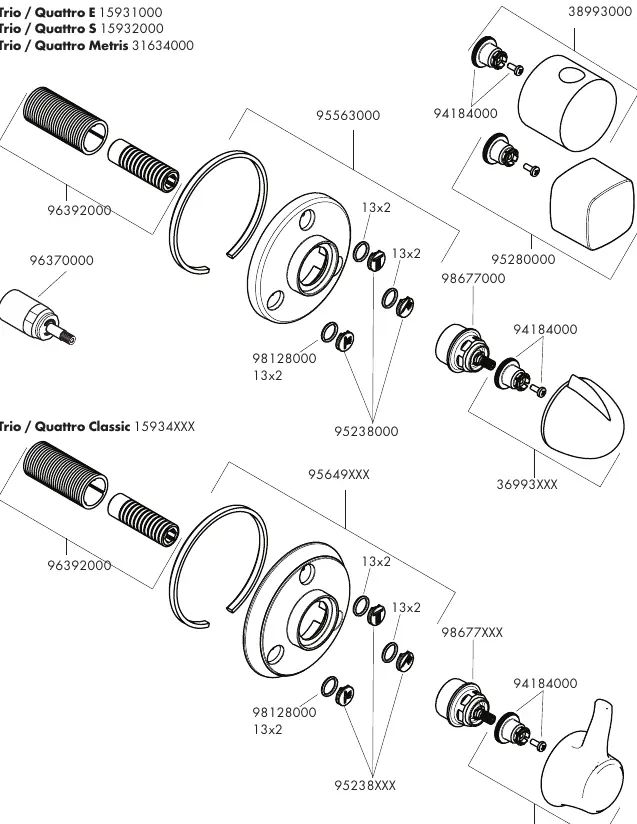

- Page 12-13: Exploded view of spare parts for various models
Model compatibility
- Compatible with Hansgrohe Trio and Quattro valve bodies
