Hilti 100x X-FC 20-25 MX Fastener Installation Guide
Installation guide for the Hilti 100x X-FC 20-25 MX power-actuated fastener. Includes visual instructions for three installation methods (A, B, and C) in concrete for non-structural applications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation instructions for the Hilti 100x X-FC 20-25 MX power-actuated fastener. This product is designed for non-structural applications in concrete and is intended for positioning purposes only. It carries no load rating.
Installation Methods
The manual outlines three distinct installation methods depending on the equipment and application requirements:

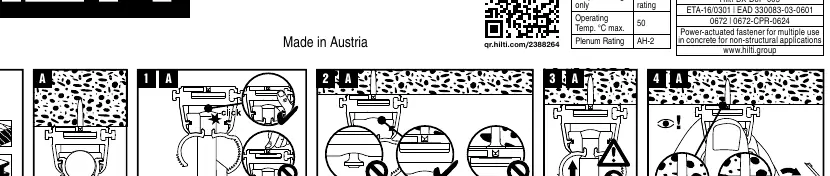

Method A (Tool-based)
This method is designed for use with specific Hilti tools: BX 3-ME-A22, BX 3-ME-22, and BX 4-22-ME. Place the fastener against the concrete surface, align the tool, and actuate to click the fastener into the final position.

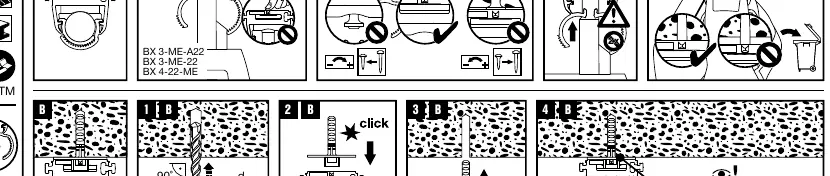

Method B (Drilling)
1. Drill a hole into the concrete at a 90-degree angle to the required depth (h0) and diameter (d0).2. Insert the fastener into the drilled hole.3. Click the fastener into the final locked position.

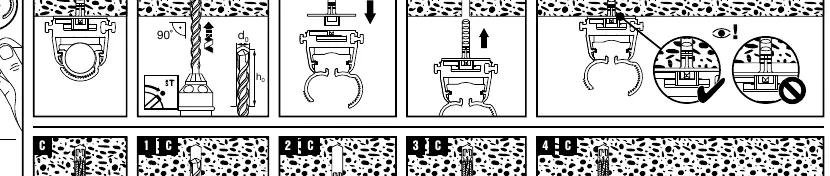

Method C (Drilling)
1. Drill a hole into the concrete at a 90-degree angle to the required depth (h0) and diameter (d0).2. Insert the fastener into the drilled hole.3. Click the fastener into the final locked position.
Important Safety and Usage Notes
- Application: For positioning only.
- Load Rating: No load rating (not for structural support).
- Temperature: Maximum operating temperature is 50°C.
- Rating: Plenum Rating AH-2.
- Compatibility: Ensure the correct tool is used for Method A (BX 3-ME-A22, BX 3-ME-22, BX 4-22-ME).
