Hilti NUN 10K-22 Cordless Hydraulic Pump
Operating instructions for the Hilti NUN 10K-22 cordless hydraulic pump, covering safety, operation, maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionProduct Description
The Hilti NUN 10K-22 is a cordless hydraulic pump designed for professional use with hydraulic cutting, pressing, crimping, and punching tools. It is powered by Hilti Nuron Li-Ion batteries (B 22 series). The pump features Bluetooth connectivity for remote control and data logging via a mobile app. It is not insulated and must not be used on electrically live lines.
Safety
Before use, read and understand all safety warnings and instructions. The product is intended for professional users and must only be operated by authorized, trained personnel. Always wear personal protective equipment, including eye protection. Ensure the work area is clean and well-lit. Do not operate in explosive atmospheres. Keep children and bystanders away. Ensure the battery is correctly engaged and secure before use. Never lift the product by the hydraulic hose. If oil leaks, stop using the tool immediately and contact Hilti Service.
Operation
Before starting, check the oil level at the filler neck. Ensure the hydraulic hose and the required tool head (crimping, cutting, or punching) are securely connected. Select the appropriate program using the rotary selector switch. Press and hold the non-latching rocker switch on the pump to perform the operation. If the piston does not retract automatically, use the manual reset button.
Maintenance
Always remove the battery before performing any care or maintenance. Keep the product and battery clean, free of oil and grease. Clean air vents with a dry, soft brush. Use only a slightly damp cloth for the housing; do not use silicone-based cleaning agents. Regularly check all visible parts for damage and ensure controls function correctly. If damage or malfunctions occur, do not use the product and have it repaired by Hilti Service.
Troubleshooting
If issues arise, check the battery status indicator. For problems not listed in the manual or that cannot be resolved, contact Hilti Service. Common issues include batteries running down quickly (due to low ambient temperature) or failing to engage with an audible click (due to dirty retaining lugs).
Manufacturer information
Hilti Corporation
Practical help
Common problems
Battery runs down faster than usual
Allow the battery to warm up slowly to room temperature.
Battery does not engage with an audible click
Clean the retaining lugs on the battery and refit it.
Red LED flashes with warning tone
Battery charge is too low to complete the operation; change and charge the battery.
Before use
- Read and understand all safety warnings and instructions.
- Check the oil level at the oil filler neck.
- Ensure the hydraulic hose is connected.
- Connect the required crimping, cutting, or punching head.
- Ensure the battery is fully charged and correctly engaged.
- Check the attachment point of the tool tether for damage.
- Ensure the remote control unit is secure in its recess.
Specs in practice
- Rated voltage
- 21.6 V
- Max. operating pressure
- 700 bar
- Capacity (oil)
- 760 ml
- Weight (without battery)
- 6.0 kg
- Ambient temperature for operation
- -17 °C to 60 °C

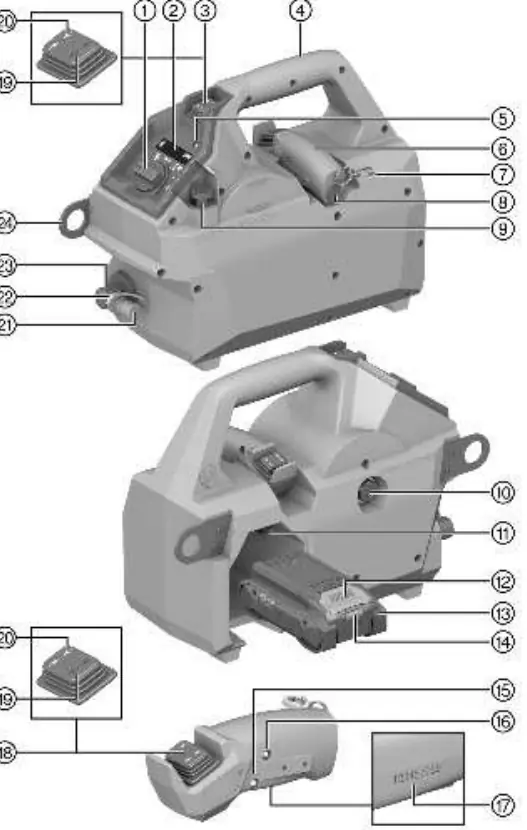

Images and diagrams
- 1: Rotary selector switch
- 3: Non-latching rocker switch on pump
- 6: Remote control unit
- 9: Emergency return button
Model compatibility
- Use only Hilti Nuron Li-Ion batteries of the B 22 series.
- Use only Hilti chargers of the specified type series.
- Use only crimping, pressing, cutting, and punching heads designed for this pump.

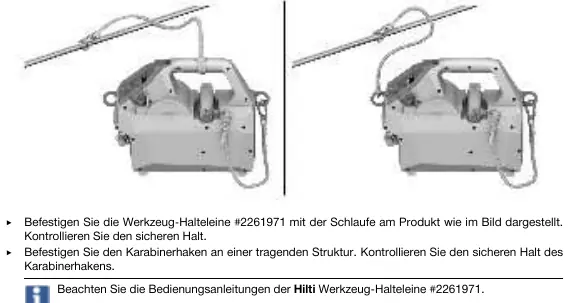

- Use only Hilti tool tethers #2261971 and #2261970 for fall arrest.
