User Manual for Home Accents Holiday 12ft Motion LED Cone Tree

Quick guide from the manual

This document provides instructions for the Home Accents Holiday 12ft Motion LED Cone Tree. Before assembly, ensure all parts are present. The tree is designed for both indoor and outdoor use. Always ensure connections are secure and the power adapter is properly connected to a suitable outlet.

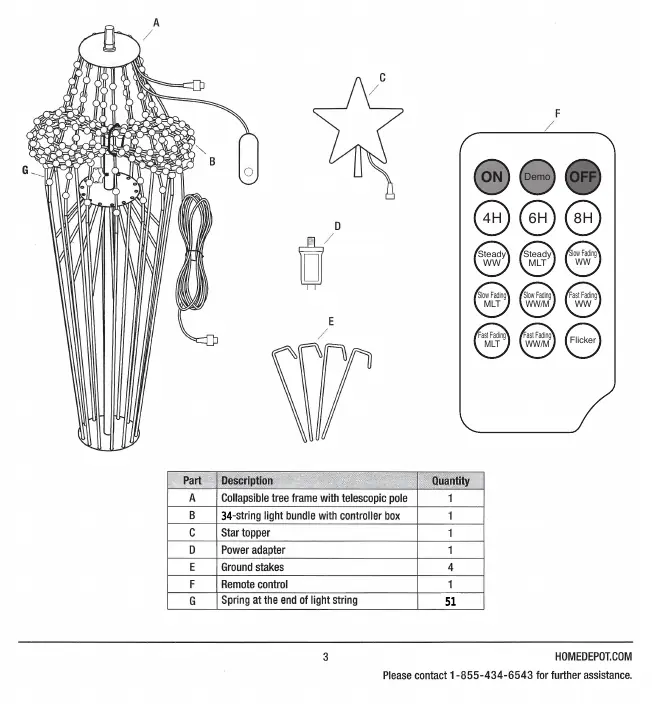

Package Contents

• Collapsible tree frame with telescopic pole
• 34-string light bundle with controller box
• Star topper
• Power adapter
• 4 Ground stakes
• Remote control

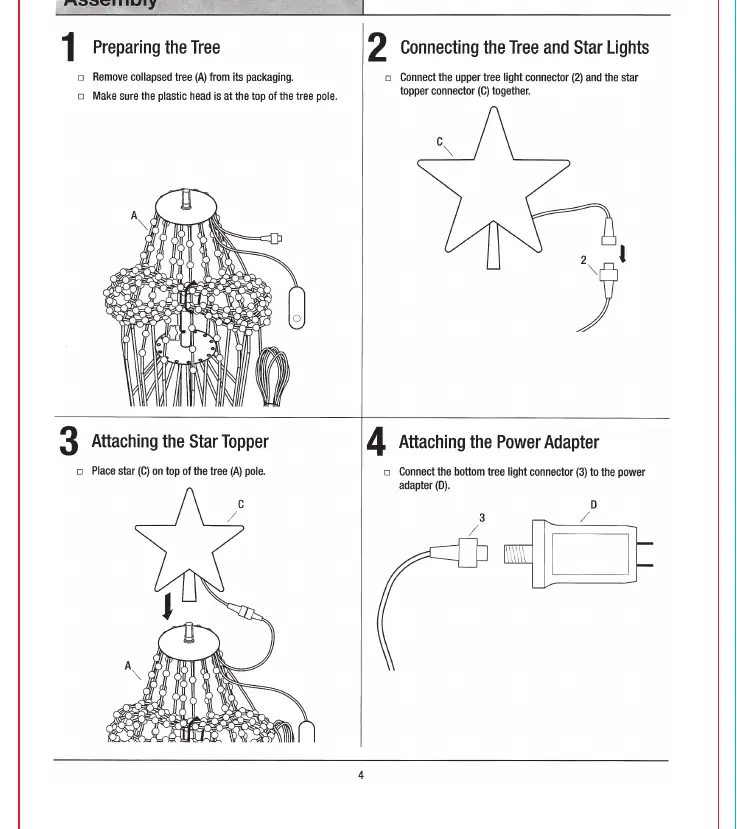

Assembly Instructions

1. Preparing the Tree: Remove the collapsed tree from packaging and ensure the plastic head is at the top of the pole.
2. Connecting Lights: Connect the upper tree light connector to the star topper connector.
3. Attaching the Star: Place the star on top of the tree pole.
4. Power Adapter: Connect the bottom tree light connector to the power adapter.

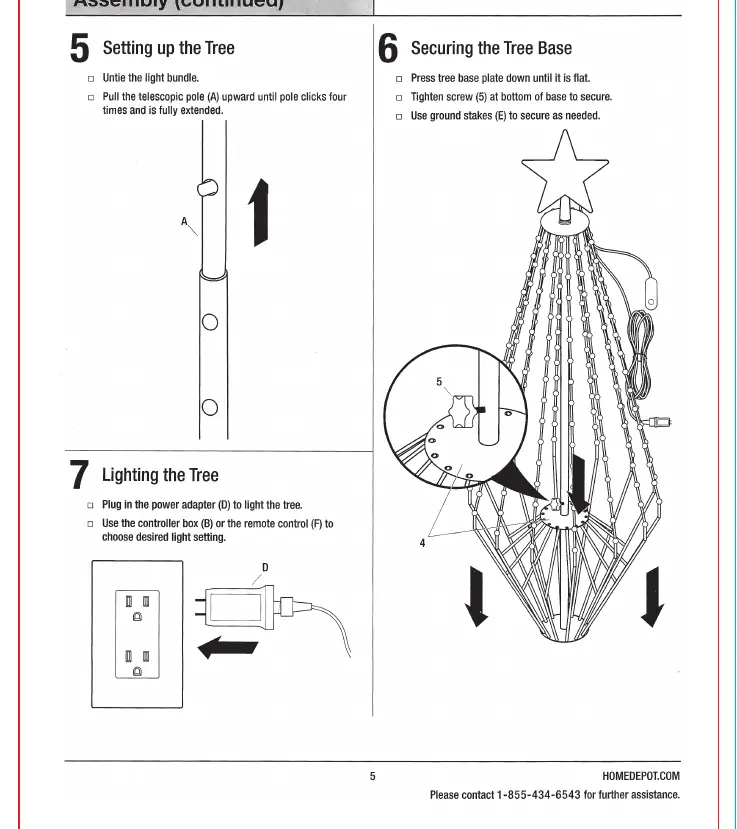

5. Setting up: Untie the light bundle and pull the telescopic pole upward until it clicks four times and is fully extended.
6. Securing: Press the tree base down until flat, tighten the screw at the bottom, and use ground stakes to secure the base.
7. Lighting: Plug in the power adapter and use the controller box or remote to select lighting settings.

Remote Control Operations

The tree is pre-set to Demo Mode. To deactivate, press any other function button.

• ON: Turn on the lights.
• OFF: Turn off the lights.
• Demo: Cycles through all functions (1-9).
• 4H/6H/8H: Sets the work time for 4, 6, or 8 hours.
• Lighting Modes: Includes Steady, Slow Twinkle, Fast Twinkle, and Flash options in Warm White (WW), Multi-color (MLT), or a mix (WW/M).

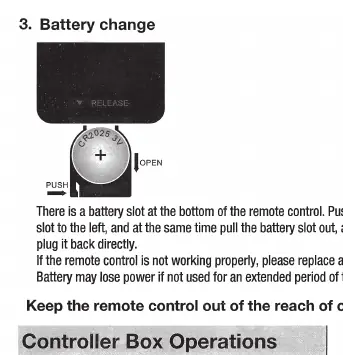

Battery Replacement

The remote uses a CR2025 3V battery. To replace: push the movable block on the right side of the battery slot to the left, pull the battery slot out, replace the battery, and push it back in.

Troubleshooting

If the tree does not light when plugged in, check to ensure all light string connections are secure.

Safety Information

This product contains a button cell or coin battery which is an ingestion hazard. Keep new and used batteries out of reach of children. Do not use seasonal products outdoors unless marked suitable for indoor and outdoor use. Do not mount or place near gas or electric heaters, fireplaces, candles, or other similar sources of heat.
