User Manual for Anko 1.82M Flocked Slim Pre Lit Christmas Tree

Quick Guide from the Manual

This document provides instructions for the assembly, safe operation, and storage of the Anko 1.82M Flocked Slim Pre Lit Christmas Tree. The tree is designed for indoor use only. Ensure all parts are present before assembly: Tree Top, Upper Body, and Plastic Stand.

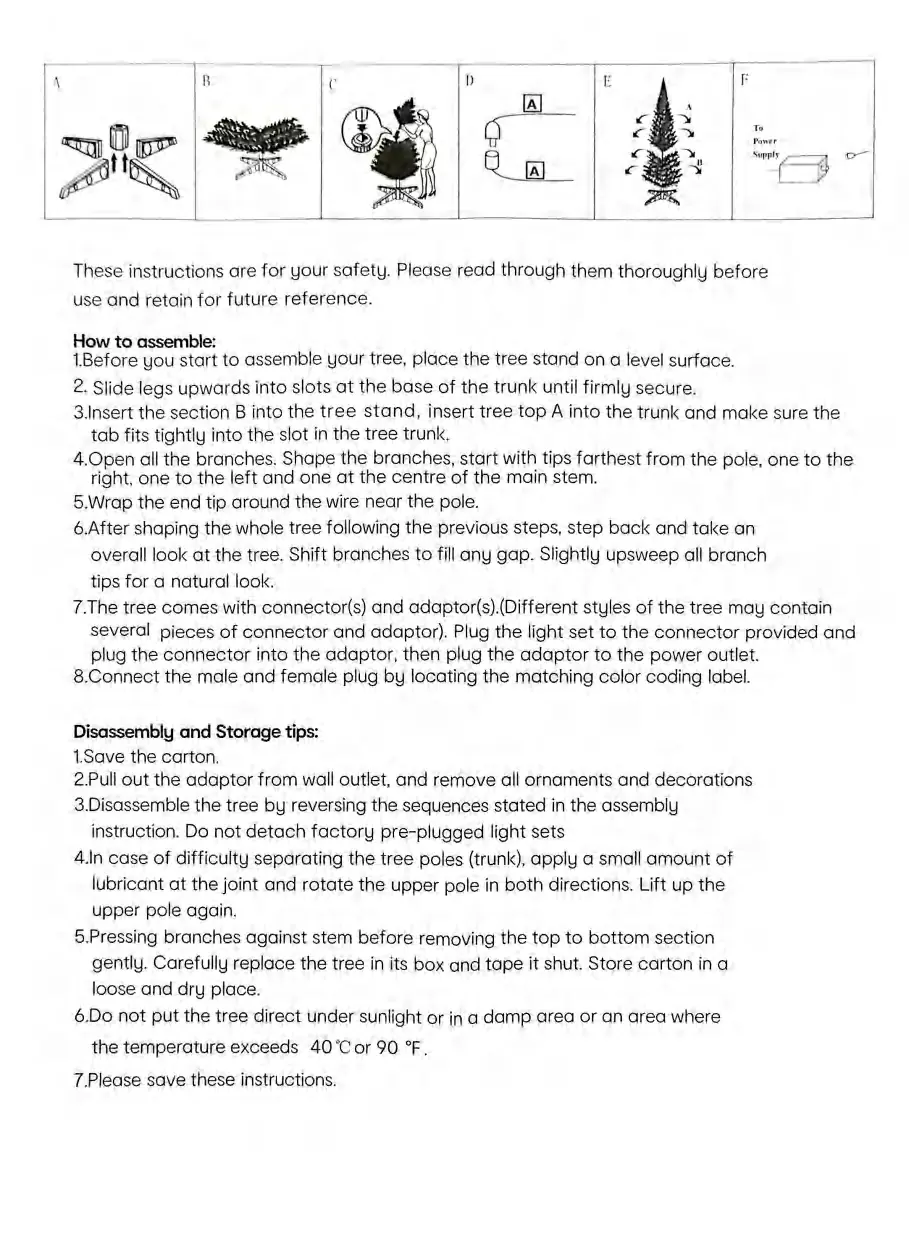

Assembly Instructions

1. Place the tree stand on a level surface.
2. Slide the legs upwards into the slots at the base of the trunk until they are firmly secure.
3. Insert section B into the tree stand, then insert tree top A into the trunk. Ensure the tab fits tightly into the slot in the tree trunk.
4. Open all branches. Shape the branches by starting with the tips farthest from the pole, moving one to the right, one to the left, and one at the center of the main stem.
5. Wrap the end tip around the wire near the pole.
6. Step back and take an overall look at the tree. Shift branches to fill any gaps and slightly upsweep all branch tips for a natural look.
7. Connect the light set to the provided connector and plug the adaptor into the power outlet.
8. Connect the male and female plugs by locating the matching color-coded labels.

Disassembly and Storage

• Save the original carton for storage.
• Unplug the adaptor from the wall outlet and remove all ornaments and decorations.
• Disassemble the tree by reversing the assembly steps. Do not detach factory pre-plugged light sets.
• If you have difficulty separating the tree poles, apply a small amount of lubricant at the joint and rotate the upper pole in both directions before lifting.
• Press branches against the stem before removing the top-to-bottom sections gently.
• Store the carton in a cool, dry place. Do not store in areas where the temperature exceeds 40°C (90°F) or in damp areas.

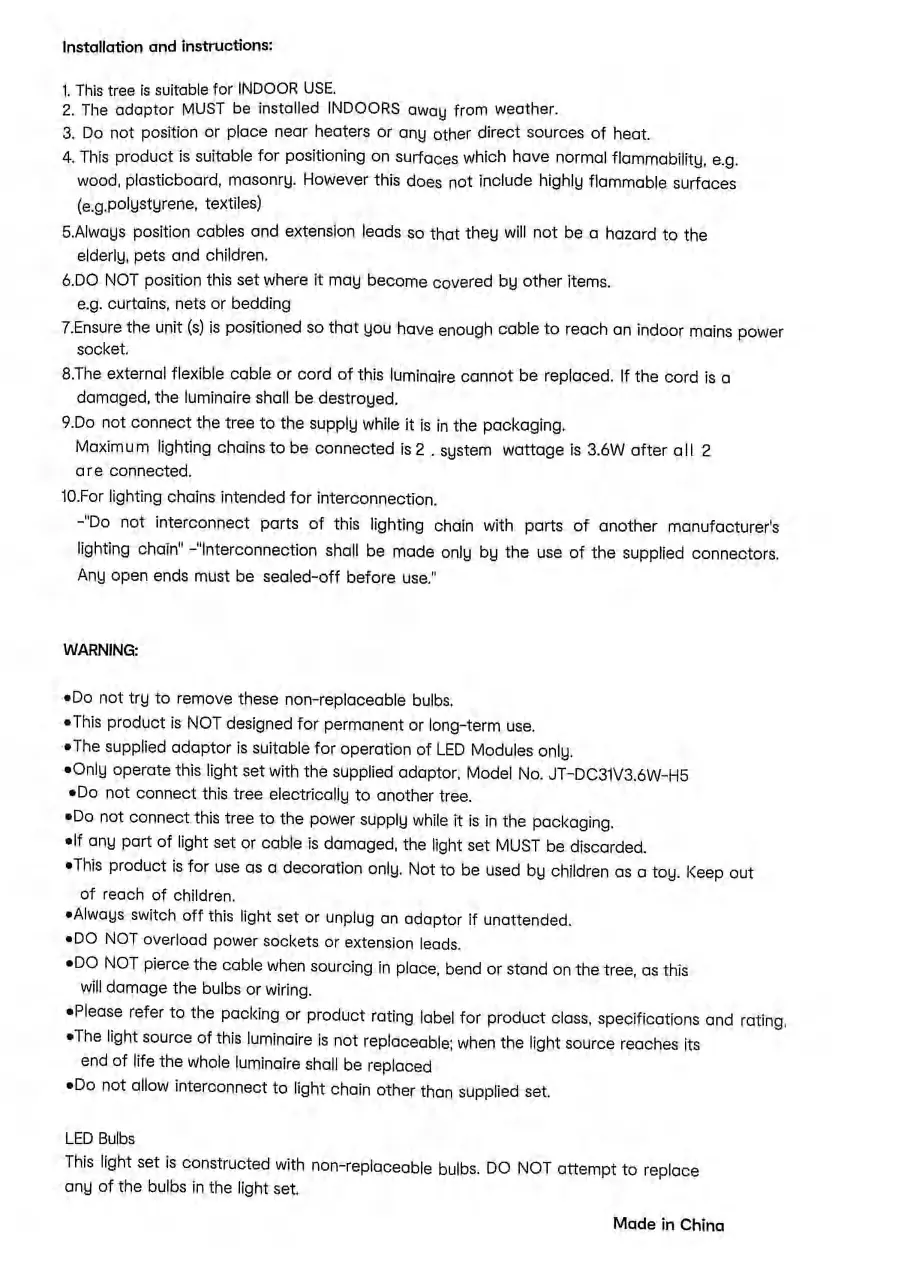

Safety and Installation Warnings

• Indoor Use Only: The tree and adaptor must be installed indoors, away from weather and direct heat sources.
• Surface Safety: Position on surfaces with normal flammability (e.g., wood, plasterboard, masonry). Do not place on highly flammable surfaces like polystyrene or textiles.
• Cable Safety: Position cables so they do not pose a hazard to the elderly, pets, or children. Do not cover the tree or cables with other items like curtains or bedding.
• Interconnection: Do not interconnect parts of this lighting chain with parts from another manufacturer. Use only the supplied connectors.
• Bulb Safety: The bulbs are non-replaceable. Do not attempt to remove or replace them. If the light set or cable is damaged, the entire set must be discarded.

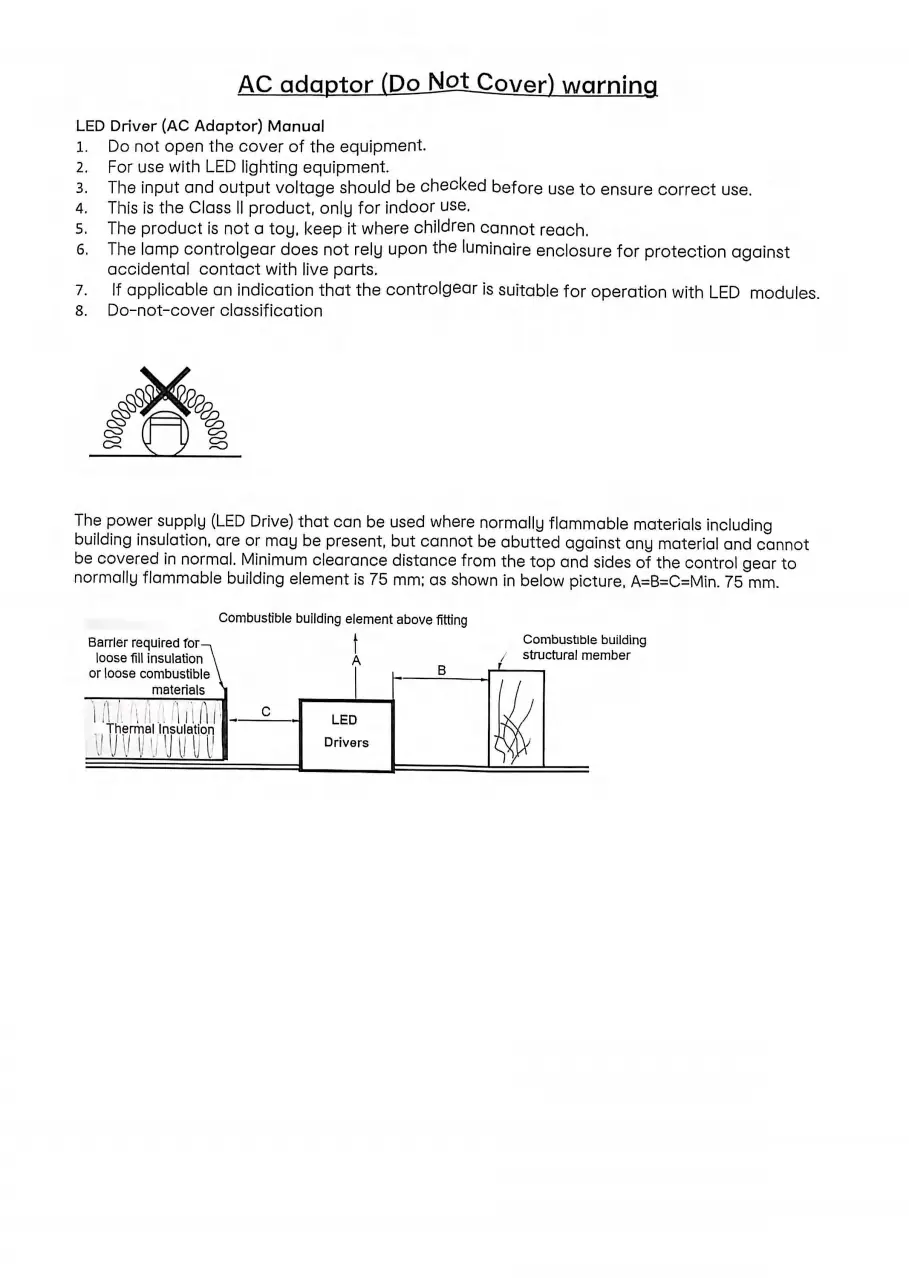

Adaptor and Electrical Specifications

The tree uses a specific LED driver (AC Adaptor). Model No: JT-DC31V3.6W-H5.

• Do not open the cover of the equipment.
• This is a Class II product.
• The power supply must not be covered.
• Maintain a minimum clearance distance of 75mm from the top and sides of the control gear to any combustible building elements.
• Maximum system wattage is 3.6W.
