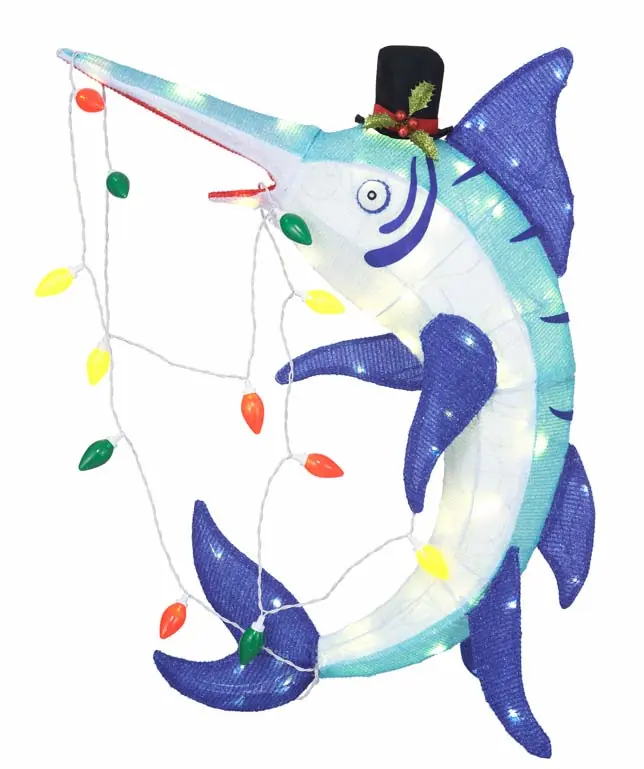

Assembly and Care Guide for Home Accents Holiday 3ft LED Marlin

Quick guide from the manual

This guide provides instructions for the assembly and maintenance of the Home Accents Holiday 3ft LED Marlin. Before beginning, ensure you have all parts listed in the parts list and assemble the product on a flat, level surface. Do not attempt to assemble if any parts are missing or damaged.

Planning Assembly

Carefully remove all parts from the box. Many parts are connected by the lighting string; take care not to pull, cut, or damage it. It is recommended to assemble the product while laying flat on the ground or a table rather than standing it up.

Assembly Instructions

1. Assembling the Tail and Adipose Fins: Insert the connecting rods on the top of the Tail (D) into the connecting holes on the bottom of the Body (C). Insert the connecting rods on the top of the Adipose Fins (G) into the matching holes on the Body (C) and fasten at the connecting loops with Plastic Ties (K).
2. Assembling the Bill / Mouth and Head: Insert the hooked end of the metal bars on the Bill/Mouth (A) into the metal frame on the top of the Head (B). Insert the connecting rods on the bottom of the Mouth (A) into the opening at the top of the Head (B). Then, insert the connecting rods on the bottom of the Head (B) into the connecting holes on the top of the Body (C) and fasten with Plastic Ties (K).
3. Assembling the Pectoral Fins and Dorsal Fins: Insert the connecting rods on the Pectoral Fins (E) into the matching connecting holes on the Head (B) and Body (C). Insert the connecting rods on the front and rear Dorsal Fins (F) into the matching connecting holes of the Head (B) and Body (C).

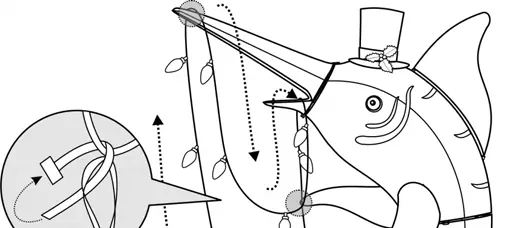

4. Assembling the Light String: Wrap the Light String (H) around the body of the fish and secure it with the Plastic Ties (K) at the metal frame locations specified in the diagram.
5. Assembling the Ground Stakes: Insert the Ground Stakes (L) over the metal frame on the Tail and the Adipose Fins, then push them firmly into the ground.

Pre-Operation and Safety

Caution: The lighting string is rated at 4.8 Watts (0.04 Amps). Do not overload. Do not connect to other lighting strings or electrical products. Always grasp the plug to insert or remove it from the power source; do not unplug by pulling on the cord. Inspect the product for cuts, damage, frayed wire insulation, or loose connections before use.

Care and Cleaning

• Carefully remove the product from its location to avoid strain on connections.
• Disassemble the unit carefully, ensuring no electrical wires are cut.
• Wipe the unit with a damp cloth and allow it to dry completely before storing.
• Store in a cool, dry location protected from sunlight.

Troubleshooting

• Ensure the surface is flat and level.
• Verify the item is plugged correctly into a wall outlet or UL Listed Power Cord.
• Check that all parts are assembled properly.
• If the item does not light, check for loose or broken bulbs and connections.
• Check for a broken or burned-out fuse in the plug.

Warranty

This product is intended for residential seasonal use for a maximum of 90 days per year. It is covered by a 90-day limited guarantee for defects in material and workmanship. For questions or missing parts, contact Home Accents Holiday Customer Service at 1-855-HDHoliday (1-855-434-6543), Monday-Friday, 8 a.m.-6 p.m. EST.
