User Manual for Home Accents Holiday 22SV23175 Animated Reindeer
Quick guide for the Home Accents Holiday 22SV23175 Animated Reindeer. Includes assembly instructions, operation settings, sensor range, and safety warnings.
Quick answers from the manual
Quick answer
- The 22SV23175 Animated Reindeer is an indoor decoration with three modes: ON (continuous), OFF/TRY ME (external trigger), and SENSOR (motion-activated). It requires assembly of legs, head, and antlers, and uses a 5.9V power adapter. p. 1, 2
Key actions
- Assemble legs to body p. 1
- Connect power adapter p. 2
First start
- Connect the power adapter to the control box on the body, then select the desired mode (ON, OFF/TRY ME, or SENSOR) using the switch. p. 2
Show 4 more answers Show less
Problems and fixes
Item does not work
Check switch setting, ensure sensor is not blocked, ensure surface is flat, and verify power connection.
p. 1, 2Maintenance and reset
- Store in original packaging when not in use. Keep away from heat and moisture. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Sensor Range | 2m / 6.5 ft | Detection distance | p. 2 |
| Sensor Angle | 80 degrees | Detection field | p. 2 |
| Power Input | 100-240VAC 50/60Hz | p. 1 | |
| Power Output | 5.9V 2A | Voltage/Current | p. 1 |
Where to find it in the PDF
- Assembly Instructions p. 1
- Operation and Safety p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Home Accents Holiday 22SV23175 Animated Reindeer is designed for indoor use. It features an infrared (IR) sensor with a range of up to 2 meters (6.5 ft) and an 80-degree detection angle. Ensure the floor is flat and level, and keep the sensor area clear for proper operation.
Parts List
- Body (A)
- Right Hind Leg (B), Left Hind Leg (C), Left Leg (D), Right Leg (E)
- Head (F)
- Right Antler (G), Left Antler (H)
- Polybag with Small Parts (Screws, Hex Key, Bells)
- Power Adapter (J)
Assembly Instructions
- Leg Assembly: Fit the legs (B, C, D, E) onto the body (A) before fastening the screws. Do not overtighten.
- Head and Antlers: Attach the head (F) to the body. Attach the antlers (G, H) to the head.
- Connections: Connect all wire pairs by matching the colors to ensure proper operation.
- Bells: Assemble the bells to the clips provided.
- Cotter Pins: Ensure cotter pins are inserted into the holes as shown in the diagrams.
Operation Instructions
Plug the power adapter into a standard power outlet and connect it to the Function Control Box located on the body. Use the switch on the control box to select the desired mode:
- ON: Continuously operates the sound and animation.
- OFF / TRY ME: The item remains off unless triggered by an external 'Try Me' activation pad (not included).
- SENSOR: Activates sound and animation when the IR sensor detects motion within its range.
Use the volume control dial to raise or lower the volume, or turn it all the way down to mute.
Safety and Care
- Indoor Use Only: Operate the item indoors and keep away from heat and moisture.
- Safety Warnings: This item is not a toy. It contains small parts that pose a choking hazard. Do not climb onto the reindeer.
- Storage: When not in use, store the product in its original packaging.
Manufacturer information
Home Accents Holiday
Practical help
Common problems
Item does not work
Check that the switch on the control box is set to the desired mode. Ensure the floor is flat and level. Verify that nothing is blocking the IR sensor. Check all wire connections.
Sensor not triggering
Ensure the sensor is not blocked and that the movement is within the 2m / 6.5 ft range and 80-degree field of view.
Before use
- Ensure the floor or surface is flat and level.
- Verify that the IR sensor is not blocked.
- Connect all wire pairs by matching colors.
- Use only the power adapter supplied by the manufacturer.
- Ensure all screws are fastened but not overtightened.
Show more Show less
Specs in practice
- Sensor Range
- Up to 2 meters (6.5 ft)
- Sensor Angle
- 80-degree field of view (left-to-right, above, and below)
- Power Output
- 5.9V 2A
Images and diagrams

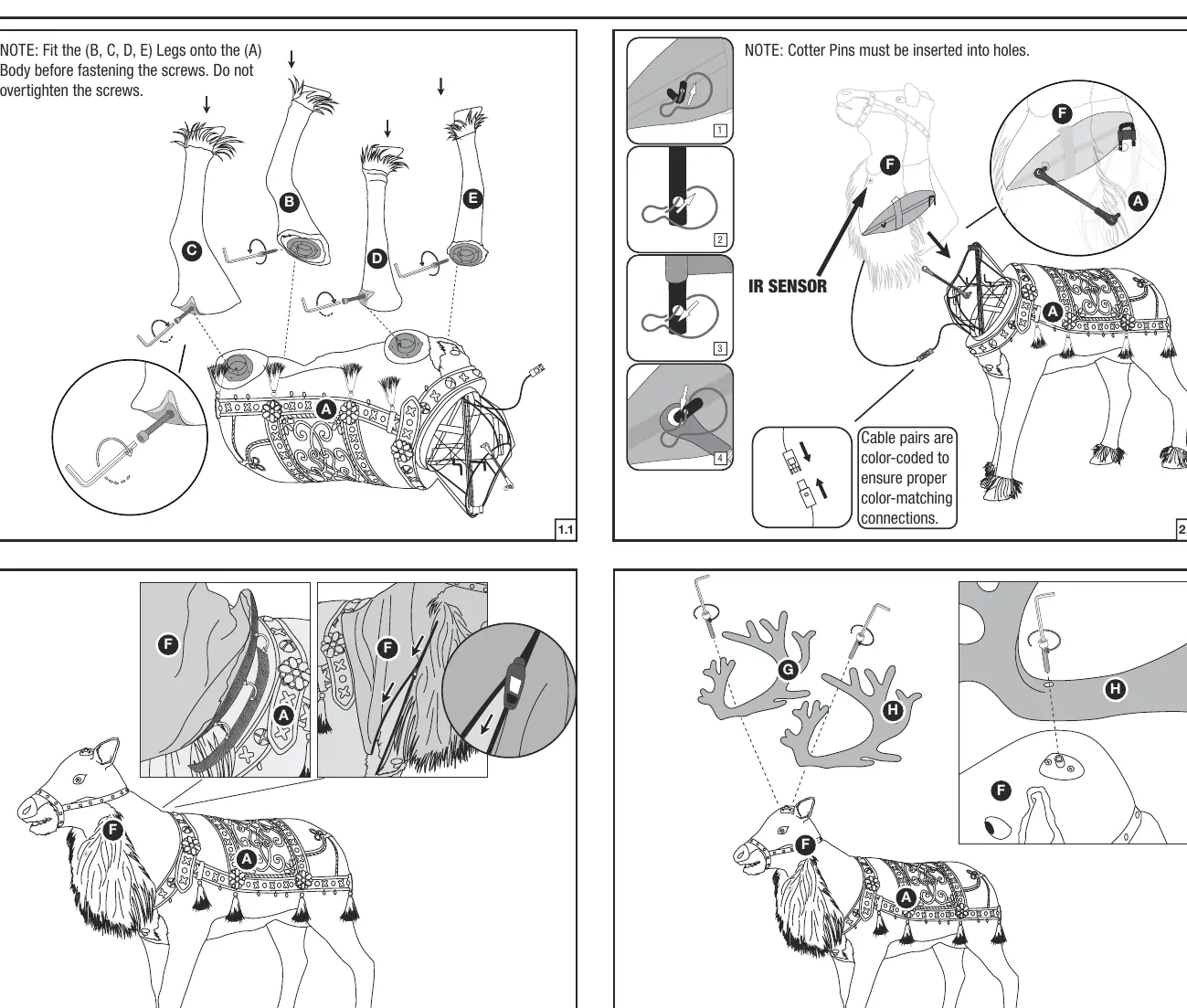

- Assembly diagrams show the correct attachment points for legs (B, C, D, E) to the body (A).
- Cable connection diagrams emphasize matching color-coded pairs.

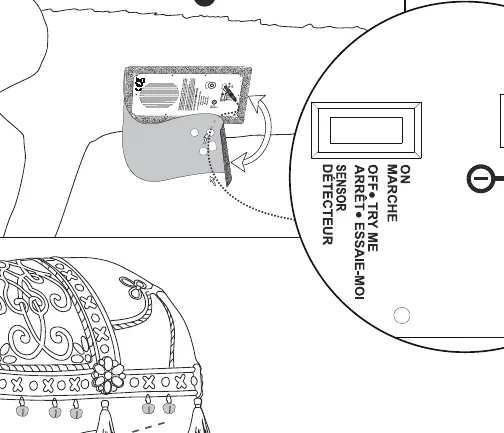

- Control box diagram illustrates the switch positions (ON, OFF/TRY ME, SENSOR) and volume dial.
