User Manual for Home Accents Holiday 7.5ft Dunland Fir LED Tree
Quick guide for the Home Accents Holiday 7.5ft Dunland Fir LED Tree. Includes assembly instructions, remote control operation, lighting modes, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- The Home Accents Holiday 7.5ft Dunland Fir LED Tree is an indoor-use artificial tree. It features 8 lighting modes controlled by a foot pedal or remote. Assembly involves connecting three sections to a stand and shaping the branches. p. 1, 2
Key actions
- Assemble the tree by connecting the three sections (A, B, C) to the stand (D). p. 1
- Operate lighting modes using the foot pedal or remote control. p. 2
- Replace fuses or bulbs when necessary. p. 2, 3
First start
- Remove insulation tape from the remote control. p. 2
- Assemble the stand and connect the three tree sections. p. 1
Show 4 more answers Show less
Problems and fixes
The tree does not light
Check connections between sections, check the power outlet, check the fuse, and check for loose/broken bulbs.
p. 3
Loose branches
Reinstall with a spare rivet (H) using pliers.
p. 3Maintenance and reset
- Replace fuse with 3 Amp, 125 Volt fuse. p. 2
- Replace burned-out LED bulb with 3.0 Volt, 20 mA LED bulb. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Electrical Rating | 0.64 A, 120 V, 60 Hz | Power requirements | p. 1 |
| Fuse | 3 Amp, 125 Volt | Replacement fuse rating | p. 2 |
| LED Bulb | 3.0 Volt, 20 mA | Replacement bulb rating | p. 2 |
| Remote Battery | CR2025 (3 Volt) | Battery type | p. 2 |
Where to find it in the PDF
- Safety and Assembly p. 1
- Operation and Maintenance p. 2
- Troubleshooting and Warranty p. 3
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Home Accents Holiday 7.5ft Dunland Fir LED Tree is designed for indoor use only. It features 8 distinct lighting modes controlled via a foot pedal or the included remote control. Before assembly, ensure you have all parts and inspect the product for any damaged wires or loose connections. Always unplug the tree before performing any maintenance, such as replacing fuses or bulbs.

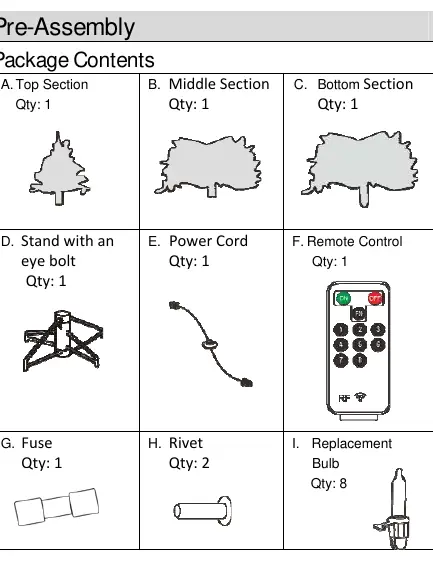

Package Contents
- A. Top Section (Qty: 1)
- B. Middle Section (Qty: 1)
- C. Bottom Section (Qty: 1)
- D. Stand with eye bolt (Qty: 1)
- E. Power Cord (Qty: 1)
- F. Remote Control (Qty: 1)
- G. Fuse (Qty: 1)
- H. Rivet (Qty: 2)
- I. Replacement Bulb (Qty: 8)
Assembly
Assembling the tree stand:
- Choose a location near a wall outlet.
- Open the stand to a 90-degree angle until the hole lines up with the hole on the tube.
- Screw the eye bolt into the hole.
Assembling the tree:
- Remove protective covers from the base of the pole for each tree section.
- Insert the bottom section (C) into the tree base and tighten the screw.
- Insert the middle section (B) into the bottom section (C).
- Insert the top section (A) into the middle section (B).
- Allow branches to fall into place or gently pull them up and out. Ensure all wires are free of branch hinges.
- Shape the branches by starting with tips closest to the pole, shaping one tip to the right, one to the left, and one at the center of the main stem.
Operation
Plug the power cord from the tree section (C) into a proper outlet. You can change the 8 lighting options using the foot pedal switch or the remote control. Before using the remote, pull out the insulation tape. If the remote does not work, check the battery (CR2025, 3V).
Lighting Options:
- 1. Warm White Steady
- 2. Warm White Flashing
- 3. Warm White Slow Fade
- 4. Multi Steady
- 5. Multi Flashing
- 6. Multi Slow Fade
- 7. Warm White-Multi Sequential
- 8. Warm White-Multi Color Changing
Maintenance
Replacing the fuse: If the tree does not light, the fuse may be blown. Unplug the tree, slide open the fuse access cover on the attachment plug, and replace the fuse with a 3 Amp, 125 Volt fuse.
Replacing the lamp: Unplug the tree. Unlock the burned-out LED bulb by lifting the hook and pulling the bulb and plastic base straight out. Replace with a 3.0 Volt, 20 mA LED bulb only. Do not twist the bulbs.
Storage: Remove all ornaments, unplug the tree, lift sections apart, fold branches, and store in a cool, dry place away from sunlight.
Troubleshooting
If the tree does not light, ensure all sections are connected securely, check the power outlet, check the fuse, and inspect for loose or broken bulbs. If a branch falls off, place it into the slot of the bracket and use a spare rivet (H) with pliers to crimp it in place.
Manufacturer information
Home Accents Holiday
Practical help
Common problems
Tree does not light
Ensure all sections are connected, check the power outlet, check the fuse in the plug, and inspect for loose or broken bulbs.
Remote control not working
Ensure the insulation tape has been removed from the remote. If it still fails, replace the CR2025 (3V) battery.
Loose branch
Reinstall the branch into the bracket slot and secure it using a spare rivet (H) and pliers.
Before use
- Inspect product for cut, damaged, or frayed wire insulation.
- Check for cracks in lampholders or enclosures.
- Ensure indoor use only.
- Remove insulation tape from the remote control.
- Ensure all tree sections are connected securely.
Show more Show less
Specs in practice
- Electrical Rating
- 0.64 A, 120 V, 60 Hz
- Remote Battery
- CR2025 (3 Volt)
Images and diagrams
- Fig 1-3: Assembly of tree sections into the stand.
- Fig 4: Branch shaping technique.
- Fig 5: Side view of branch shaping.

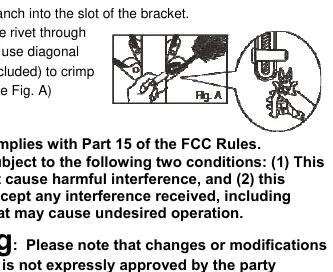

- Fig A: Repairing a loose branch with a rivet.
Model compatibility
- For indoor use only.
- Not intended for permanent installation.
