Assembly and Operation Instructions for Home Accents Holiday 22SV23267 Teary the Clown Animatronic
Quick guide for assembling and operating the Home Accents Holiday 22SV23267 Teary the Clown Halloween animatronic. Includes parts list, step-by-step assembly, sensor settings, and troubleshooting tips.
Quick answers from the manual
Quick answer
- This manual provides assembly and operation instructions for the 22SV23267 Teary the Clown animatronic, including setup, sensor settings, and troubleshooting. p. 1, 2, 3
Key actions
- Assemble the base, poles, torso, and limbs according to the numbered steps. p. 1, 2
- Connect all color-coded cables. p. 2
- Select the desired operation mode (Sensor, Try Me, or On) on the control box. p. 3
First start
- Plug the power adapter into a standard power outlet and adjust the settings on the Function Control Box. p. 3
Show 3 more answers Show less
Problems and fixes
Item not functioning properly
Ensure cables are connected to their corresponding cable, nothing is blocking movement/sensor, and the floor is level.
p. 1, 3Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Input | 100-240VAC 50/60Hz | Power input requirements | p. 1 |
| Output | 5.9V 2A | Power output requirements | p. 1 |
| Sensor Range | 2m / 6.5ft | Maximum activation distance | p. 3 |
Where to find it in the PDF
- Parts List and Base Assembly p. 1
- Torso and Limb Assembly p. 2
- Operation and Troubleshooting p. 3
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

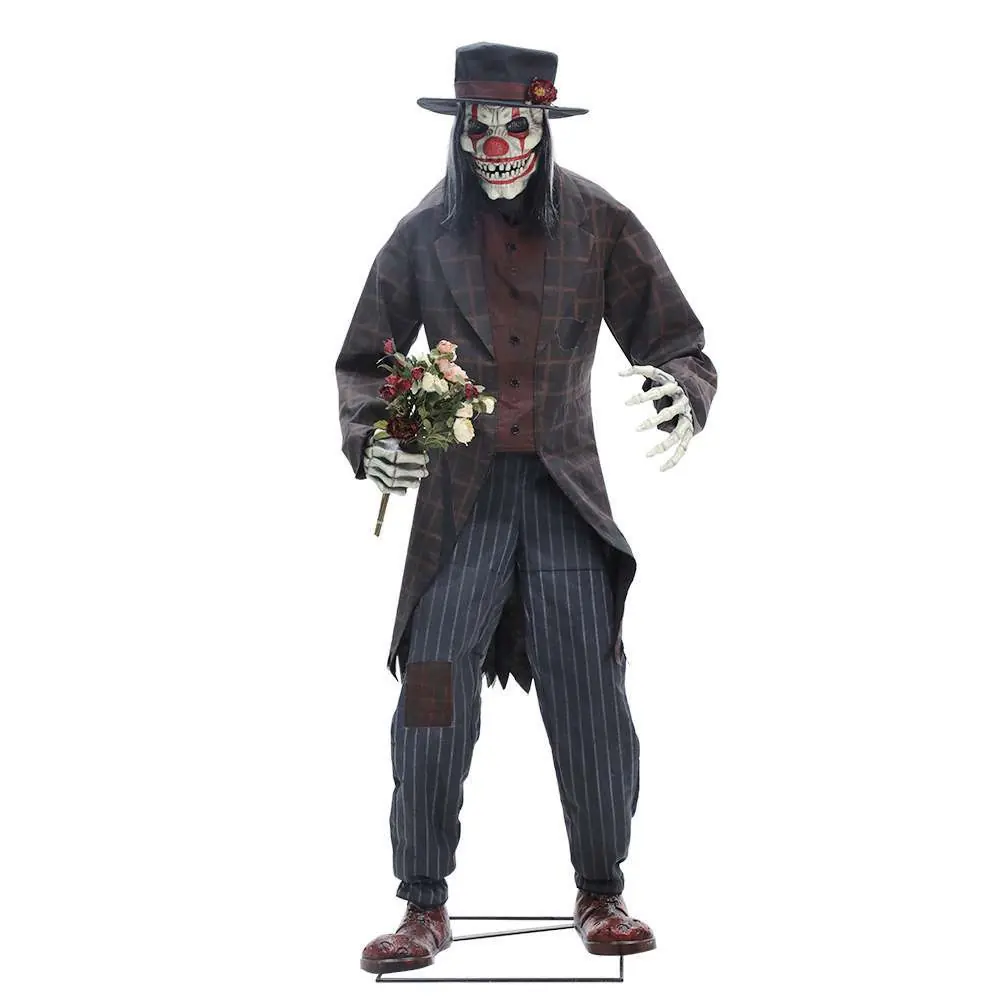

This document provides instructions for the assembly and operation of the 22SV23267 Teary the Clown animatronic. The product is designed for indoor use only. Ensure the floor or surface is flat and level to prevent tipping. All wire connections are color-coded to ensure proper assembly.
Parts List
- A: Base (x1)
- B: Lower Support Poles (x2)
- C: Shoes (x2)
- D: Upper Support Poles (x2)
- E: Foam Tubes (x2)
- F: Pants (x1)
- G: Lower Torso Frame (x1)
- H: Hip Hoop (x1)
- I: Upper Torso Frame (x1)
- J: Shoulder Frame (x1)
- K: Shirt (x1)
- L: Left Arm (x1)
- M: Right Arm (x1)
- N: Right Hand (x1)
- O: Bouquet (x1)
- P: Left Hand (x1)
- Q: Head (x1)
- R: Hat (x1)
- S: Adapter (x1)
Assembly Instructions
- Base and Poles: Insert the Lower Support Poles (B) into the Base (A). Slide the Shoes (C) onto the poles.
- Pants and Torso: Place the Pants (F) over the poles. Insert the Lower Torso Frame (G) into the poles.
- Upper Body: Attach the Upper Torso Frame (I) to the Lower Torso Frame (G). Insert the Shoulder Frame (J) into the Upper Torso Frame.
- Clothing and Arms: Place the Shirt (K) over the torso. Attach the Left Arm (L) and Right Arm (M) to the shoulder frame.
- Hands and Accessories: Attach the Left Hand (P) and Right Hand (N). Attach the Bouquet (O) to the hand.
- Head: Attach the Head (Q) to the torso frame and place the Hat (R) on the head.
- Connections: Connect all color-coded cables to their corresponding counterparts. Plug the adapter into the Function Control Box and a wall outlet.
Operation Instructions
The Function Control Box has three settings:
- Sensor (IR): Activates lights, sound, and animation when the sensor is triggered. Range is up to 2m/6.5ft with an 80-degree angle.
- Try Me: Allows activation only when a Step Here Try Me Activation Pad (not included) is used.
- On: Continuously operates lights, sound, and animation.
Use the volume control dial to adjust the sound level or turn it off.
Troubleshooting
- Item not working: Ensure the adapter is plugged in, the switch is on the desired setting, and cables are connected correctly.
- Sensor issues: Ensure nothing is blocking the sensor.
- Movement issues: Ensure nothing is blocking the movement or caught in moving parts.
Safety and Care
- This item is for decoration only and is not a toy.
- Contains small parts; keep away from children.
- Keep flammables away from the adapter as it heats up during operation.
- Store in original packaging when not in use.
Manufacturer information
Home Accents Holiday
Practical help
Common problems
Mouth doesn't move, eyes don't light up, or body doesn't move
Ensure all cables are connected to their corresponding color-coded cables as shown in the instruction sheet.
Item not activating
Ensure nothing is blocking the sensor and the switch on the function control box is set to the desired mode.
Item tipping over
Ensure the floor or surface that the item sits on is flat and level.
Before use
- Check all parts against the parts list
- Ensure the floor is flat and level
- Connect all wires according to matching colors
- Plug the adapter into the Function Control Box and wall outlet
Show more Show less
Specs in practice
- Sensor Range
- Up to 2m/6.5ft, 80-degree angle
Images and diagrams
- Assembly steps 1-6 show the sequence of connecting the base, poles, torso, and limbs.
- Cable connections are color-coded to prevent incorrect assembly.
Model compatibility
- For indoor use only.
- Step Here Try Me Activation Pad is not included.
