User Manual for Home Accents Holiday 22SV23269 Hovering Witch
Quick guide for the Home Accents Holiday 22SV23269 Hovering Witch. Includes assembly steps, operation modes, troubleshooting, and safety warnings.
Quick answers from the manual
Quick answer
- The Hovering Witch is an animatronic decoration. It requires 2-3 adults for assembly. It operates on an adapter (5.9V 2.0A) and features multiple modes including Sensor, Timer, and Lights Only. p. 1, 5
Key actions
- Connect all color-coded cables to their corresponding pairs. p. 2, 3
- Set the Function Control Box to SENSOR mode for speech and animation. p. 5
First start
- Plug the power adapter into a standard outlet and press the button on the Function Control Box to select the desired mode. p. 5
Show 4 more answers Show less
Problems and fixes
Witch does not speak
Ensure the switch is set to SENSOR mode.
p. 5
Eyes/body not working
Check cable connections.
p. 1, 5Maintenance and reset
- Store in original packaging away from heat and moisture when not in use. p. 5
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Input | 120VAC 50/60Hz | Power requirement | p. 1 |
| Output | 5.9V 2.0A | Power output | p. 1 |
Where to find it in the PDF

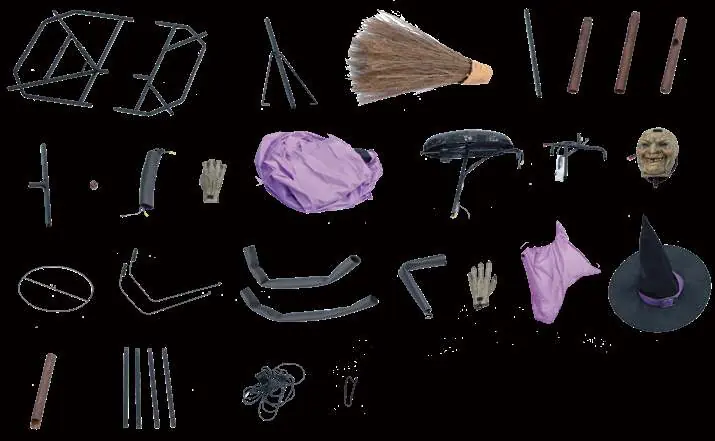

- Parts List and Assembly p. 1, 2, 3, 4
- Operation and Warnings p. 5
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Home Accents Holiday 22SV23269 Hovering Witch is an animatronic decoration designed for indoor or outdoor use. Assembly requires at least 2 adults, with 3 recommended for safety. The unit is powered by an included adapter and features multiple operation modes, including a motion-activated sensor.
Assembly
Follow these steps to assemble the Hovering Witch:
- Base Assembly: Connect the base halves and support poles. Ensure the adapter receiver is properly placed within the broom bristles.
- Frame Assembly: Assemble the broom stick and support poles, guiding the adapter cable through the components as you build.
- Costume and Torso: Slide the costume over the torso frame and arms. Secure the costume using the provided elastics and velcro attachments.
- Head and Hat: Attach the head and secure the hat's elastic band under the chin to ensure proper mouth movement.
- Final Connections: Connect all color-coded cables to their corresponding pairs. Ensure the adapter screw cap is tightened securely.
Operation Instructions
The Hovering Witch is controlled via the Function Control Box with the following settings:
- LIGHTS ONLY: Activates lights and LCD eyes only; no animation.
- SENSOR: Activates lights, sound, and animation when the IR sensor detects movement (up to 2m/6.5ft range). The witch speaks only in this mode.
- TIMER: Cycles 6 hours of LIGHTS ONLY followed by 18 hours off.
- OFF / TRY ME: Deactivates all functions. Can be triggered by an optional Step Here activation pad.
Use the volume control dial to adjust or mute the sound.
Troubleshooting
If the item is not functioning:
- Ensure the adapter is plugged in and the screw cap is tightened.
- Verify the switch is set to the desired mode (e.g., SENSOR for speech).
- Check that all cable connections are secure and color-matched.
- Ensure the sensor is not blocked and the floor is level.
- Check that no clothing or parts are obstructing moving components.
Safety and Care
This item is for decoration only and is not a toy. Keep away from children due to small parts. Do not climb on or pull the product. Lay the product down during storms or strong winds. Store in the original packaging when not in use, keeping it away from heat and moisture.
Manufacturer information
Home Accents Holiday
Practical help
Common problems
Witch does not speak or move
Ensure the control box is set to the SENSOR mode. The witch only speaks in this setting.
Eyes or body not functioning
Check that all color-coded cables are connected to their corresponding pairs.
Sensor not triggering
Ensure nothing is blocking the IR sensor and that the witch is placed in an area with movement.
Before use
- Ensure 2-3 adults are available for assembly.
- Verify the floor or surface is flat and level.
- Check that all cables are connected by matching colors.
- Ensure the adapter screw cap is tightened at the control box.
- Confirm the volume is not turned all the way down.
Show more Show less
Specs in practice
- Power Adapter Input
- 120VAC 50/60Hz
- Power Adapter Output
- 5.9V 2.0A
- Sensor Range
- Up to 2m / 6.5ft
Images and diagrams
- The manual provides a detailed parts list and step-by-step assembly diagrams for the base, frame, costume, and electronics.
Model compatibility
- Compatible with external timers.
- Compatible with Step Here Try Me Activation Pad (not included).
