Assembly Instructions for Home Accents Holiday 60IN Silhouette Nativity Scene 22RT5682235YX
Quick guide for assembling and maintaining your Home Accents Holiday 60IN Silhouette Nativity Scene (Model 22RT5682235YX). Includes step-by-step assembly instructions, parts list, and safety precautions.
Quick answers from the manual
Quick answer
- This manual provides assembly instructions for the 60IN Silhouette Nativity Scene (Model 22RT5682235YX). It covers part identification, step-by-step assembly, safety precautions, and troubleshooting. p. 1, 2
Key actions
- Assemble the nativity scene on a flat surface. p. 1, 2
- Secure the structure to the ground using the provided ground stakes. p. 2
First start
- Identify all parts, assemble the sections using plastic ties and cotter pins, connect the power cords, and secure the unit to the ground. p. 1, 2
Show 4 more answers Show less
Problems and fixes
Item does not light
Check for loose bulbs, ensure all cords are connected, and check the fuse in the plug.
p. 1Maintenance and reset
- Wipe the unit with a damp cloth and allow it to dry before storing in a cool, dry location. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power Rating | 19.2 Watts (0.16 Amps) | Maximum power consumption; do not overload. | p. 1 |
Where to find it in the PDF
- Assembly Instructions and Parts List p. 1, 2
Table of contents
Manual images
Click an image to enlargeImportant Information
This guide provides instructions for the 60IN Silhouette Nativity Scene (Model 22RT5682235YX). It is recommended to assemble the product while laying flat on the ground or a table. Assembly may require more than one person. Do not overload the lighting string, which is rated at 19.2 Watts (0.16 Amps).
Parts List
- A: Top of Stable (1)
- B: Bottom of Stable & Mary (1)
- C: Baby & Baby's Bed (1)
- D: Joseph's Head (1)
- E: Joseph's Body (1)
- F: Right Support Bar (1)
- G: Middle Support Bar (1)
- H: Left Support Bar (1)
- I: Right Base Stand (1)
- J: Left Base Stand (1)
- K: Plastic Tie (30)
- L: Cotter Pin (8)
- M: Ground Stake (8)
Assembly Instructions
- Top of Stable to Bottom of Stable & Mary: Place parts flat on the ground. Insert connecting rods on the bottom of the Top of Stable (A) into the matching holes on the Bottom of Stable & Mary (B) and fasten with Plastic Ties (K).
- Head of Joseph to Body: Insert connecting rods on the bottom of Joseph's Head (D) into the matching holes on the top of Joseph's Body (E) and fasten with Plastic Ties (K).
- Right Base Stand to Bottom of Stable & Mary: Insert connecting rods on the bottom of the Bottom of Stable & Mary (B) and Baby and Baby's Bed (C) into the matching holes on the Right Base Stand (I) and fasten with Plastic Ties (K).
- Left Base Stand to Joseph: Insert connecting rods on the bottom of Joseph's Body (E) into the matching holes on the Left Base Stand (J) and fasten with Plastic Ties (K).
- Support Bars: Insert hooked ends of the Right Support Bar (F) into the back of the Top of Stable (A) and Right Base Stand (I), securing with Cotter Pins (L). Repeat for the Middle Support Bar (G) connecting Baby & Baby's Bed (C) and Right Base Stand (I). Repeat for the Left Support Bar (H) connecting Joseph's Body (E) and Left Base Stand (J).
- Power Plug: Connect the power cord plugs together and secure with the built-in cap screw.
- Securing to Ground: Secure the Nativity Scene to the ground with the Ground Stakes (M) by placing them over the metal frame at the Base Stands. Plug in all end-to-end electrical cords.
Care and Cleaning
Carefully remove the product from its location to avoid strain on connections. Disassemble the unit carefully, ensuring no electrical wires are cut. Wipe the unit with a damp cloth and allow it to dry completely before storing. Store in a cool, dry location protected from sunlight.
Troubleshooting
- Ensure the floor or surface is flat and level.
- Verify the item is plugged correctly into a wall outlet or UL Listed Power Cord.
- Ensure all parts are assembled properly according to the manual.
- If the item does not light, check for loose or broken bulbs and connections.
- Check for a broken or burned-out fuse in the plug.
- Do not plug into other electrical items.
Warranty and Safety
The product is intended for residential seasonal use for 90 days per year. It is covered by a 90-day limited guarantee due to defects in material and workmanship. This warranty does not cover commercial use, normal wear and tear, misuse, unauthorized repairs, or damage caused by shipping/improper handling. For assistance, contact Home Accents Holiday Customer Service at 1-855-HDHoliday (1-855-434-6543).
Manufacturer information
Home Accents Holiday
Practical help
Common problems
Item does not light
Check for loose or broken bulbs, ensure all cords are connected, and check the fuse in the plug.
Parts missing or damaged
Do not attempt assembly; contact customer service or return to the place of purchase with the receipt.
Before use
- Inspect product for cuts, frayed insulation, or cracks before use.
- Ensure floor or surface is flat and level.
- Identify all parts against the parts list.
- Have more than one person for assembly if needed.
Show more Show less
Specs in practice
- Power Rating
- 19.2 Watts (0.16 Amps). Do not overload the circuit.
Images and diagrams

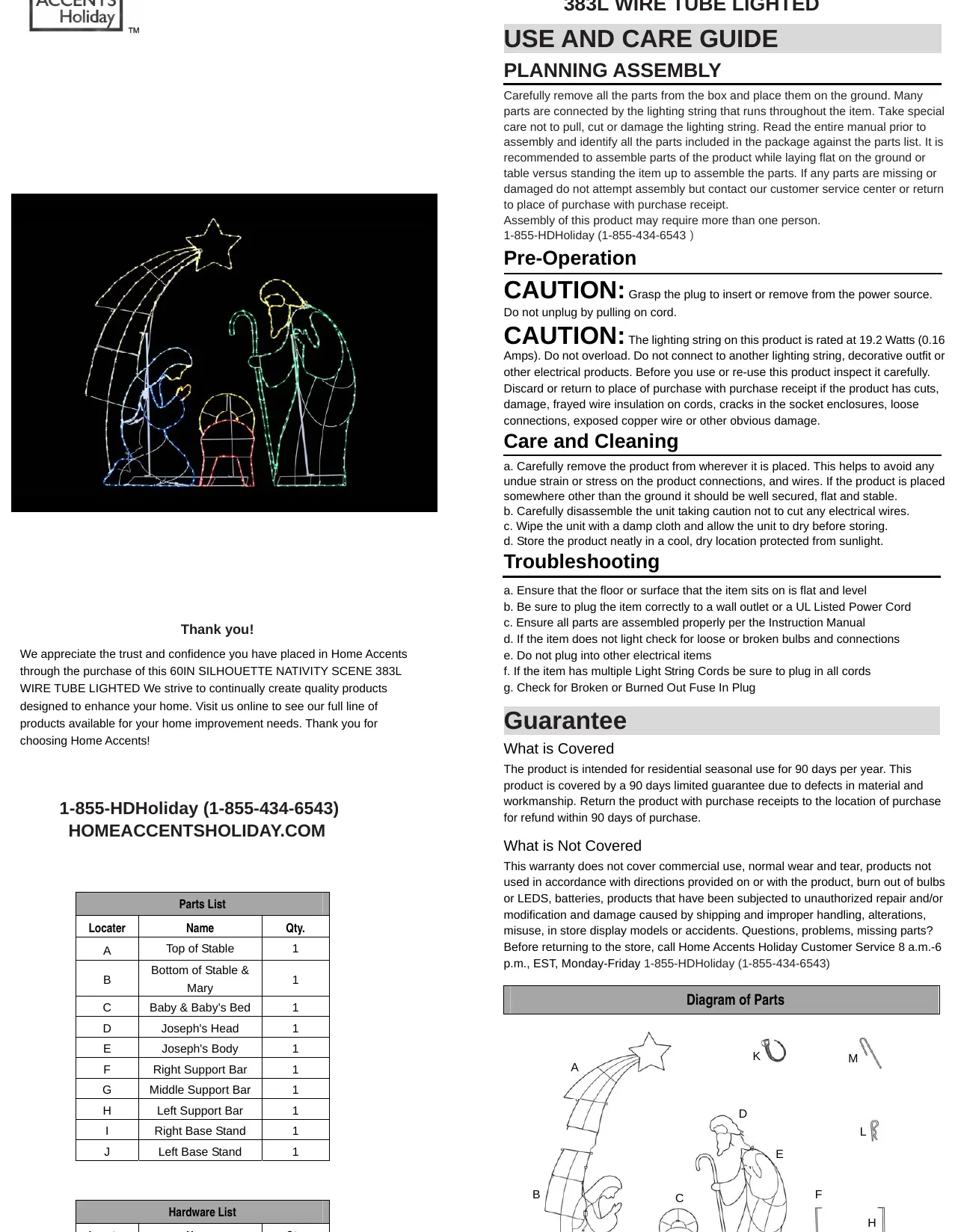

- The Diagram of Parts illustrates the layout of all components (A-J) and hardware (K-M).
