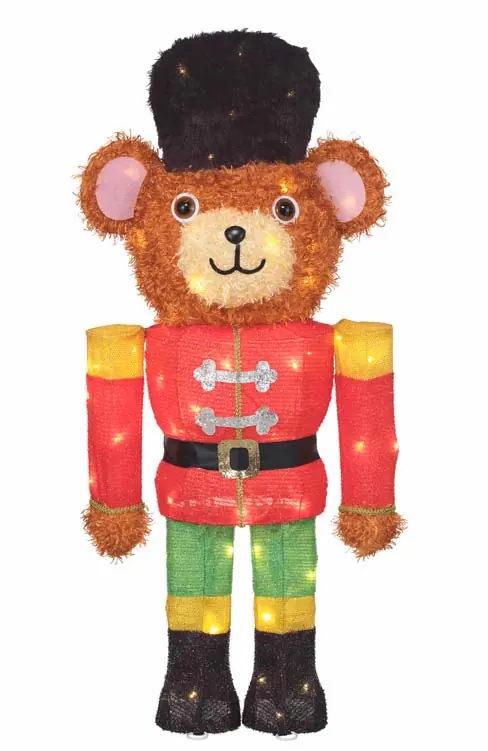

Assembly Instructions for Home Accents Holiday 3ft Yuletide Lane LED Teddy Bear Nutcracker 22RT1772214
Quick guide for assembling and maintaining the Home Accents Holiday 3ft Yuletide Lane LED Teddy Bear Nutcracker (22RT1772214). Includes assembly steps, parts list, and safety precautions.
Quick answers from the manual
Quick answer
- This manual provides assembly instructions for the 3ft Yuletide Lane LED Teddy Bear Nutcracker (22RT1772214), including parts identification, assembly steps, and safety guidelines. p. 1, 2
Key actions
- Assemble the body, legs, arms, and head by inserting connecting rods into holes and securing with plastic ties. p. 2
First start
- Inspect the product for damage, assemble on a flat surface, and plug into a UL listed power outlet. p. 1
Show 4 more answers Show less
Problems and fixes
Item does not light
Check for loose or broken bulbs, connections, and the fuse in the plug.
p. 1Maintenance and reset
- Wipe the unit with a damp cloth and allow to dry before storing in a cool, dry location. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power Rating | 4.8 Watts (0.04 Amps) | Electrical rating of the lighting string. | p. 1 |
Where to find it in the PDF
- Assembly and Safety p. 1
- Assembly Steps p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides instructions for the assembly and care of the 3ft Yuletide Lane LED Teddy Bear Nutcracker. Before assembly, ensure all parts are present and inspect the product for any damage. Assembly is best performed on a flat surface and may require more than one person.
Parts List
- A: Hat & Head (1)
- B: Ears (2)
- C: Half of Body (2)
- D: Arm (2)
- E: Leg & Foot (2)
- Hardware: Spare Bulb (2), Spare Fuse (2), Plastic Tie (15), Ground Stake (4)
Assembly Instructions

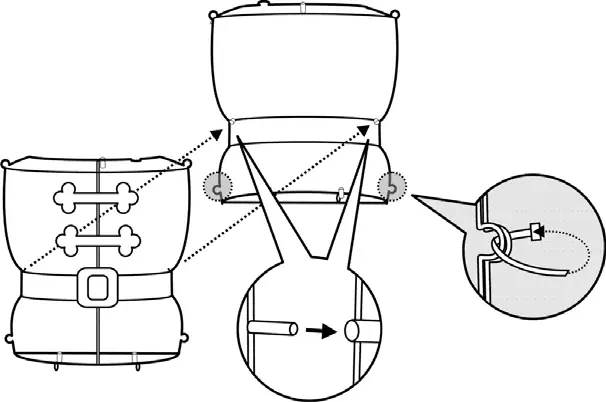

- Assembling the Body: Align the two halves of the body (C). Insert the connecting rods on one half into the connecting holes on the other and fasten using the plastic ties (H).
- Assembling the Legs to the Body: Insert the connecting rods at the top of the legs (E) into the connecting holes at the bottom of the body (C) and fasten with plastic ties (H).
- Assembling the Arms to the Body: Insert the connecting rods on the arms (D) into the connecting holes on the upper sides of the body (C) and fasten with plastic ties (H).
- Assembling the Head and Ears: Insert the connecting rods at the bottom of the head (A) into the connecting holes at the top of the body (C) and fasten with plastic ties (H). Insert the connecting rods of the ears (B) into the holes on the sides of the head (A).
- Assembling the Ground Stakes: Insert the ground stakes (I) over the metal frame at the front and back of each foot and push firmly into the ground.
Safety and Pre-Operation
CAUTION: Grasp the plug to insert or remove from the power source; do not unplug by pulling on the cord. The lighting string is rated at 4.8 Watts (0.04 Amps). Do not overload or connect to other lighting strings or electrical products. Inspect the product carefully before use or re-use. Discard or return if there are cuts, damage, frayed wire insulation, cracks in socket enclosures, or loose connections.
Care and Cleaning
- Carefully remove the product from its location to avoid strain on connections.
- Disassemble the unit carefully, ensuring electrical wires are not cut.
- Wipe the unit with a damp cloth and allow it to dry completely before storing.
- Store in a cool, dry location protected from sunlight.
Troubleshooting
- Ensure the surface is flat and level.
- Verify the item is plugged correctly into a wall outlet or UL Listed Power Cord.
- Check that all parts are assembled properly.
- If the item does not light, check for loose or broken bulbs and connections.
- Check for a broken or burned-out fuse in the plug.
Manufacturer information
Home Accents Holiday
Practical help
Common problems
Item does not light
Check for loose or broken bulbs, ensure all cords are plugged in, and check for a blown fuse in the plug.
Parts missing or damaged
Do not attempt assembly. Contact customer service or return the item to the place of purchase with your receipt.
Before use
- Inspect the product for cuts, damage, or frayed wire insulation.
- Check for cracks in the socket enclosures.
- Ensure all parts are present according to the parts list.
- Assemble on a flat, level surface.
- Do not overload the lighting string.
Show more Show less
Specs in practice
- Power Rating
- 4.8 Watts (0.04 Amps).
Images and diagrams
- The assembly process involves aligning connecting rods with holes and securing the sections together using the provided plastic ties.
Model compatibility
- Do not connect to other lighting strings, decorative outfits, or other electrical products.
