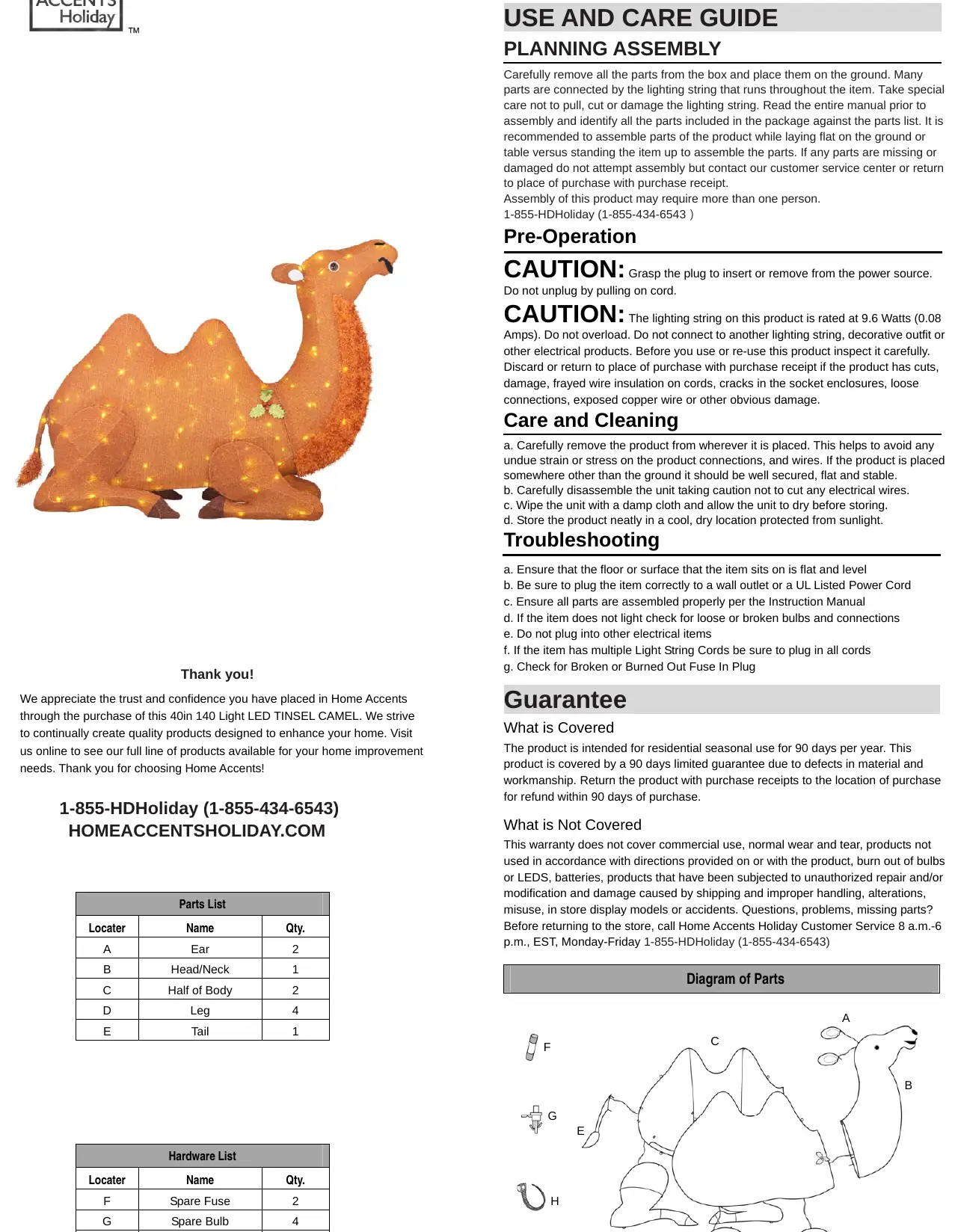

Assembly Instructions for Home Accents Holiday 40in 140 Light LED Tinsel Camel

Important Information

This guide provides instructions for the Home Accents Holiday 40in 140 Light LED Tinsel Camel (Model 22RT2072214). Before beginning assembly, carefully remove all parts from the box and identify them against the parts list. It is recommended to assemble the product while laying flat on the ground or a table. Assembly may require more than one person.

Assembly Instructions

Follow these steps to assemble your decoration:

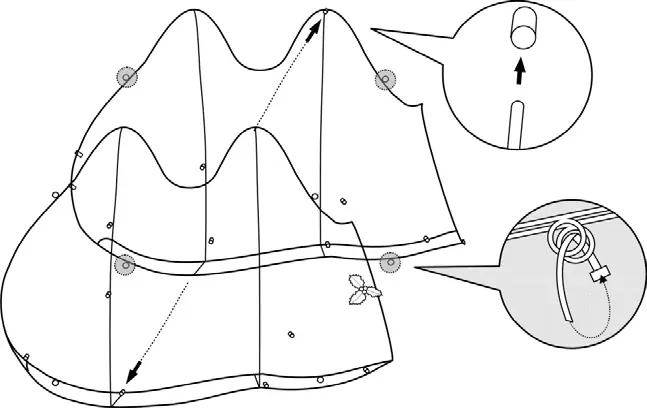

Step 1: Assembling the Body

Align the two halves of the body (C) with each other. Insert the connecting rods on one half into the connecting holes on the other half and fasten them at the connecting loops using the provided Plastic Ties (H).

Step 2: Assembling the Legs to the Body

Insert the connecting rods on each leg (D) into the matching connecting holes on the underside of the body (C). Secure the connections using the Plastic Ties (H).

Step 3: Assembling the Head/Neck to the Body

Attach the connecting hooks on the top back of the head/neck (B) to the top of the front of the body (C). Align the connecting rods on the head/neck (B) with the metal frame opening on the body (C) and fasten them together at the connecting loops using the Plastic Tie (H).

Step 4: Assembling the Ears and Tail

Insert the connecting rods on the bottom of each ear (A) into the matching connecting holes on the head (B). Insert the connecting rods on the tail (E) into the matching connecting holes on the body (C).

Step 5: Assembling the Ground Stakes

Insert the ground stakes (I) over the metal frame of each leg and push them firmly into the ground.

Safety and Pre-Operation

• Power Source: Grasp the plug to insert or remove from the power source; do not unplug by pulling on the cord.
• Electrical Load: The lighting string is rated at 9.6 Watts (0.08 Amps). Do not overload.
• Compatibility: Do not connect to another lighting string, decorative outfit, or other electrical products.
• Inspection: Before use or re-use, inspect the product for cuts, damage, frayed wire insulation, cracks in socket enclosures, loose connections, or exposed copper wire. Discard if damaged.

Care and Cleaning

• Carefully remove the product from its location to avoid strain on connections and wires.
• If placed somewhere other than the ground, ensure it is well-secured, flat, and stable.
• Carefully disassemble the unit, taking caution not to cut any electrical wires.
• Wipe the unit with a damp cloth and allow it to dry before storing.
• Store the product neatly in a cool, dry location protected from sunlight.

Troubleshooting

• Ensure the floor or surface is flat and level.
• Ensure the item is plugged correctly into a wall outlet or a UL Listed Power Cord.
• Verify all parts are assembled properly according to the manual.
• If the item does not light, check for loose or broken bulbs and connections.
• If the item has multiple light string cords, ensure all are plugged in.
• Check for a broken or burned-out fuse in the plug.

Warranty Information

This product is intended for residential seasonal use for 90 days per year and is covered by a 90-day limited guarantee due to defects in material and workmanship. The warranty does not cover commercial use, normal wear and tear, products not used in accordance with directions, burned-out bulbs or LEDs, batteries, unauthorized repairs, or damage caused by shipping, improper handling, or accidents.
