Assembly Instructions for Home Accents Holiday 7 ft Icicle Shimmer LED Stacked Snowmen

Important Information

This guide provides instructions for the assembly and maintenance of the 7 ft Icicle Shimmer LED Stacked Snowmen. Please read the entire manual before beginning assembly. It is recommended to assemble the product on a flat surface or table rather than standing it up. Assembly may require more than one person.

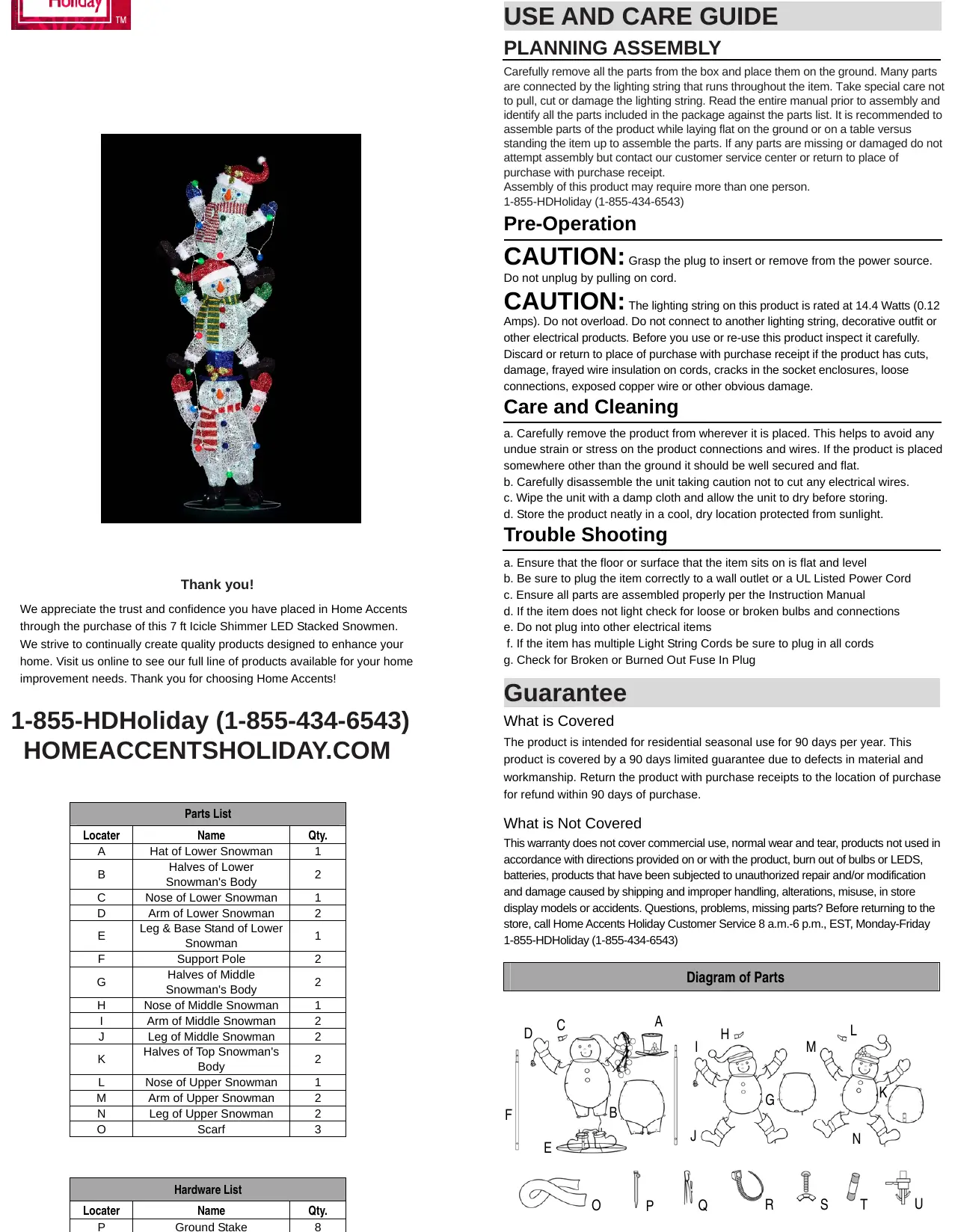

Parts List

Before starting, identify all parts included in the package:

• Snowman Components: Hat (A), Lower Body Halves (B), Lower Nose (C), Lower Arms (D), Lower Leg & Base Stand (E), Support Poles (F), Middle Body Halves (G), Middle Nose (H), Middle Arms (I), Middle Legs (J), Upper Body Halves (K), Upper Nose (L), Upper Arms (M), Upper Legs (N), Scarves (O).
• Hardware: Ground Stakes (P), Anchoring Strings (Q), Plastic Ties (R), Bolts & Wingnuts (S), Spare Fuses (T), Spare Bulbs (U).

Assembly Instructions

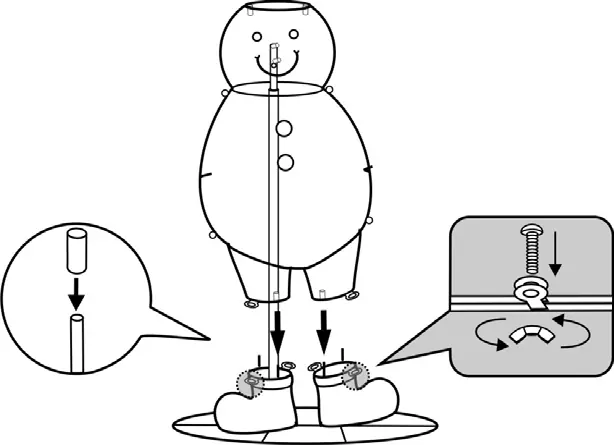

1. Base Assembly: Insert the first Support Pole (F) through the left foot of the Base Stand (E) and secure with the locking pin.
2. Lower Snowman: Place the front portion of the Lower Body (B) on the pole. Insert the feet rods into the base and fasten with Bolt & Wingnut (S).
3. Body Assembly: Align the back and front body portions (B) and fasten with Plastic Ties (R).
4. Nose and Arms: Attach the Nose (C) to the face and Arms (D) to the sides using Plastic Ties (R).
5. Hat and Second Pole: Attach the second Support Pole (F) through the Hat (A) and stack it onto the first pole. Secure with the locking pin.

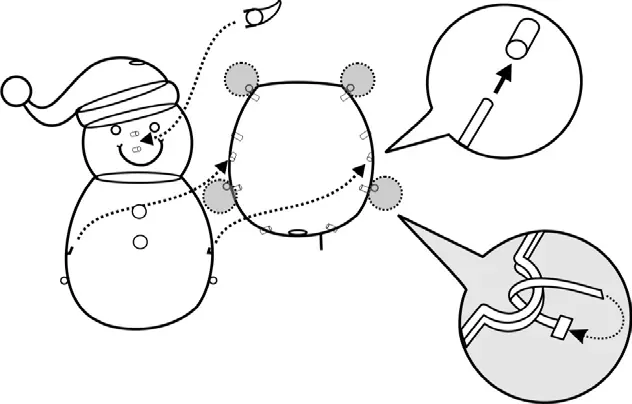

6. Middle Snowman: Assemble the Middle Snowman (G) by attaching the Nose (H), Arms (I), and Legs (J) using Plastic Ties (R). Attach the Middle Snowman to the Lower Snowman by setting it through the second support pole and inserting rods into the Hat (A) and Left Hand (D) of the Lower Snowman.

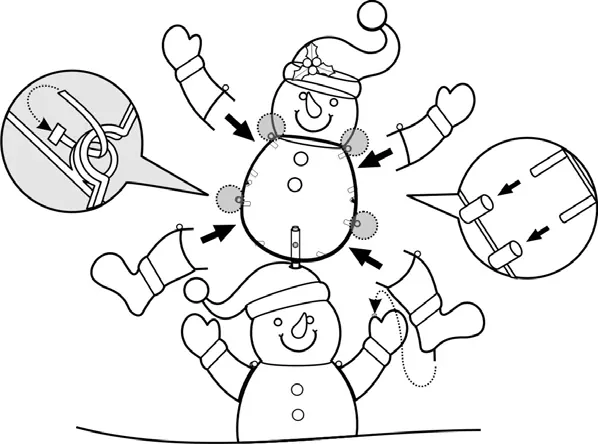

7. Upper Snowman: Insert the short connecting pole into the Upper Body (K) and attach to the top of the stacked support pole. Assemble the Nose (L), Arms (M), and Legs (N) using Plastic Ties (R).
8. Finishing Touches: Wrap the Scarves (O) around each snowman's neck. Connect the three lighting strings end-to-end.
9. Anchoring: Hook the Anchoring Strings (Q) to the Upper Snowman. Attach the Ground Stakes (P) to the strings and secure into the ground. Place the remaining stakes over the metal frame corners on the base.

Pre-Operation and Safety

CAUTION: Always grasp the plug to insert or remove from the power source; do not pull on the cord. The lighting string is rated at 14.4 Watts (0.12 Amps). Do not overload or connect to other electrical products. Inspect the product for cuts, damage, frayed wire insulation, or loose connections before use. Discard if any damage is found.

Care and Cleaning

• Carefully remove the product from its location to avoid strain on connections.
• If placed off the ground, ensure it is well-secured and flat.
• Disassemble carefully, ensuring no electrical wires are cut.
• Wipe the unit with a damp cloth and allow it to dry before storing.
• Store in a cool, dry location protected from sunlight.

Troubleshooting

• Ensure the floor or surface is flat and level.
• Verify the item is plugged correctly into a wall outlet or UL Listed Power Cord.
• Check that all parts are assembled properly.
• If the item does not light, check for loose or broken bulbs and connections.
• Ensure all light string cords are plugged in.
• Check for a broken or burned-out fuse in the plug.

Warranty

The product is intended for residential seasonal use for 90 days per year. It is covered by a 90-day limited guarantee due to defects in material and workmanship. Return the product with the purchase receipt to the place of purchase for a refund within 90 days.
