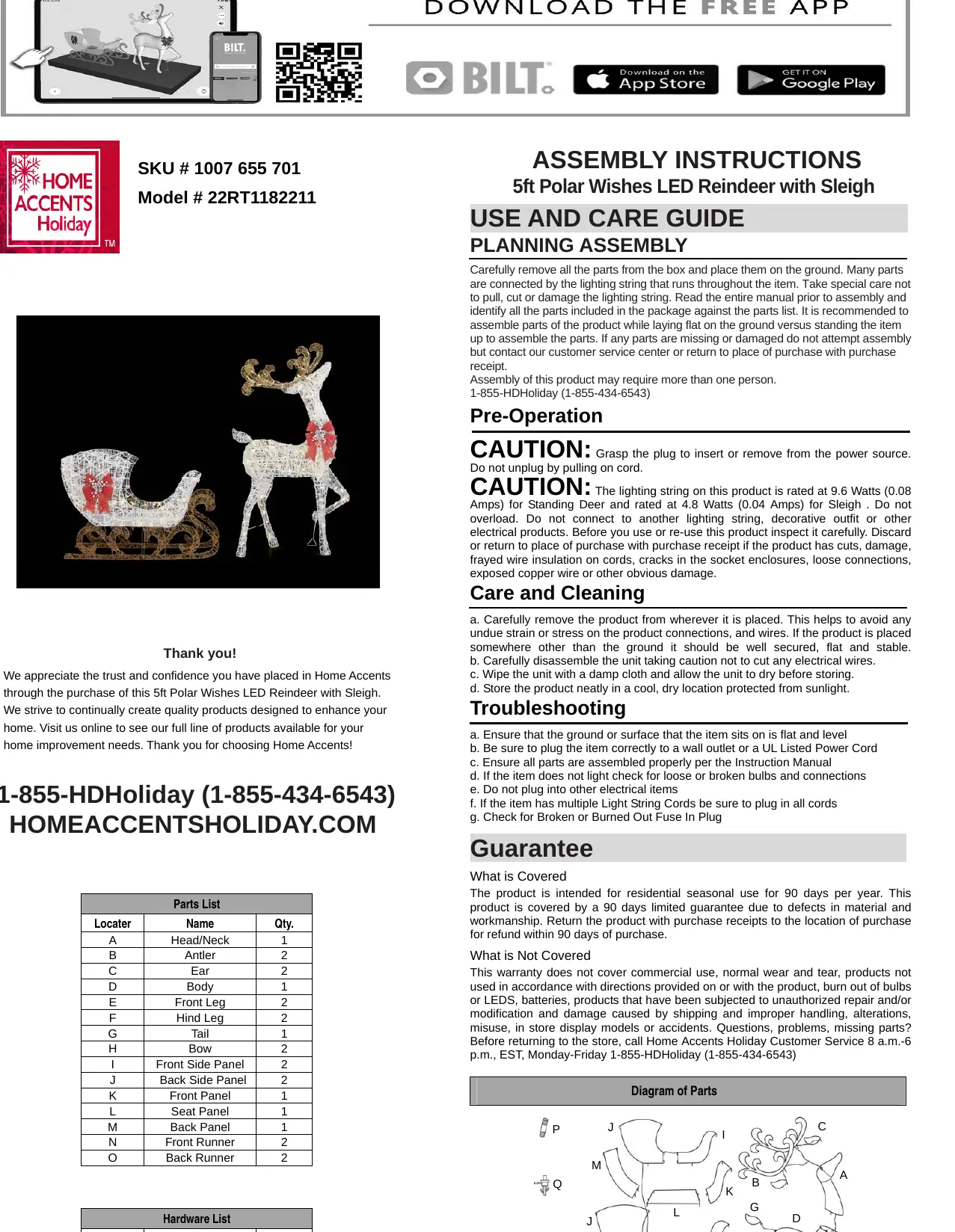

Assembly Instructions for Home Accents Holiday 5ft Polar Wishes LED Reindeer with Sleigh

Important Information

This document provides assembly and care instructions for the 5ft Polar Wishes LED Reindeer with Sleigh. Please read the entire manual before beginning assembly. It is recommended to assemble the product while laying flat on the ground. Assembly may require more than one person. Ensure you do not pull, cut, or damage the lighting string during assembly.

Parts List

Before starting, identify all parts included in the package:

• A: Head/Neck (1)
• B: Antler (2)
• C: Ear (2)
• D: Body (1)
• E: Front Leg (2)
• F: Hind Leg (2)
• G: Tail (1)
• H: Bow (2)
• I: Front Side Panel (2)
• J: Back Side Panel (2)
• K: Front Panel (1)
• L: Seat Panel (1)
• M: Back Panel (1)
• N: Front Runner (2)
• O: Back Runner (2)
• Hardware: Spare Fuse (4), Spare Bulb (6), Plastic Tie (30), Ground Stake (8)

Assembly Instructions

Deer Assembly

1. Legs and Tail: Insert metal connecting rods on the top of each Leg (E,F) into the underside of the Body (D) and fasten with Plastic Ties (R). Insert the hooked end of the metal bars into the metal nut on the opposite leg. Insert the Tail (G) into the rear of the Body (D).
2. Head/Neck: Insert connecting rods on the bottom of the Head/Neck (A) into the top front of the Body (D) and fasten with Plastic Ties (R).
3. Antlers and Ears: Insert connecting rods on Antlers and Ears (B,C) into the top of Head (A). Note: Ears go to the outside of the Antlers.
4. Bow and Stakes: Twist wires on the back of the Bow (H) through the body material to secure. Insert Ground Stakes (S) over the metal frame at each hoof and into the ground.

Sleigh Assembly

1. Runners and Seat: Insert connecting rods on the front edge of Back Runners (O) into the back edge of Front Runners (N). Attach metal bars to the inside of the opposite runner. Insert connecting rods of the Seat Panel (L) into the runners and secure with Plastic Ties (R).
2. Side Panels: Insert connecting rods on the back edge of Front Side Panels (I) into the front edge of Back Side Panels (J). Insert rods on the bottom of the side panels into the runners and fasten with Plastic Ties (R).
3. Front and Back Panels: Insert connecting rods of Front and Back Panels (K,M) into the Seat Panel (L) and Side Panels (I,J), then fasten with Plastic Ties (R).
4. Bow and Stakes: Secure the Bow (H) to the side of the sleigh using the tie wires. Insert Ground Stakes (S) over the metal frame at the four corners of the sleigh runners and into the ground.

Care and Cleaning

To maintain the product:

• Remove the product carefully from its location to avoid strain on connections.
• If placed off the ground, ensure it is well secured, flat, and stable.
• Disassemble carefully, taking caution not to cut electrical wires.
• Wipe with a damp cloth and allow to dry before storing.
• Store in a cool, dry location protected from sunlight.

Troubleshooting

• Ensure the surface is flat and level.
• Verify the item is plugged correctly into a wall outlet or UL Listed Power Cord.
• Check that all parts are assembled properly.
• If the item does not light, check for loose or broken bulbs and connections.
• Check for a broken or burned-out fuse in the plug.

Guarantee

The product is intended for residential seasonal use for 90 days per year and is covered by a 90-day limited guarantee due to defects in material and workmanship. This warranty does not cover commercial use, normal wear and tear, unauthorized repairs, or damage caused by shipping, misuse, or accidents.
